Specification
AgeRangeDescription : Kid
AutoPartPosition : rear
Brand : Yahboom
BulletPoint : ARRMA 1/8 Diffuser Painted: VENDETTA, ARA480054
BulletPoint1 : High torque dual-axis fixation: Yahboom's DC6.0-8.4V servo has a high torque of 35KG.CM, and is a dual-axis design. The power output shaft is equipped with an auxiliary fixed shaft, so it will not shake even when there is power.
BulletPoint2 : Metal middle shell and stainless steel bearings: In order to solve the problem of high torque and easy gear slipping or jamming, we use stainless steel gears and bearings, which are more wear-resistant than copper ones, and use a black oxidized metal middle shell to speed up the heat dissipation of the steering gear. Compared with ordinary servo, it has a longer service life

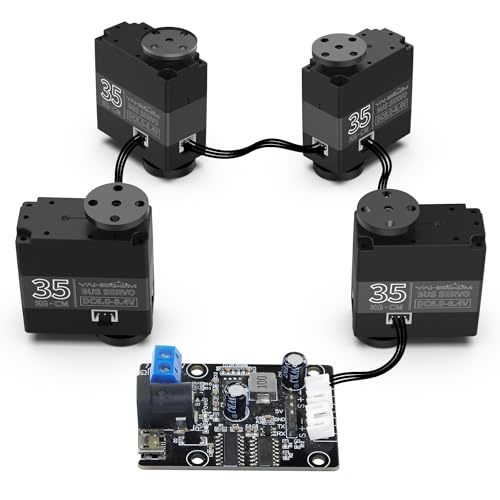

BulletPoint3 : Three-port serial bus servo: 3pin-HY2.0 anti-reverse interfaces are designed on the left, right and top of the servo, which can connect multiple servo servos in series and have strong overall operability.
BulletPoint4 : ID identification, bus communication: Each steering gear can be set with an ID number for steering gear identification. Single bus communication is used between the controller and the servo. The user can assign an ID number to each servo, and the instructions issued by the controller contain ID information. Only the servo that matches the ID number can completely receive the corresponding instructions and perform actions according to the instructions.
BulletPoint5 : High-precision potentiometer, angle readback: The steering gear uses an imported high-precision potentiometer as angle feedback =, supporting angle readback. It can quickly read the angle of the steering gear and capture the position of the robot joints, which greatly reduces the difficulty of designing robots and robotic arms.
Color : Black
CompatibleDevices : Computers (PCs, laptops, tablets), microcontrollers (Arduino, Raspberry Pi models)
CompatibleWithVehicleType : Car
ConnectivityTechnology : USB, Serial
Edition : 35KG bus servo*4-debug board
EducationalObjective : Color Recognition
ExteriorFinish : Gloss Black/Matte Red Painted Finish
ExternallyAssignedProductIdentifier : 5052127041454
ExternallyAssignedProductIdentifier1 : 0724626339534
ExternallyAssignedProductIdentifier2 : 724626339534
ExternallyAssignedProductIdentifier3 : 0787793386992
ExternallyAssignedProductIdentifier4 : 04531028117945
GpsrSafetyAttestation : 1
IncludedComponents : 1/8 Diffuser Painted: VENDETTA
IncludedComponents1 : 35kg servo
IncludedComponents2 : Steering gear debugging board
IndoorOutdoorUsage : outdoor
InstallationType : Screw-In, Bolt-On
IsAssemblyRequired : 1
ItemName : Yahboom 35KG Intelligent Serial Bus Servo 270° High Torque Serial Port Motor Dual-axis Servo for Robot Gimbal Robotic Arm with Steering Gear Debugging Board (35KG bus servo*4-debug board)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 5 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-servos
Manufacturer : Yahboom
ManufacturerMaximumAge : 6
ManufacturerMinimumAge : 6
Material : Metal
Material1 : Plastic
Material2 : Aluminum
ModelName : 35kg servo
ModelNumber : 35kg servo
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
OperatingSystem : Windows, Linux
OperationMode : Manual
PackageLevel : unit
PartNumber : 35kg servo
Pattern : Solid
PowerSourceType : battery
ProcessorCount : 1

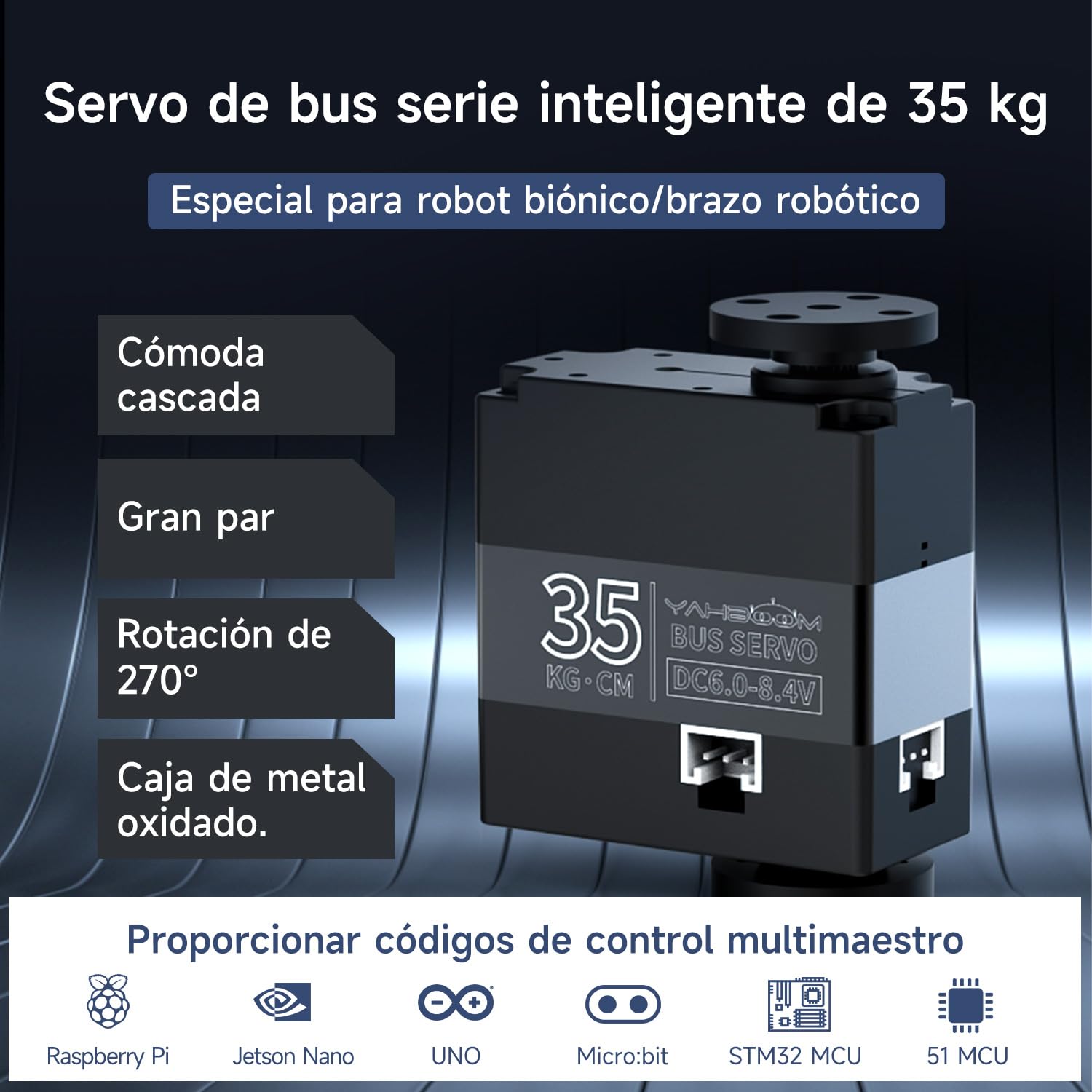

ProductDescription : 35kg serial bus servo is a high-performance steering gear control device, it is designed to meet the needs of complex mechanical motion. The rotation range is 0~270°, with a power output shaft and an auxiliary fixed shaft. Built-in high-precision potentiometers, stainless steel gears and bearings, not only ensures the accuracy of position control, but also increases the durability of the servo. There are three HY2.0-3Pin interfaces on it, users can complete wiring from multiple angles, and with the help of serial bus communication technology, multiple servos can be controlled on the same bus at the same time. Connect it to computer by Yaboom drive board, users can adjust angle of servo in real time through the PC software, achieve more precise control in projects such as robotic arms and bionic robots.
ProductSiteLaunchDate : 2023-10-20T09:43:40.428Z
RequiredProductComplianceCertificate : CPSIA
Size : Small
StreetDate : 2021-10-21T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Children
TargetAudienceKeyword1 : Men
TargetAudienceKeyword2 : Women
TargetAudienceKeyword3 : Unisex Adult
TargetGender : unisex
Theme : Vehicle
TotalUsbPorts : 3
UnitCount : 1
UnspscCode : 26111500
