Specification
AgeRangeDescription : adult
Brand : LHXEQJAM
BulletPoint : Signal Amplifiers
Color : One Color
ExternallyAssignedProductIdentifier : 7540071944108

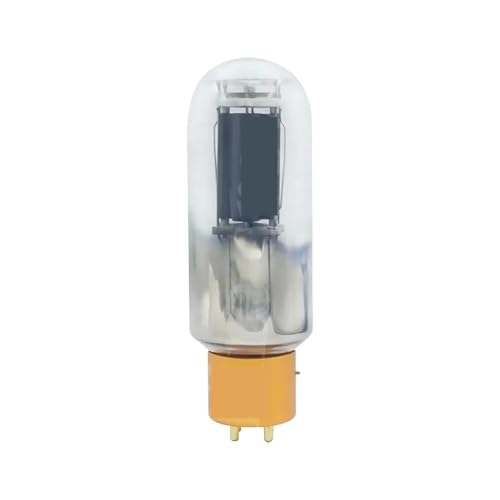

ItemName : 845 Tube 845-TII Collector's Edition Amplifier DIY Package(1PCS)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : satellite-tv-signal-amplifiers
Manufacturer : LHXEQJAM
ModelName : LHXEQJAM
ModelNumber : LHXEQJAM
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : LHXEQJAM
ProductDescription : Signal Amplifiers
845-TII is a directly heated thoriated tungsten cathode triode, class A1 and AB1
Heater
Uf------------------10V
If ------------------- 3.25 A
Maximum Ratings
Ua----------------1250V
Pa--------------75W
Output power (maximum signal)-------------150 W
Ia(max)------------------120mA;
Direct interelectrode capacitance
Input---------------6 PF
Output---------------4.5 PF
Grid to plate-------------14.5 PF
Static parameters
Voltage-------------------1250V
-Ug----------------200V
Ia---------------------80 mA
Transconductance------------------3 mA/V
ri--------------------1.7 K
Uh----------5
RL---------------------3.4 K
Ug(pk)--------------------69 V
Output-----------15 W
Recommended operating conditions (reference values)
A1 level. Single tube:
Voltage source ———— 1000 1000 1250 volts
-Ug--- 145 155 209 V
RL-----6 9 16 K
Current------90 65 52 mA
Transconductance -----3.1 - - mA/V
Peak voltage --- 110 148 V
Mileage------1.7 1.9 2.1 K
Pout----24 21 24 W
Push-pull type. Class AB1:
Ua----------------- 800 1000 1000 1250 V
-Ug---------------- 125 170 175 225 volts
RL------------------ 4.5 4.6 4.6 6.6 K
Ia--------------------------------80 70 40 40 mA
Ug(pk)----------------177 240 - - V
Ia(mAx.sig)---------170 230 230 240 mA
Pout----------------40 75 75 115 W

Channels: 1
Model: 845-TII Collector's Edition
Maximum power per channel: No power supply
ProductSiteLaunchDate : 2025-06-25T06:05:22.614Z
Size : 1PCS
UnitCount : 1
