Specification
Brand : JMT
BulletPoint : 1070+ Miles hdtv antennas high definition
BulletPoint1 : RF limiters are used for input protection of low power receiving equipment such as Compatible with spec trum analysers,pre-low noise amplifiers, SDR receivers, etc.
BulletPoint2 : RF limiters can effectively resist ESD damage. It can also be used for input protection of short-wave receivers.
BulletPoint3 : Insertion loss: < 0.2dB @1GHz/0dBm, < 2dB @1~3GHz/0dBm, < 3dB @3~6GHz/0dBm, Refer to the measured S21 curve.
BulletPoint4 : 1dB limit power: < 0dBm/10dBm/20dBm/30dBm/36dBm.
BulletPoint5 : Impedance: 50 Ohms. Maximum input power: 20dBm.
BulletPoint6 : Measured S21 insertion loss: 0dBm limiter frequency range up to 6GHz.
Color : 0dBm
CustomerPackageType : Standard Packaging
DsaResponsiblePartyAddress : info@sino-sear.com
ExternallyAssignedProductIdentifier1 : 040003317613
ExternallyAssignedProductIdentifier10 : 0020572034180
ExternallyAssignedProductIdentifier2 : 0040003317613
ExternallyAssignedProductIdentifier3 : 0663862203134
ExternallyAssignedProductIdentifier4 : 0654936418929
ExternallyAssignedProductIdentifier5 : 887511618531
ExternallyAssignedProductIdentifier6 : 0887511711805
ExternallyAssignedProductIdentifier7 : 0031212023808
ExternallyAssignedProductIdentifier8 : 0006254782426
ExternallyAssignedProductIdentifier9 : 0887511618531
IncludedComponents : 1

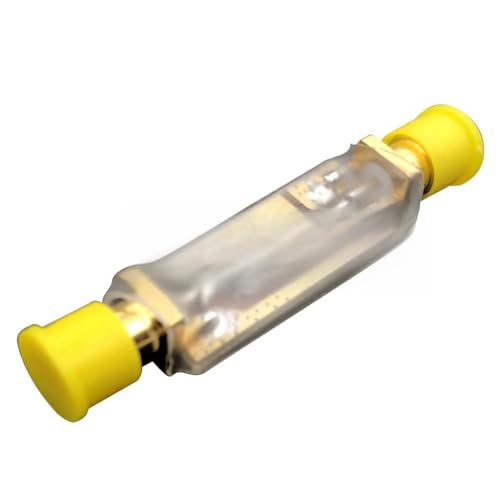

ItemName : JMT PIN Diode SMA RF Limiter 10M-6GHz with SMA Interface for Low Power Input Protection Compatible with Spec Trum Analysers, Pre-Low Noise Amplifier, SDR Receiver (0dBm)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : satellite-tv-signal-amplifiers
Manufacturer : JMT
Material : Nickel plated
MaximumRange : 104845 meters
MaximumSupplyVoltage : 5 volts
ModelNumber : EVO1-5-U/U
MountingType : Surface Mount
NumberOfBoxes : 1
NumberOfChannels : 5
NumberOfItems : 1
PackageLevel : unit
PackageTypeName : box
PartNumber : N54238
PowerSourceType : Corded Electric
ProductDescription : JMT PIN Diode SMA RF Limiter 10M-6GHz with SMA Interface for Low Power Input Protection Compatible with Spec trum Analysers, Pre-low Noise Amplifier, SDR Receiver


Introduction
 RF limiters are used for input protection of low power receiving equipment such as Compatible with spec trum analysers,pre-low noise amplifiers, SDR receivers, etc. They can effectively resist ESD damage. It can also be used for input protection of short-wave receivers.
This product contains a strong aluminium alloy shielding shell, no leakage, no interference,small and easy to use, is the radio frequency, microwave technology experiments of the standing device.

Index parameters
1, Model: Limiter 0dBm-10dBm-20dBm-30dBm-36dBm
2、Impedance: 50 Ohms
3、Insertion loss: < 0.2dB @1GHz/0dBm
             < 2dB @1~3GHz/0dBm
             < 3dB @3~6GHz/0dBm
              Refer to the measured S21 curve
4、Maximum input power: 20dBm
5, 1dB limit power: < 0dBm/10dBm/20dBm/30dBm/36dBm
6、Interface: SMA
7、Dimensions without case: 10 * 25 (mm) without protruding SMA
8, with the shell size - length, width and height: 45 * 25 * 12 (mm) does not include the protruding SMA
Measured S21 insertion loss (0dBm limiter frequency range up to 6GHz)

ProductSiteLaunchDate : 2025-05-14T06:01:24.172Z
Size : 8" Inch
StreetDate : 2022-08-22T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SupplyCurrent : 90 milliamps
UnspscCode : 32111500
Voltage : 5 volts
WarrantyDescription : 5
