Specification
Brand : Earth People Technology
BulletPoint1 : Altera 5M570 CPLD with 440 MacroCells. Full Open Source software allows the user to create unique projects for specific applications. Detailed user manual and data sheet describes the board.
BulletPoint2 : The MAX V CPLD is a great chip to learn programmable logic with. The MAX V is a complete chip programmed using JTAG. The chip can be re-programmed thousands of times making it perfect for development projects. The UnoProLogic board comes complete with all regulators, oscillators and connectors to provide a complete development system for beginners.
BulletPoint3 : On Board Four Channel ADC with 300KB/sec Sample Rate. Inputs/Outputs: 24 -- 5 Volt tolerant. I/O's are protected with 74LVCH4245 8-Bit Bus transceivers. USB Interface: 480 Mbps data transfers. User code will transparently connect with the ActiveHost API running on the Windows API. All software is Open Source
BulletPoint4 : JTAG Programmer: The 5M570 is programmed by the FT2232H Chip Through the Quartus Software
BulletPoint5 : Complete Development Kit with tutorials and source code. Please visit the UnoLogic product page under the earthpeopletechnology website to access all schematics, user manual, data sheets and project files.
Color : AVR Programmer USB AVRISP XPII
CompatibleDevices : Microcontrollers, digital devices
ConnectivityTechnology : USB
CustomerPackageType : Standard Packaging
DataTransferRate : 12 megabits_per_second
ExternallyAssignedProductIdentifier1 : 720825491929
ExternallyAssignedProductIdentifier2 : 0720825491929
ExternallyAssignedProductIdentifier3 : 657419923675
ExternallyAssignedProductIdentifier4 : 0779172279186
ExternallyAssignedProductIdentifier5 : 0615311268607
ExternallyAssignedProductIdentifier6 : 0657419923675
ExternallyAssignedProductIdentifier7 : 00615311268607
ExternallyAssignedProductIdentifier8 : 00657419923675
IncludedComponents : 24 Inputs/Outputs, 4 Green LEDs, 2 push button switches, 4 Channel ADC

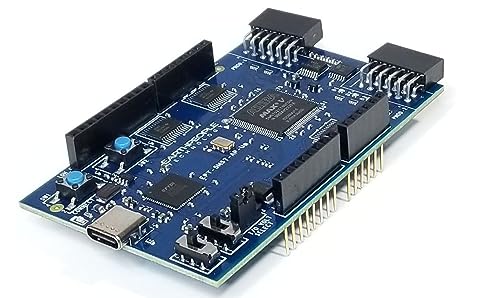

ItemName : Altera MAX V CPLD Development Board - UnoProLogic
ItemPackageDimensions_Height : 19.2 centimeters
ItemPackageDimensions_Length : 5.9 centimeters
ItemPackageDimensions_Width : 18.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : single-board-computers
Manufacturer : Earth People Technology
MaximumDownstreamDataTransferRate : 12 megabits_per_second
ModelName : UnoProLogic
ModelNumber : UnoProLogic2
ModemType : cable
NumberOfItems : 3
NumberOfPorts : 3
OperatingSystem : Windows
OperatingSystem1 : FreeRTOS
OperatingSystem2 : Linux
PartNumber : EPT-570-AP-U2
ProcessorCount : 4
ProductDescription :

The EPT USB-CPLD development system provides a flexible learning platform by combining a powerful Complex Programmable Logic Device with High Speed USB.

It is designed to provide an innovative method of developing and debugging programmable logic code.

It provides a high speed data transfer mechanism between any microcontroller (or any digital device) and a host PC.

The EPT USB-CPLD development system provides a convenient, user-friendly work flow by connecting seamlessly with Altera’s Quartus II software.

The user will develop the code in the Quartus environment on a Windows Personal Computer.

The programmable logic code is then loaded into the CPLD using only the Quartus Programmer software and a standard USB cable.

The programmer hardware is built in to the UnoProLogic.

The ActiveHost API provides a highly configurable communications interface between CPLD and host PC.

It connects transparently to the Active Transfer Library running inthe CPLD code.

Altera 5M570 CPLD

24 Inputs/Outputs compatible with 5 Votls

Four Green LEDs

Two push button switches

4 Channel ADC with 300KS/s

ProductSiteLaunchDate : 2013-09-04T07:07:40.263Z
SpecificUsesForProduct : programming
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TotalUsbPorts : 1
UnspscCode : 43230000
WarrantyDescription : 30 days
WirelessCommStandard : bluetooth
