Specification
AspectRatio : 4:3
Brand : Orange Pi
BulletPoint1 : Orange Pi 5B uses a new generation of 8-core 64-bit processors from Ruixin Micro-RK3588S, specifically quad-core A76+quad-core A55. It adopts an 8nm process design, with a main frequency up to 2.4GHz. It integrates an ARM Mali-G610 MP4 GPU, built-in high-performance 3D and 2D image acceleration modules, and built-in AI accelerator NPU with up to 6 Tops of computing power. It has 16GB/32GB (LPDDR4/4x) and 256GB eMMC, dual band Wi-Fi6, BT5.0, and up to 8K display processing capabilities.
BulletPoint2 : Orange Pi 5B Single Board Computer has a variety of interfaces, including HDMI output, Type-C, USB3.0, USB2.0, RJ45 gigabit network interface, TF card socket, 3.5mm headphone jack, MIPI LCD interface, MIPI Camera interface, multi-functional 26 Pin expansion interface, etc
BulletPoint3 : Orange Pi 5B Mini PC can be widely used in high-end tablet, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering all AIoT industries.
BulletPoint4 : Orange Pi 5B microcontroller open source board mini computer supports the operating system Orangepi OS officially developed by Orange Pi, as well as operating systems such as Android 12, Debian 11, Ubuntu 22.04, and Ubuntu 20.04.
BulletPoint5 : Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch.Pretty much anything else, because Orange Pi is open source.
ChipsetType : Processor
Color : OPi 5B 16G256G
CompatibleDevices : Cameras with compatible interfaces
ConnectivityTechnology : HDMI
ConnectivityTechnology1 : Bluetooth
ConnectivityTechnology2 : Wi-Fi
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 701715556072
ExternallyAssignedProductIdentifier2 : 0701715556072
GraphicsCardInterface : integrated
GraphicsCoprocessor : Integrated Graphics
GraphicsDescription : Dedicated
HardwareInterface : vga
HasColorScreen : 1
HumanInterfaceInput : keyboard
ImageContrastRatio : 2000:1
IncludedComponents : CD
IncludedComponents1 : Speakers
IncludedComponents2 : Keyboard
IncludedComponents3 : Mouse
IncludedComponents4 : Webcam
IncludedComponents5 : RGB Lighting

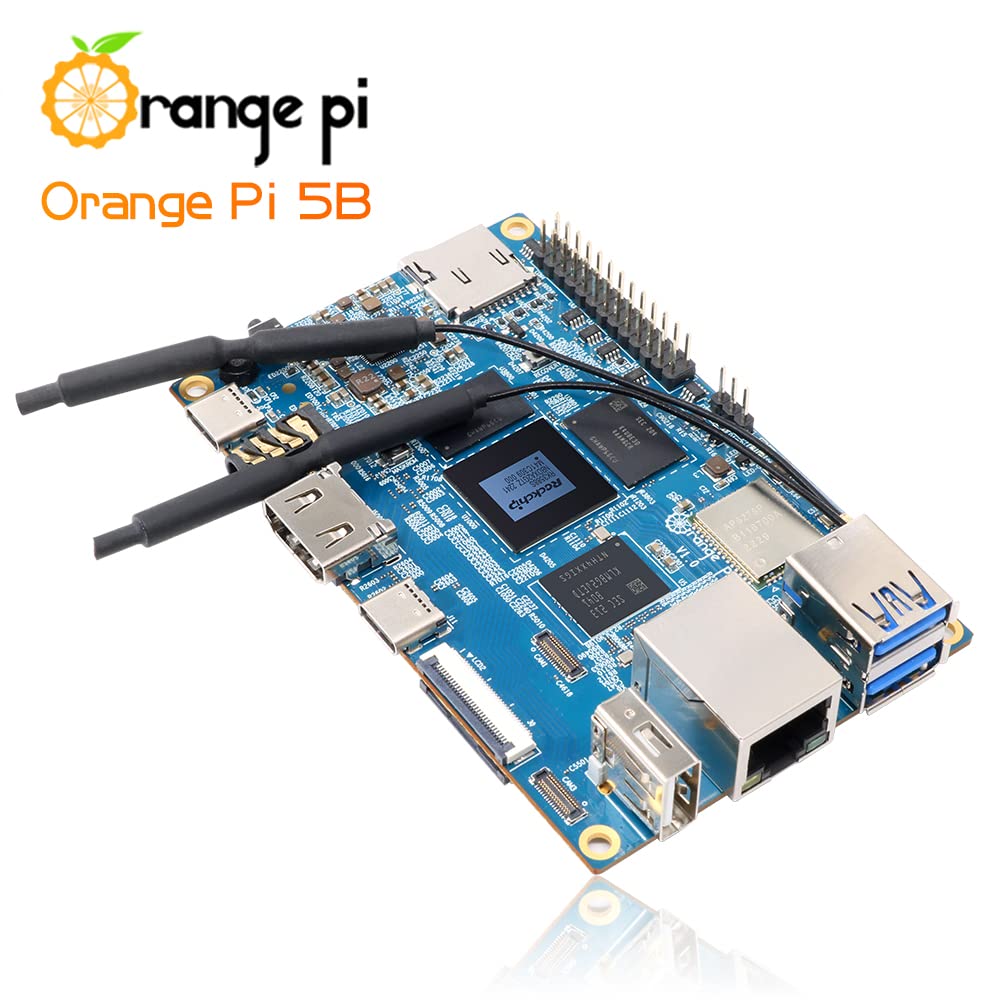

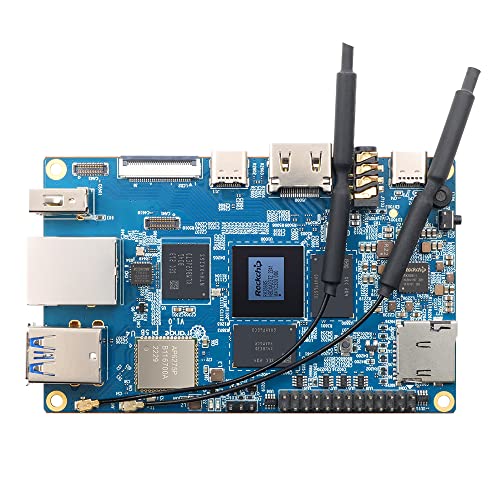

ItemName : Orange Pi 5B 16GB Rockchip RK3588S with 256GB eMMC 8 Core 64 Bit Wi-Fi6, BT5.0 Single Board Computer, 2.4GHz Frequency Open Source Board Run Orange Pi OS,Android,Debian,Ubuntu (Pi 5B 16G256G)
ItemPackageDimensions_Height : 13.4874 centimeters
ItemPackageDimensions_Length : 2.6924 centimeters
ItemPackageDimensions_Width : 8.1026 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : single-board-computers
KeyboardDescription : Standard, Wired Keyboard
KeyboardLayout : qwerty
MainPowerConnectorType : DC 5.5mm jack
Manufacturer : Shenzhen Xunlong Software CO.,Limited
Material : Polyvinyl Chloride
MemoryClockSpeed : 240 MHz
MemorySlotsAvailable : 1
MemorySpeed : 240 MHz
MemoryStorageCapacity : 256 GB
ModelName : Orange Pi 5B
ModelNumber : 15659-1
NativeResolution : 1600 x 1200
NumberOfItems : 1
NumberOfPorts : 3
OperatingSystem : Embedded
PartNumber : 15659-1
PersonalComputerDesignType : barebone
Platform : no_operating_system
PowerPlugType : type_a_2pin_na
ProcessorCount : 1
ProductDescription : Product Introduction:

Main control chip: Rockchip RK3588S (8nm LP process)

CPU: 8-core 64 bit processor; Typical large and small core architectures for 4-core Cortex-A76 and 4-core Cortex-A55, with a dominant frequency of 2.4GHz for large cores and 1.8GHz for small cores

GPU: Integrated ARM Mali-G610; Built-in 3D image engine and 2D image engine; Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2

NPU: built-in AI accelerator NPU with up to 6 Tops computing power, supporting INT4/INT8/INT16 hybrid computing

PMU: RK806-1
RAM: 16GB（LPDDR4/4x）
Storage: 256GB eMMC; MicroSD (TF) Card Slot
USB: USB3.0 * 1; USB2.0 * 2; Type-C (USB3.0) * 1

Video output: HDMI2.1, up to 8K @ 60Hz; DP1.4 (DisplayPort), with a maximum output resolution of 8K @ 30Hz; 2 * MIPI D-PHY TX 4 Lane, configurable up to 4K @ 60Hz

Camera: MIPI CSI 4 Lane; 2 * MIPI D-PHY RX 4 Lane
Audio CODEC: ES8388; 3.5mm headphone jack audio input/output; Input: onboard MIC; HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet
WIFI, BT module: Onboard WI-FI6+BT 5.0 module, WI-FI6 interface: PCIe, BT interface: PCM+UART
Expansion port: 26Pin double row pin; Supports DC 5V and 3.3V power output; Functional interfaces such as UART, PWM, I2C, SPI, CAN, and GPIO can be configured.
Key: 1 * MaskROM key, 1 * RECOVERY key, 1 * On/Off key
Power supply: Support Type-C power supply, 5V @ 4A
LED power indicator: red; Status indicator: green
Debug: 3Pin Debug Serial Port (UART)

Supported operating systems: Orange OS (Droid), Orange OS (Arch), Orange OS (OH), Debian 11, Ubuntu 22.04, Ubuntu 20.04, Android 12

Product size: 62mm * 100mm
Weight: 52g
ProductSiteLaunchDate : 2023-03-20T07:00:00.000Z
Resolution : 1600 x 1200
ScreenSurfaceDescription : Glossy
SpecificUsesForProduct : programming
Strands : Single Strand
SupplierDeclaredDgHzRegulation : not_applicable
SystemBusStandardSupported : SATA 3
SystemRamType : sram
TotalEthernetPorts : 1
TotalHdmiPorts : 1
TotalUsbPorts : 4
TotalVideoOutPorts : 1
UnspscCode : 43211516
VideoOutputInterface : VGA
Voltage : 3.3 volts
WarrantyDescription : No
WirelessCommunicationTechnology1 : Bluetooth
WirelessCommunicationTechnology2 : Wi-Fi
WirelessNetworkTechnology : wifi
