Specification
Brand : waveshare
BulletPoint : Price For: Each Manufacturer: Adafruit Industries Product Category: RFID Transponder Tools RoHS: Product: RFID Shield For Use With: Arduino Tool Is For Evaluation Of: PN532 Brand: Adafruit Description/Function: NFC/RFID controller shield Dimensions: 117.7 mm x 53.3 mm x 1.1 mm Frequency: 13.56 MHz Interface Type: I2C/SPI Packaging: Bulk
BulletPoint1 : E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display
BulletPoint2 : No backlight, keeps displaying last content for a long time even when power down
BulletPoint3 : SPI interface, for connecting with controller boards like for Raspberry Pi/Nucleo, etc.
BulletPoint4 : Ultra low power consumption, basically power is only required for refreshing;Onboard voltage translator, compatible with 3.3V/5V MCUs
BulletPoint5 : Resources: www.waveshare.com/wiki/1.54inch_e-Paper_Module_(B)
ChipsetType : Broadcom
CompatibleDevices : Raspberry Pi, STM32, Jetson Nano
CompatibleProcessorTypes : ARM-based processors used in Raspberry Pi models
ConnectivityTechnology : NFC
ExternallyAssignedProductIdentifier : 4260474032617
ExternallyAssignedProductIdentifier1 : 615311268485
ExternallyAssignedProductIdentifier2 : 0615311268485
ExternallyAssignedProductIdentifier3 : 720189972560
ExternallyAssignedProductIdentifier4 : 0700358509070
ExternallyAssignedProductIdentifier5 : 0711978441695
ExternallyAssignedProductIdentifier6 : 0720189972560
GraphicsCardInterface : integrated
IncludedComponents : 4 stackable long lead shield headers, ZIF programming socket, 16MHz crystal, ICSP header, necessary other parts
ItemName : Tri-Color 1.54 Inch E-Ink Display Module Three-Color Resolution 200x200 3.3v E-Paper Electronic Screen Panel with Embedded Controller SPI Interface Support for Raspberry Pi/STM32/Nucleo/Jetson Nano
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 1.6 centimeters
ItemPackageDimensions_Width : 5.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : single-board-computers
Manufacturer : waveshare
Material : PCB
MemorySlotsAvailable : 2
ModelName : 1.54inch e-Paper Module (B)
ModelNumber : RS1967
NumberOfItems : 1
NumberOfPorts : 1
OperatingSystem : Linux
OperatingSystem1 : Linux
OperatingSystem2 : FreeRTOS
PartNumber : 1.54inch E-Ink Module 200x200(B)
Platform : linux
ProcessorCount : 1
ProductDescription : Description

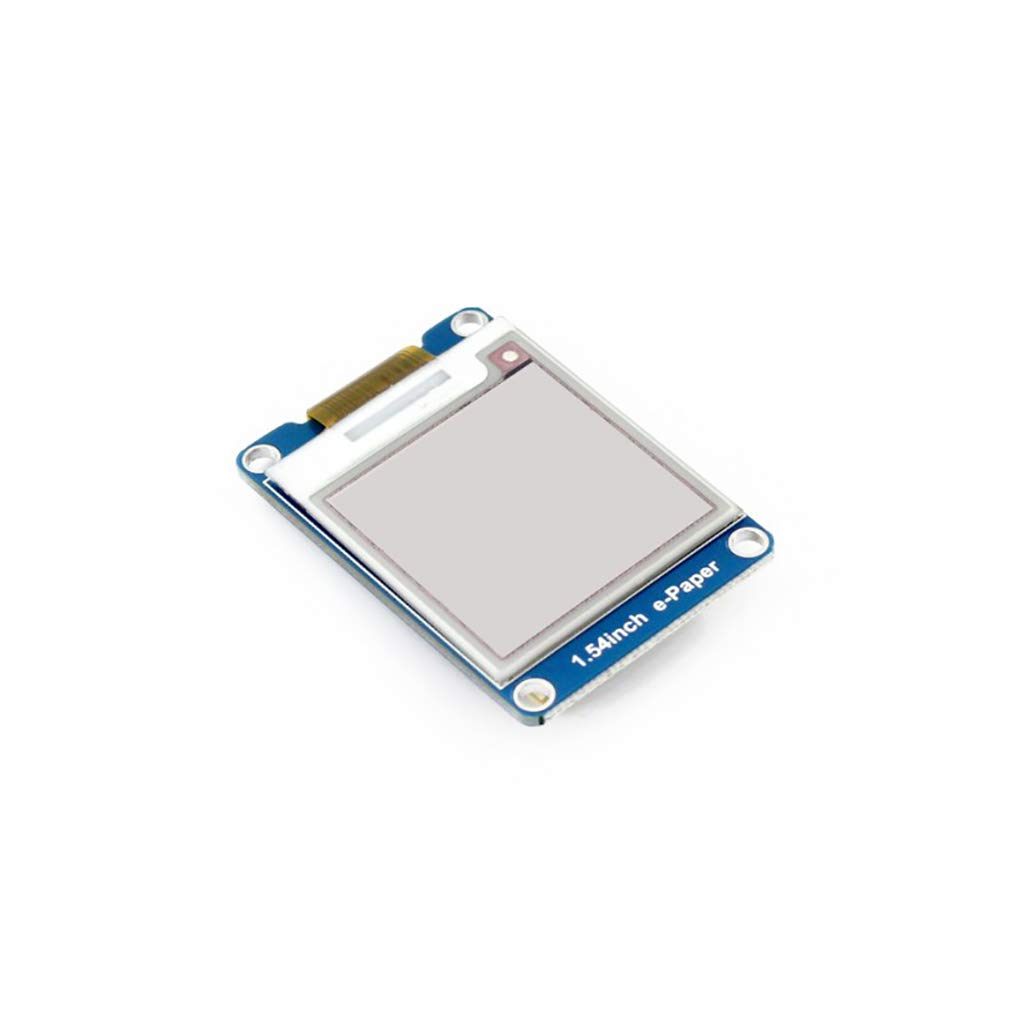

200x200, 1.54inch E-Ink display module, three-color, SPI interface
This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports red,
black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications
such as shelf label, industrial instrument, and so on.


Specifications

Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 48mm x 33mm
Display size: 27.6mm x 27.6mm
Dot pitch: 0.138 x 0.138
Resolution: 200 x 200
Display color: red,black, white
Grey level: 2
Full refresh time: 8s （Do not support partial refresh)
Refresh power: 26.4mW(typ.)
Standby power: <0.017mW
Viewing angle: >170°


Package Contains

1. 1.54inch e-Paper Module (B) x1
2. XH2.54 20cm 8Pin x1
ProductSiteLaunchDate : 2017-08-23T07:00:00.000Z
Size : 1.54inch E-Ink Module 200x200(B)
StreetDate : 2018-09-01T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
TotalUsbPorts : 4
UnspscCode : 43211900
WarrantyDescription : 1 year warranty
WirelessCommStandard : bluetooth
