Specification
Brand : DAVITU
BulletPoint1 : a.Clamshell structure burn in socket
BulletPoint2 : b.Adopting engineering material for socket structure, Strength is high ,lifetime is long
BulletPoint3 : c.Adopting import BeCu material for socket contact
BulletPoint4 : Spring ,thickening gold-plating surface ,impedance is small elasticity is good
BulletPoint5 : d.For 0.4mm pitch package
ExpectedBloomingPeriod : Spring
ExpectedPlantingPeriod : Spring
ExternallyAssignedProductIdentifier : 4793392400515
ExternallyAssignedProductIdentifier1 : 0737838434768
ExternallyAssignedProductIdentifier2 : 737838434768

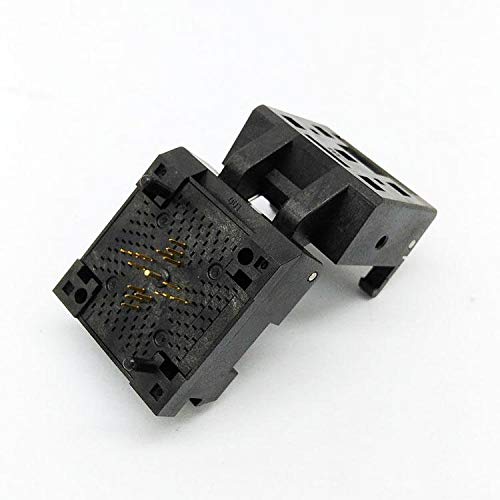

ItemName : Davitu Electrical Equipments Supplies - QFN16 MLF16 Burn in Socket IC Test Socket IC550-0164-005-G Pitch 0.5mm Chip Size 3*3 Flash Adapter Clamshell Programming Socket
ItemTypeKeyword : soic-sockets
Manufacturer : Aexit
Material : Other
ModelNumber : edd39b3cd1db904bb0680c1a116b8a
PartNumber : DVT-48E0C2E0D02417583D16FD07FAC61A4B
ProductDescription : QFN16 MLF16 WLCSP 16 Burn in Socket IC Test Socket IC550-0164-005-G Pitch 0.5mm Chip Size 3*3 Flash Adapter Clamshell Programming Socket
Features:
a.Clamshell structure burn in socket
b.Adopting engineering material for socket structure,
Strength is high ,lifetime is long
c.Adopting import BeCu material for socket contact
Spring ,thickening gold-plating surface ,impedance is small elasticity is good
d.For 0.4mm pitch package
e.Thru hole design
Material & Performance:
Ø socket Body: PEI
Ø Contacts:Beryllium Copper Alloy
Ø Contact Plating:Gold over Nickel
Ø Operation Force:2.0KG min, the more PINs the greater force
Ø Contact Resistance:50mΩ max
Ø Dielectric:700V AC for 1 minute
Ø Insulation Resistance:1,000MΩ500V DC
Ø Max Current Capacity : 1A
Ø Temperature Rating:-55℃~+175 ℃
Ø Life Span 15,000 Times (Mechanical)
Specification and Dimension :
a) Type : QFN16
b) Pin pitch : 0.5 mm
c) Pin Count : 16
d) Applicable IC Body Dimension : 3*3 mm

Item specifics:
Model number: QFN16 -0.5-CP01GT
Type: QFN MLF WLCSP
Pin: 16
Pin pitch: 0.5 mm
Applicable chip size: 3x3 mm
Structure: Clamshell Structure
Life span: 15000 times
