Specification
Brand : Reland Sun
BulletPoint : 1
BulletPoint1 : Module uses genuine high quality relay, normally open interface maximum load: AC 250V / 10A, DC 30V / 10A
BulletPoint2 : Using optocoupler chip isolation, strong drive capability, stable performance; trigger current 5mA
BulletPoint3 : Module can be set by jumper high or low trigger
BulletPoint4 : Fault-tolerant design, even if the control line is broken, the relay will not move
BulletPoint5 : The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
Color : One Color
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 6445039047109
ExternallyAssignedProductIdentifier1 : 0756552847883
ExternallyAssignedProductIdentifier2 : 756552847883

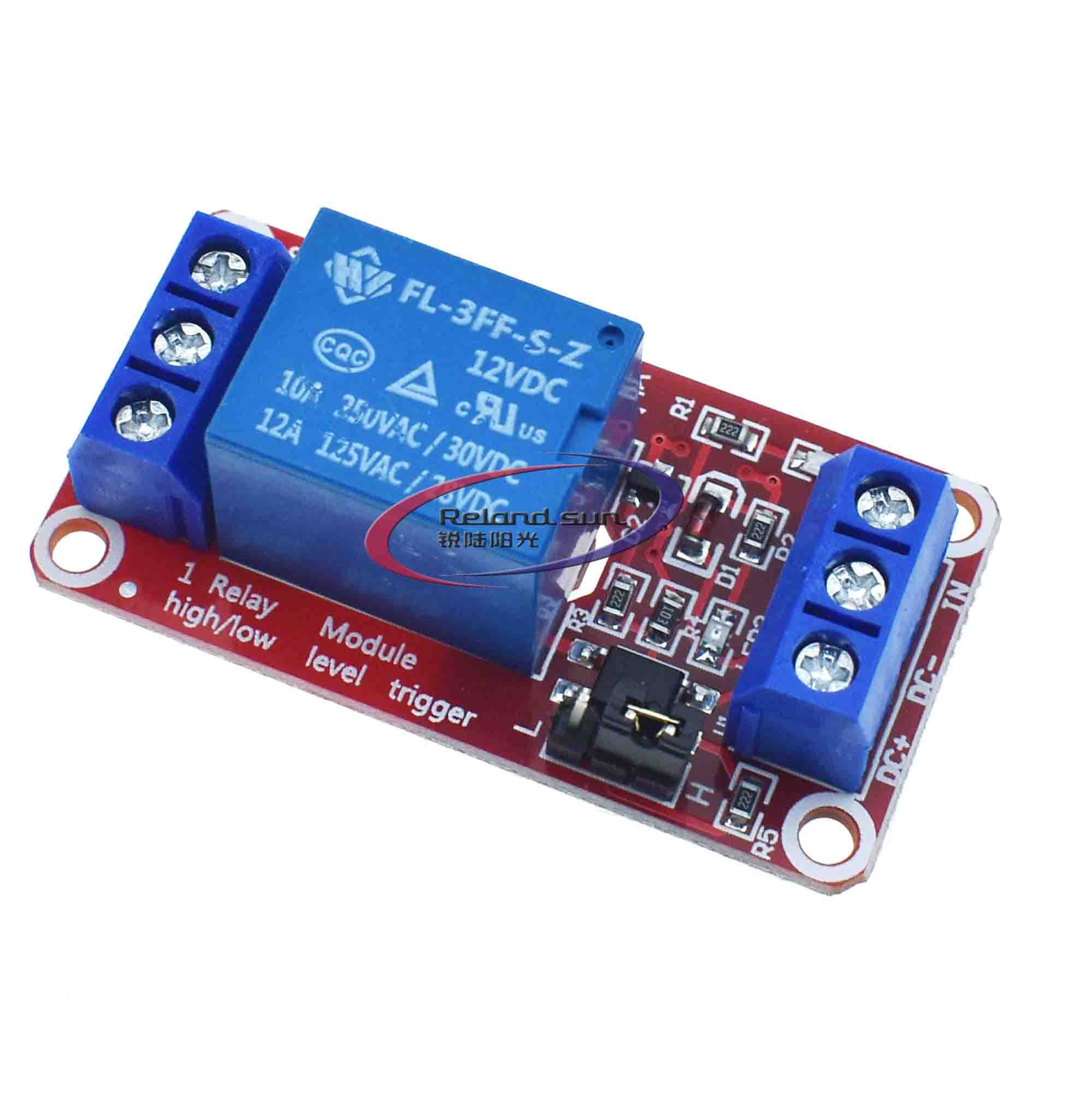

ItemName : 5V 9V 12V 24V 1 Channel Relay Module with Optocoupler Isolation Support High or Low Level Trigger (9V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : solid-state-relays
Manufacturer : Reland Sun
Material : lead
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 32 volts
MeasurementSystem : Metric
ModelName : EMGQQ
ModelNumber : EMGQQ
MountingType : Panel Mount
NationalStockNumber : 5945-01-252-3817
NumberOfItems : 1
OperationMode : Automatic
PartNumber : EMGQQ
ProductDescription : Module description:
Module Size: 50mm * 26mm * 18.5mm (L * W * H)
With four fixed bolt holes, holes 3.1mm, spacing 44.5mm * 20.5mm
Power Indicator (green), Relay Status Indicator (red)

Interface:
Input:
VCC: Relay power supply +
GND: Relay power supply -
IN: Signal trigger input (High or Low Level Signal, select via jumper)

Output:
NO: Relay normally open.
COM: Relay Common Pin
NC: Relay normally closed.

Package Included?
1*1 Channel Relay Module With Optocoupler Isolation


ProductSiteLaunchDate : 2021-12-09T13:44:14.591Z
Size : 9V
SpecificationMet : RoHS
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 39122300
