Specification
AgeRangeDescription : adult
Brand : ATO.COM
BulletPoint : Solenoid Valves
BulletPoint1 : Input voltage: 3-32V DC; Load voltage: 24-480V AC
BulletPoint2 : 3 phase solid state relay 100A DC to AC control, CE certification
BulletPoint3 : SSR features high structural strength, good impact resistance, and strong shock resistance
BulletPoint4 : Application: SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on
BulletPoint5 : It also has LED indicator for operation status and removable protective cover for safety
Color : Black
CurrentRating : 100 amps
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 6189481829493
ExternallyAssignedProductIdentifier1 : 0783902771864
ExternallyAssignedProductIdentifier2 : 783902771864
IncludedComponents : 1 x Pmod SSR in a custom anti-static Pmod packaging

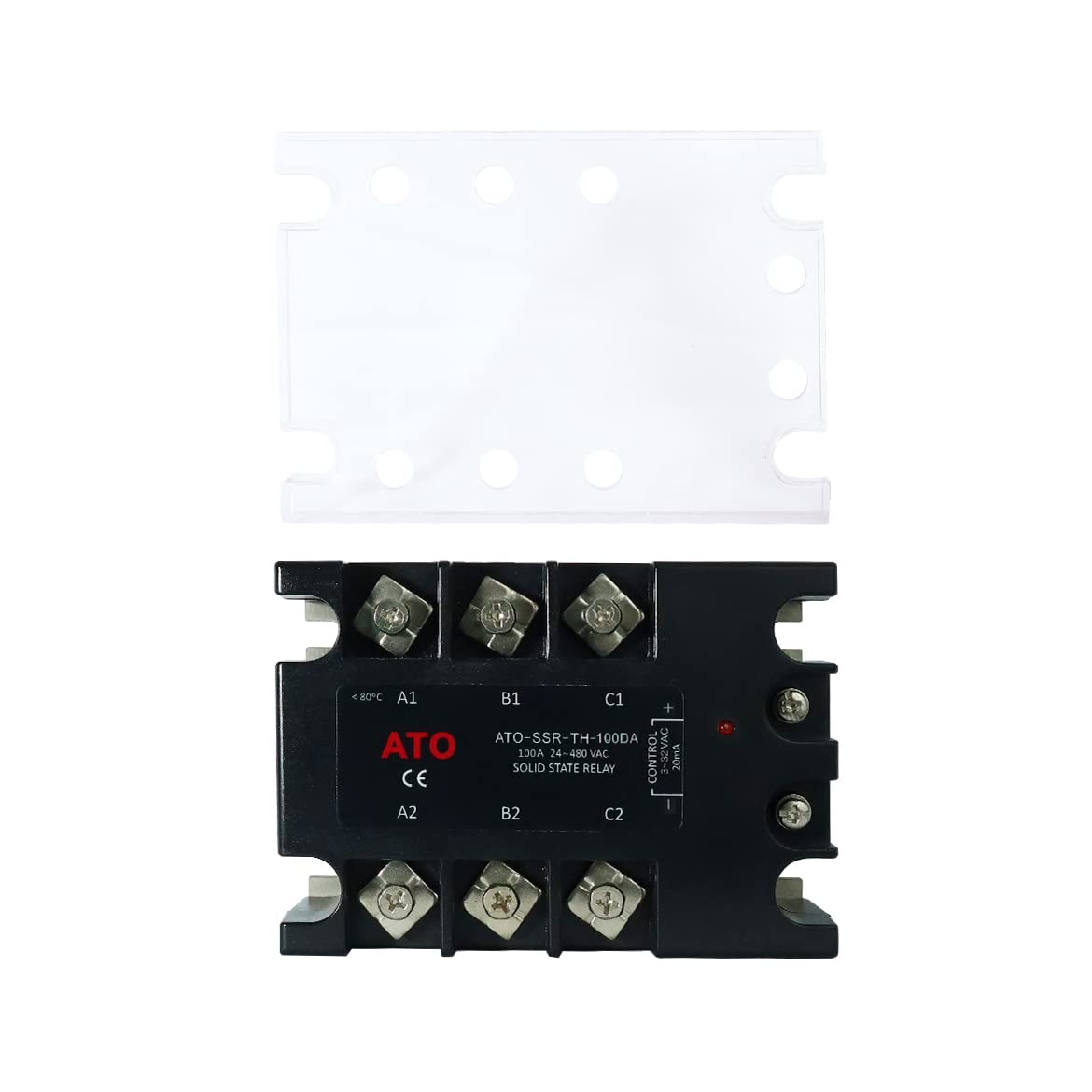

ItemName : ATO Solid State Relay SSR-100DA DC to AC, 3 Phase Relay with LED Indicator, Input 3-32V DC, Output 24-480V AC (100A)
ItemPackageDimensions_Height : 15.0114 centimeters
ItemPackageDimensions_Length : 2.0066 centimeters
ItemPackageDimensions_Width : 7.5946 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : solid-state-relays
Manufacturer : ATO
Material : Metal
MaximumSwitchingCurrent : 100 amps
MaximumSwitchingVoltage : 48 volts
MeasurementSystem : Metric
ModelName : UELPWLWZ
ModelNumber : ATO-SYTH10048ZD3
MountingType : Panel Mount
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Automatic
PartNumber : SSR-TH40DA-120DA
ProductDescription :

ATO 100A 3-phase solid state relay (SSR) features 3-32V DC input voltage and 24-480V AC output voltage with compact size, high structural strength, good impact resistance, and strong shock resistance.

The SSR relay offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

Specification:

Model ATO-SYTH10048ZD3

Input Control voltage range 3-32V DC

Max. input current 20mA

Must operate voltage 4V DC

Must release voltage 2.7V DC

Output Load voltage range 24-480V AC

Peak voltage 800V AC

Load current 100A

Maximum off-state leakage current 8mA

Maximum off-state time 10mS

Maximum on-state voltage drop 1.5V

General Dimension L – W – H (mm) 105х74х33

Weight 500g

Dielectric strength (input to output) 4000V

Dielectric strength (input, output to the base) 2500V

Operating temperature -20℃~ 80℃

Mount Panel

Certification CE

Note:

When the load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.

When the load current is 40A or more, a fan cooling radiator or water cooling radiator must be equipped.

* Heat sink is Not included.

ProductSiteLaunchDate : 2020-07-20T06:37:36.698Z
Size : SSR-100DA
SpecificationMet : CE
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
