Specification
Brand : GTHURCS

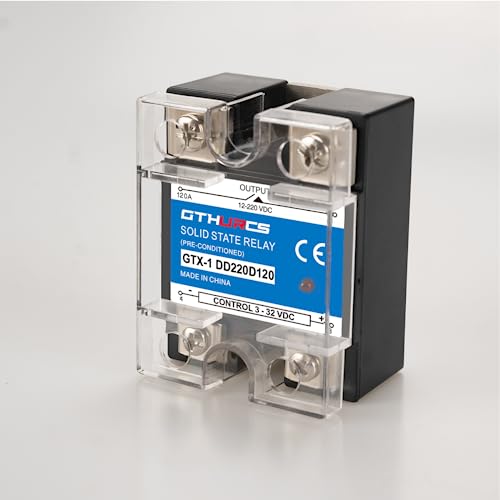

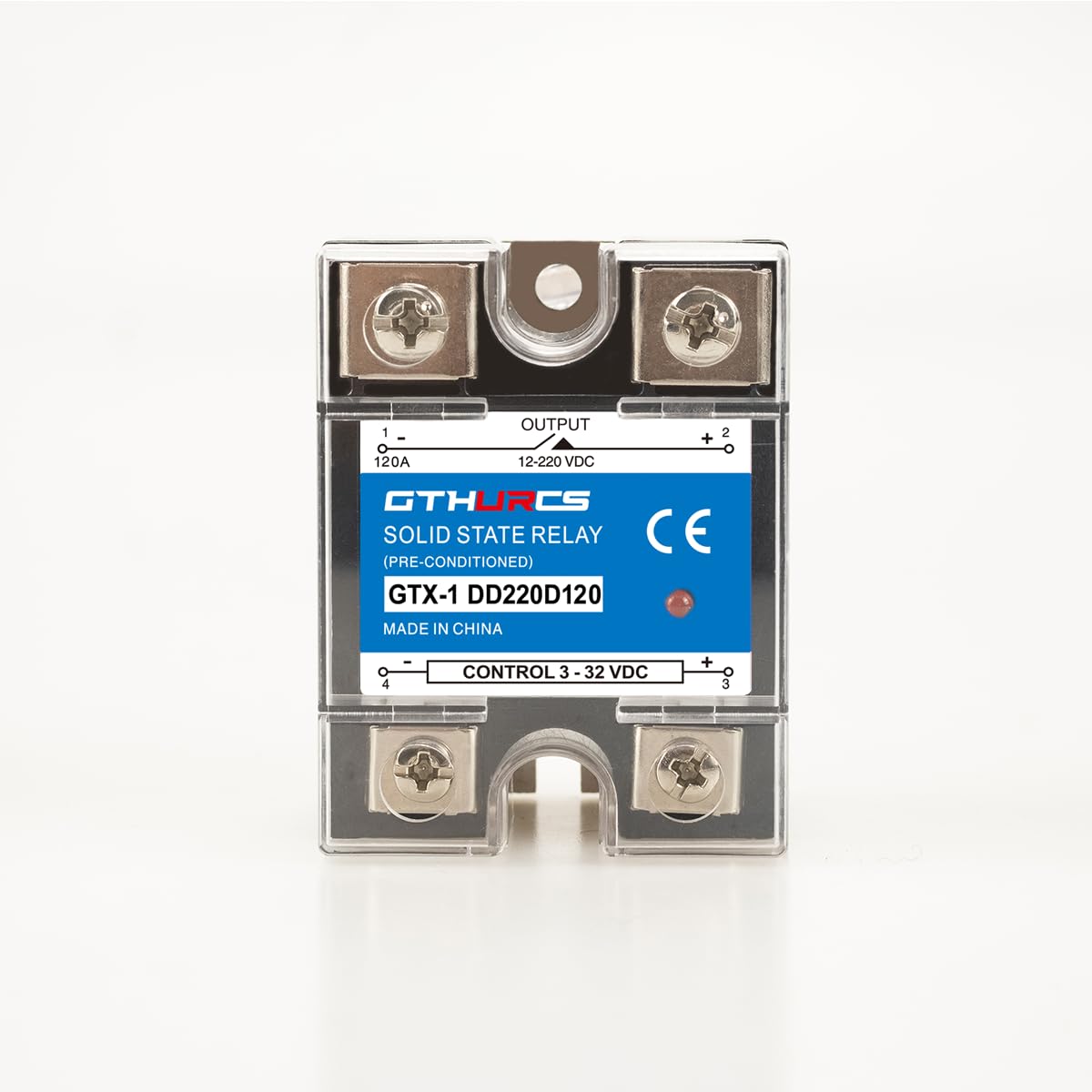

BulletPoint1 : Product Name: Solid State Module Relay SSR-120DD, 3-32VDC/12-220VDC; Current and Frequency: 120A, 50/60Hz.
BulletPoint2 : Overall Dimensions (Approx.): 58 x 45 x 32 mm/2.3 x 1.8 x 1.26 inches (L*W*H); Net Weight: 116g; Material: Metal, Plastic, Electronic Parts
BulletPoint3 : SSR application: no spark, no noise, high switching speed, anti-corrosion, anti-moisture, anti-vibration, long service life. reliability, electromagnetic compatibility and other characteristics.
BulletPoint4 : Solid state relays are ideal for automatic process control applications and are an essential component of temperature controllers and other mechanical control systems.
BulletPoint5 : Only one solid state relay in each package
ExternallyAssignedProductIdentifier1 : 0737494112994
ExternallyAssignedProductIdentifier2 : 737494112994
IncludedComponents : SSR-120DD
ItemName : Solid State Relay SSR-120DD 120A DC to DC Input 3-32VDC to Output 12-220VDC Single Phase Plastic Cover
ItemPackageDimensions_Height : 6.2992 centimeters
ItemPackageDimensions_Length : 3.7084 centimeters
ItemPackageDimensions_Width : 4.699 centimeters
ItemTypeKeyword : solid-state-relays
Manufacturer : GTHURCS
Material : Copper
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : SSR-120DD
ProductDescription : Model:SSR-120DD
Control Voltage:3~32VDC
Min Control Current:5mA
Max Control Current:25mA
Load Voltage:12~220VDC
Load Current:120A
Insulation Resistance:500M Ohm/500VDC
Off Leakage Current:≤2mA
On Voltage:≤2V
On-off-Time:≤10ms
Ambient Temperature:-20~+75℃
Relative Humidity:≤95%(Non-condensing)
Dimensions:57.4×44.8×32mm
Weight:≤135g
Choose a correct Current type
Current of SSR=Current of Equipment*magnification
PS: The magnification depend on the kind of your loading equipment.
Resistive load :2 to 3 times
Inductive load: 6 to 7 times
Capacitive load:10 times
The start-up current of capacitive and inductive loads is very large，Make sure you the kind of your loading equipment and choose carefully
About the choice of heat dissipation and radiator
Even with the same load, the more frequently the solid state relay is switched on and off, the more heat is generated.
Please make sure that the SSR is in a good heat dissipation environment, choose a suitable heat sink, and ensure that it works within 158°F (70°C).
