Specification
Brand : DMWD
BulletPoint1 : Model: SSR-100AA, single phase Solid State Relay 100A AC to AC control, CE Compliant to EN60950-1
BulletPoint2 : Input voltage 80-250V AC, Load voltage 24-380V AC, Max load current 100 Amp
BulletPoint3 : Rugged epoxy encapsulation construction, high isolation over than 50MΩ(500VDC), high dielectric over than 2.5KV, output snubber circuit protection
BulletPoint4 : No EMI/EFI & Low surge by Zero Cross Trigger method, specially suited to control sensitive, capacitive and Non-saturated inductive loads
BulletPoint5 : SSR switches use semiconductor component acts as a switch for the relay, no moving parts inside, no mechanical wear, no action noise, no mechanical failure, and high reliability
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier1 : 606855492979
ExternallyAssignedProductIdentifier2 : 0606855492979
ItemName : SSR-100AA Solid State Relay AC to AC (Input 80-250V AC Output 24-380V AC) with Heat Sink, 100A
ItemPackageDimensions_Height : 9.6012 centimeters
ItemPackageDimensions_Length : 5.4102 centimeters
ItemPackageDimensions_Width : 8.509 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangle
ItemTypeKeyword : solid-state-relays
Manufacturer : DMWD
Material : Metal
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 250 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : SSR-100AA +SanRePian
MountingType : Panel Mount
NumberOfItems : 1
OperationMode : Automatic
PartNumber : SSR-100AA +SanRePian
ProductDescription :

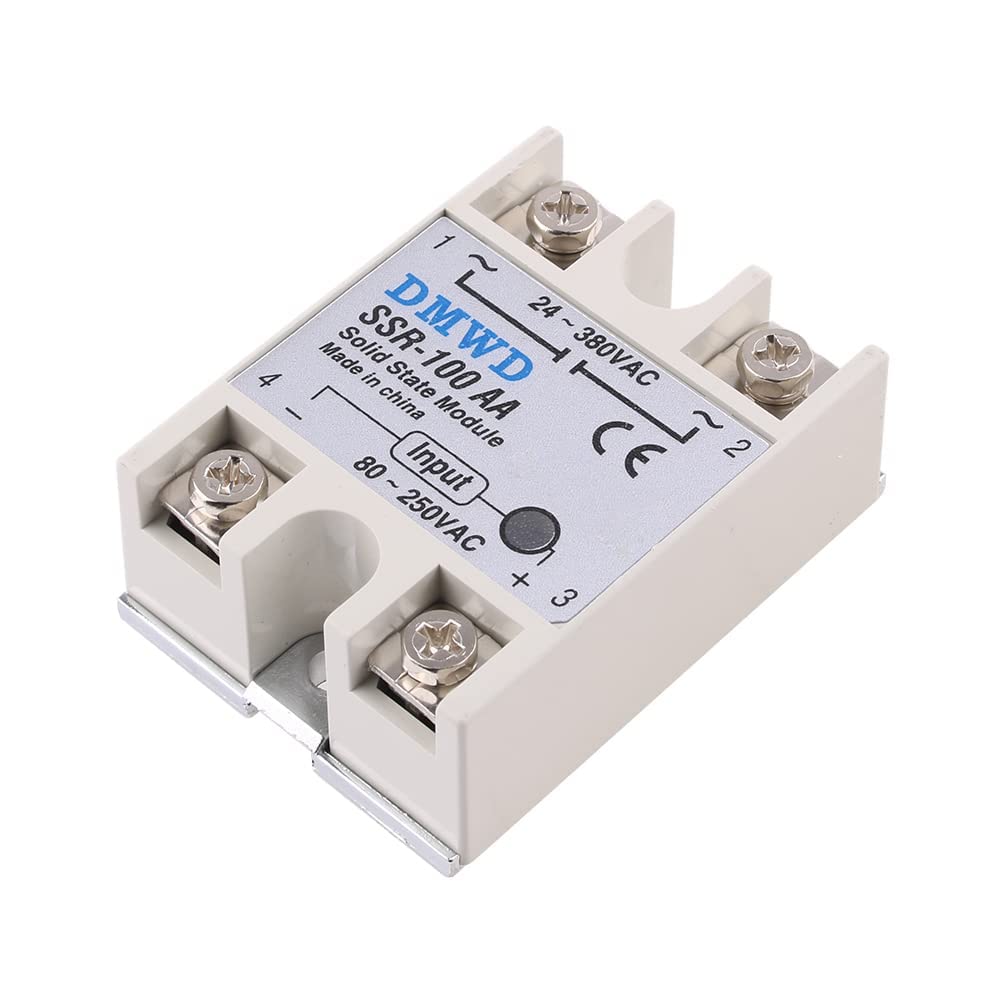

DMWD Low cost single phase solid state relay SSR-100AA

Input voltage 80-250V AC

Load voltage 24-380V AC

Load current 100Amp

100A 80-250V AC to AC solid state relay (SSR) features high structural strength, good impact resistance, and strong shock resistance. The SSR offers a reliable switching the commercial and industrial loads, such as computer peripheral interface device, printing machine, molding machine, food machine, packaging machine, and so on.

• Built in RC absorption
• Photoelectric isolation
• SCR output
• LED indicator for operation status
• Panel mount
• Zero-crossing switch type
• UL Approved, CE Compliant to EN60950-1

Note:

* When the load current is higher than 10A, a heat sink must be installed to the solid state relay, or the SSR relay should be mounted on a metal base plate with heat dissipation effect, and the thermal grease is applied between them.

* When the load current is 40A or more, a fan cooling radiator or water cooling radiator must be equipped.

* Heat sink is included.

Package Content:

1 x Solid State Relay

1 x All Aluminium Heat Sink

Size/Weight:

SSR(60x45x23mm/100g)

Heat Sink(78*50*50mm/80g)

Warranty:

Free new replacement in 5 years, Have faith in quality

ProductSiteLaunchDate : 2022-05-03T06:57:58.516Z
Size : 100A
SpecificationMet : compliant
Style : AC to AC
UnspscCode : 39122300
