Specification
Brand : uxcell
BulletPoint1 : Input Voltage: 3-32VDC; Output Voltage: 24-480VAC; Max Load Current: 20A.
BulletPoint2 : size: 44.8 x 57.4 x 28mm/1.76x2.25x1.1inch(L*W*H)
BulletPoint3 : Sealed high temperature resistance housing;Resin protective cap;Perfectly soldered copper post.
BulletPoint4 : 10 to 25A radiator cooling,more than 25A must on the radiator and fan cooling. Output requirements concatenated fuse or and the varistor.
BulletPoint5 : Widely used in computer external link devices, high-power thyristor triggers, and industrial automation devices. Such as thermostat and resistance furnace control, AC motor control, solenoid valve control, copier and fully automatic washing machine control, lighting, and stage lighting control, CNC mechanical remote control system, etc.
BulletPoint6 : Module size: 50x45x10mm(LWH), hole diameter 3mm, hole center distance 35x25mm(LW).
BulletPoint7 : Please download the user manual from the "User Manual" link on this page or contact us.
BulletPoint8 : User Manual https://1drv.ms/b/s!AlzQUCOyZQhKgXU0PzDptISGtyfu?e=Ak6lUE
ConnectorType : Through Hole
CurrentRating : 20 amps
ExternallyAssignedProductIdentifier1 : 709874028423
ExternallyAssignedProductIdentifier2 : 0709874028423

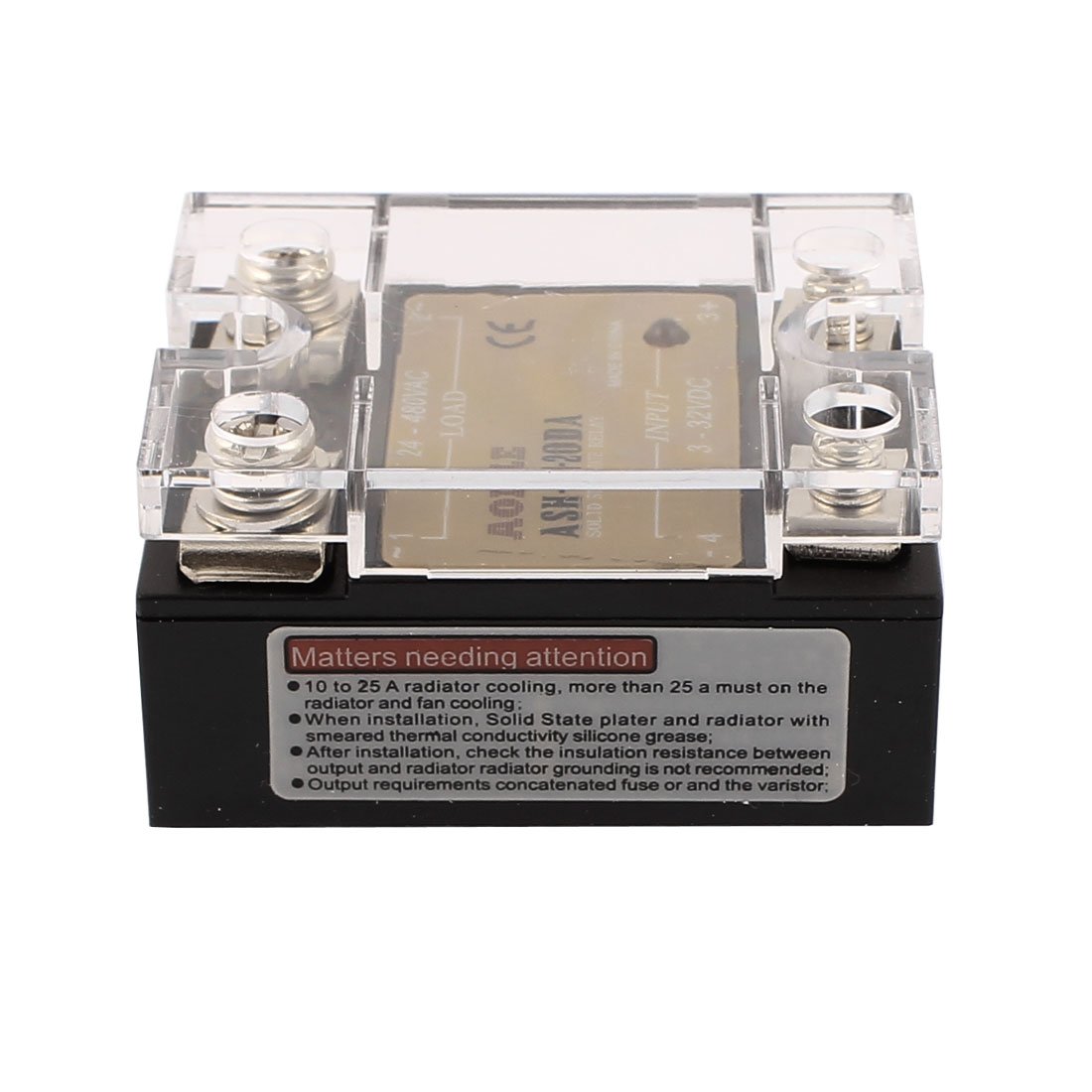

ItemName : uxcell ASH-20DA 3-32VDC to 24-480VAC 20A Single Phase Solid State Relay Relay DC to AC Relay
ItemPackageDimensions_Height : 17.4 centimeters
ItemPackageDimensions_Length : 5.1 centimeters
ItemPackageDimensions_Width : 12.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : solid-state-relays
Manufacturer : uxcell
Material : /
MaximumSwitchingCurrent : 40 amps
MaximumSwitchingVoltage : 5 volts
MeasurementSystem : English
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
MinimumSwitchingVoltage : 5 volts
ModelNumber : a16081800ux0773
MountingType : Screw Mount
NumberOfItems : 5
NumberOfTerminals : 3
OperationMode : Automatic
PartNumber : a16081800ux0773
ProductDescription : Feature
High reliability, high efficiency, and a long lifespan.
No electric spark, no noise, and no contact.
Fine electromagnetic interference, high sensitivity, and fast switching speed.
Low drive voltage and current.
Widely used in many automatic control systems.
Specifications
Control Mode:DC-AC
Insulation Resistance:1000M ohm/500VDC
Ambient Temperature:-30C - +75C
Protection Character:Resin Soldering
Off Leakage Current: less or equal to 2mA
Mounting Method: Bolts Fixed
Weight:105g
Package Content:1 x Solid State Relay.

Notice Of Use
1. The current on the product is the maximum load current, not the rated current.
2. On the basis of the difference of the load character, you should keep the different allowance on the level of the current when you choose the product. (When the load is resistive, the load current should be 1/2-1/3 times the max load current. When the load is inductive or capacitive, like motor， transformer， the load current should be 1/4-1/6 times of max load current.)
3. When Installation, solid state plater and radiator with smeared thermal conductivity silicone grease
4. ≥10A with radiator, ≥20A with radiator and fan strong cold.


ProductSiteLaunchDate : 2016-09-21T11:28:28.969Z
ShipsGlobally : 1
Size : Phototriac Coupler Isolation
SpecificationMet : Ma
Style : 25 A Rated Load Current, 24 to 240 VAC Rated Load Voltage, 5 to 24 VDC Input Voltage
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
UpperTemperatureRating : 75 degrees_celsius
Voltage : 5 volts_of_direct_current
Wattage : 25 milliwatts
