Specification
Brand : VKLSVAN
BulletPoint1 : 【convenient to use】The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.normally open interfaces，Can be set high or low triggered by jumper.
BulletPoint2 : 【Module parameters】The module voltage 5V， Maximum load: AC 250V/10A, DC 30V/10A.
BulletPoint3 : 【stable performance】High quality relay, using optocoupler isolation, strong driving capability, stable performance; trigger current 5mA.
BulletPoint4 : 【Fault-tolerant design】 Even if the control line is broken, the relay will not move. All Interfaces of relay can be wired out through the terminals directly,normally open and normally closed.
BulletPoint5 : 【Wide Application】DC 5V Relay Module compatible with ARM /PIC /AVR /MCU/Raspberry etc.
BulletPoint6 : Buy it Confidence: Let you feel using, so you have a better using experience. Great value for money. If you have any problems, please fell to us anytime. Our team will help you solve the problem as soon as possible.
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 9380952602509
ExternallyAssignedProductIdentifier1 : 662917001695
ExternallyAssignedProductIdentifier2 : 0662917001695
IncludedComponents : One Way Relay Module
InputVoltage : 1 volts
ItemName : VKLSVAN 5 PCS DC 5V 1 Channel Relay Module Board Shield Relay Switch High/Low Level Trigger with Optocoupler
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : solid-state-relays
LowerTemperatureRating : 30 degrees_celsius
Manufacturer : VKLSVAN
Material : lead
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 250 volts
MeasurementSystem : Metric
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
MinimumSwitchingVoltage : 5 volts
ModelNumber : N.A.
MountingType : Screw Mount
NumberOfItems : 1
NumberOfTerminals : 2
OperatingVoltage : 1 volts
OperationMode : Automatic
PartNumber : 1056

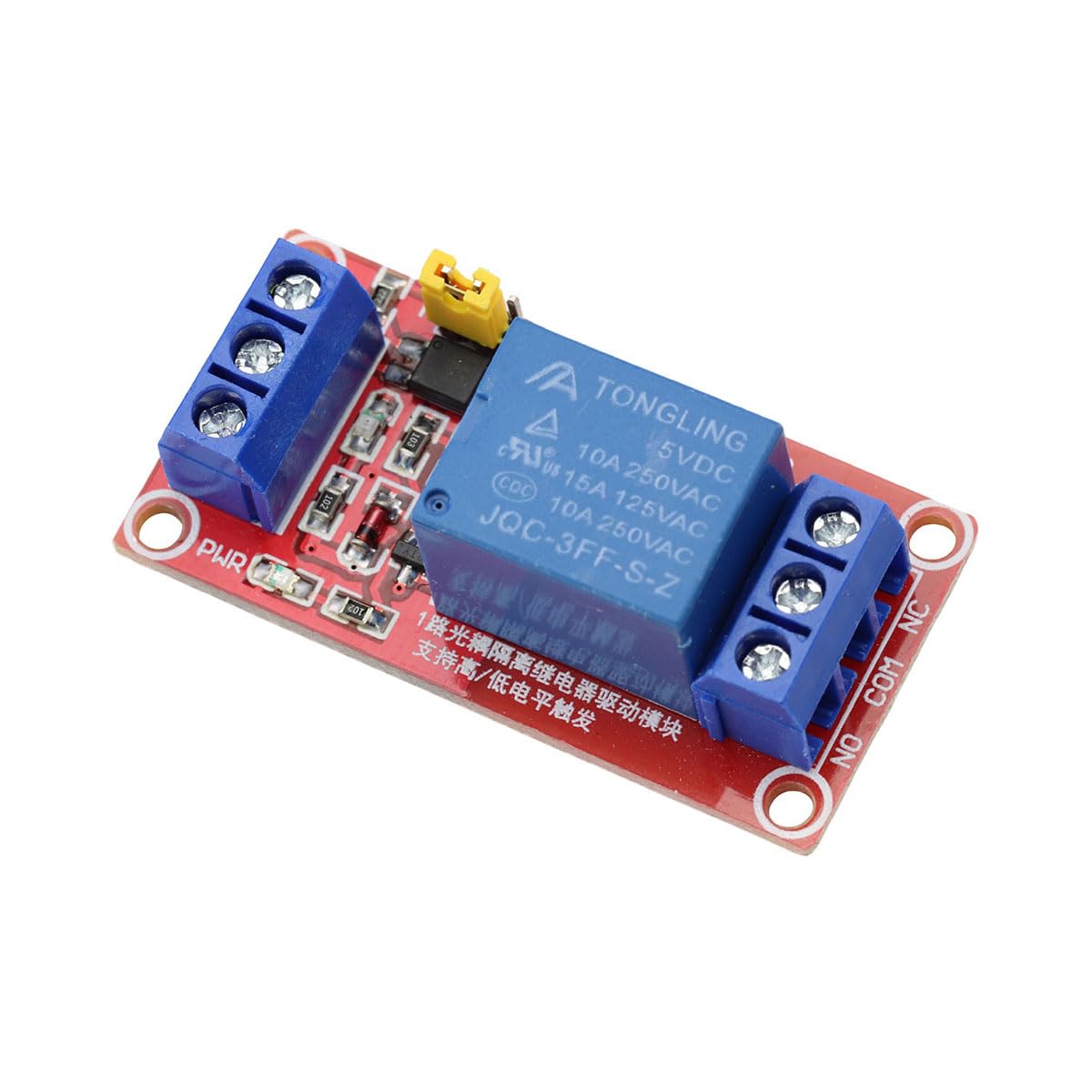

ProductDescription : Module Description:
1.Module uses quality relay, normally open interfaces
2.Operating voltage：5V
3.Maximum load: AC 250V/10A, DC 30V/10A
4.SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA
5.Fault-tolerant design：even if the control line is broken, the relay will not operate
6.Power indicator (green), relay status indicator (red)
7.The module can be set high or low triggered by jumper
8.Interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
9.Module size: 50mm*26mm*18.5mm (L*W*H)
10. Mounting holes, hole 3.1mm, spacing 44.5mm * 20.5mm

Module Interface:
DC +: Positive power supply (Select voltage according to relay requirements, 5V/ 9V/ 12V and 24V selection)
DC-: Negative
IN: Can be high or low level control relay

Output:
NO: Relay normally open
COM: Relay Common Pin
NC: Relay normally closed

High or Low Level Trigger Select:

* Use High Level Trigger
When "IN" input High Level Signal, the "NO" connect with "COM"
When IN" input Low Level Signal, the "NC" connect with "COM"

*Use Low Level Trigger
When "IN" input Low Level Signal, the "NO" connect with "COM"
When "IN" input High Level Signal, the "NC" connect with "COM"

*High or Low Level Trigger Select
Jumper connect with L, Low Level Trigger
Jumper connect with H, High Level Trigger

Package Included：

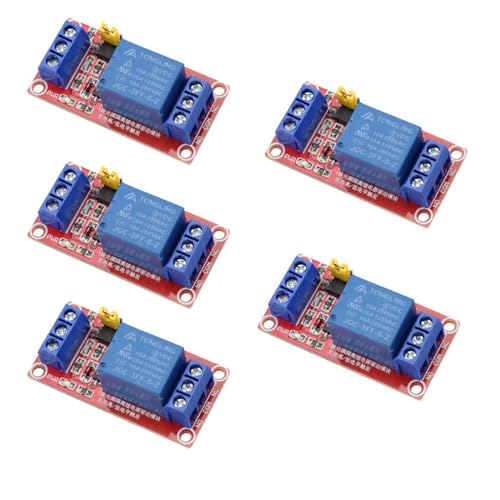

5 X 5V 1 Channel Relay Module Relay Switch High/ Low Level Trigger
ProductSiteLaunchDate : 2023-10-27T03:06:33.090Z
Size : 2Pcs DC12V
SpecificationMet : Electromagnetic,electromagnetic Compatibility
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 39122200
Wattage : 4 watts
