Specification
Amperage : 15 milliamps
Brand : Reland Sun

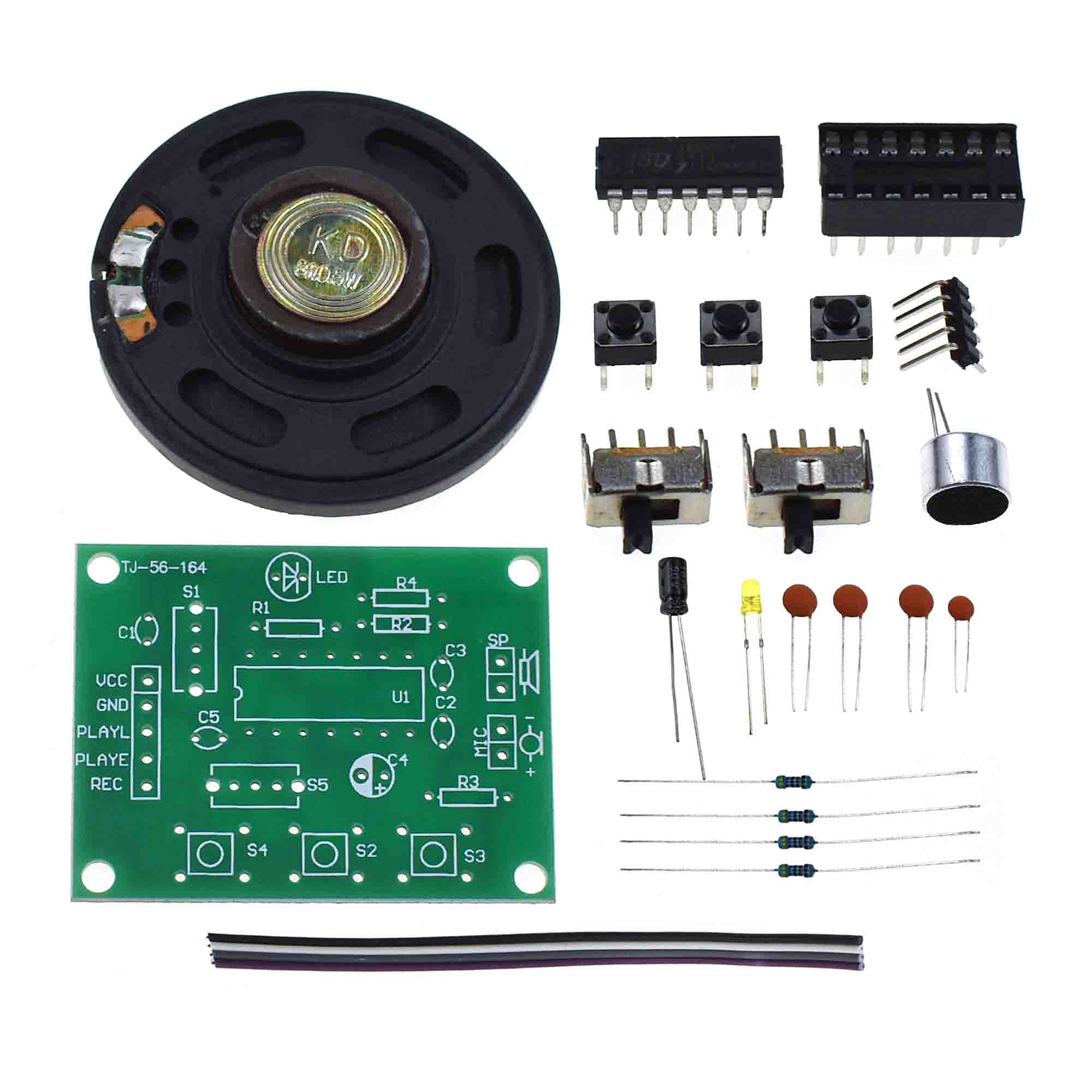

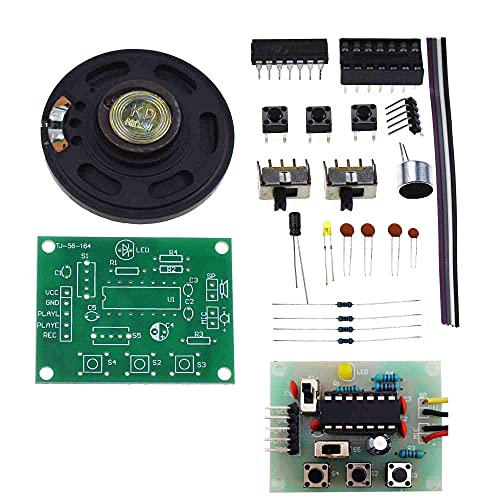

BulletPoint1 : 20 Seconds DC 3-5V Voice Sound Recording Recorder Module Kit ISD1820P DIY Kits Precise Talking Music Audio Recordable
BulletPoint2 : Supply Voltage : DC 3-5V
BulletPoint3 : High quality Aluminum panel!
BulletPoint4 : Width: 2HP. Skiff friendly depth
BulletPoint5 : Current Draw: None
ControlsType : Touch
ExternallyAssignedProductIdentifier1 : 0739227853440
ExternallyAssignedProductIdentifier2 : 739227853440
Format : wav
HardwareInterface : usb
HeadphonesJack : no headphones jack
ItemName : 20 Seconds DC 3-5V Voice Sound Recording Recorder Module Kit ISD1820P DIY Kits Precise Talking Music Audio Recordable (DIY)
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 8 inches
ItemPackageDimensions_Width : 9 inches
ItemPackageQuantity : 1
ItemTypeKeyword : sound-modules
Manufacturer : Reland Sun
MicrophoneFormFactor : Built-In
MicrophoneOperationMode : Mono
ModelNumber : AI001
PartNumber : AI001KIT
ProductDescription :
Description:

This suite adopts 20s voice recording circuit ISD1820P to achieve the save and restore of voice signal. The chip adopts CMOS technique, the no power consumption information can be saved for 100 years. Integrated circuit pin function is: 11 pin is power positive (VCC); 8, 14 pin connects power negative (GND); 1 pin is recording port (REC), high level valid; when the REC gets higher, the chip will start recording; 2 pin is edge trigger play (PLAYE); when this port has high level, the chip will start playing the voice; after playing, it can release PLAYE; 13 pin is recording indication port (RECLED); when it is on recording state, this port is low, and it can drive LED; 4, 5 pin connects microphone input port (MIC); 6 pin connects auto gain control (AGC) port; 7, 9 pin connect loudspeaker output (SP+, SP-), and it can directly more than 8 ohm loudspeaker; 10 pin connects oscillation resistor (ROSC), connect oscillation resistor to GND. Adjust oscillator resistor R4 connected with ROSC, it can stepless adjust the voice speed; the shorter of the recording voice, the better of the sound quality will be; otherwise, it will be worse.Note: please do not adjust the resistor for too small, we recommend more than 100K ohm
ProductSiteLaunchDate : 2024-06-21T01:56:37.610Z
SignalFormat : Analog
Size : DIY
Style : Compact
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 52161535
Voltage : 12 volts
