Specification
Brand : Generic
BulletPoint1 : [High Sensitivity Microphone] The noise sensor features a 0.5 inch polarized microphone with omnidirectional pattern for accurate sound pickup.
BulletPoint2 : [Advanced Noise Measurement] This noise sensor is a digital, modular sound level meter that utilizes digital processing chips and detection technology, delivering performance, with a wide dynamic range, no need for range conversion.
BulletPoint3 : [Wide Application] The noise sensor can be widely used in various industrial settings such as machinery, vehicles, ships, and appliances for noise measurement, also suitable for environmental noise monitoring, occupational safety, and more.
BulletPoint4 : [Wide Measurement Range] With a measurement range of 30 to 130dB, 0.1dB resolution, ±3dB accuracy, and a quick response time of 200ms, this outdoor decibel noise sensor provides precise and real time noise measurement.
BulletPoint5 : [ Construction] Constructed with aluminum alloy, the noise sensor is built to withstand harsh working environments, featuring IP55 rating for added durability.
IncludedComponents : No

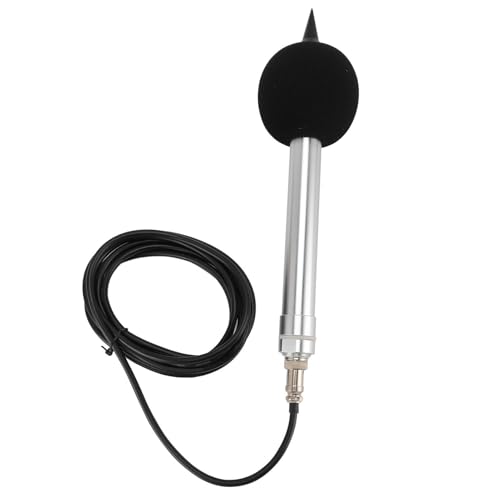

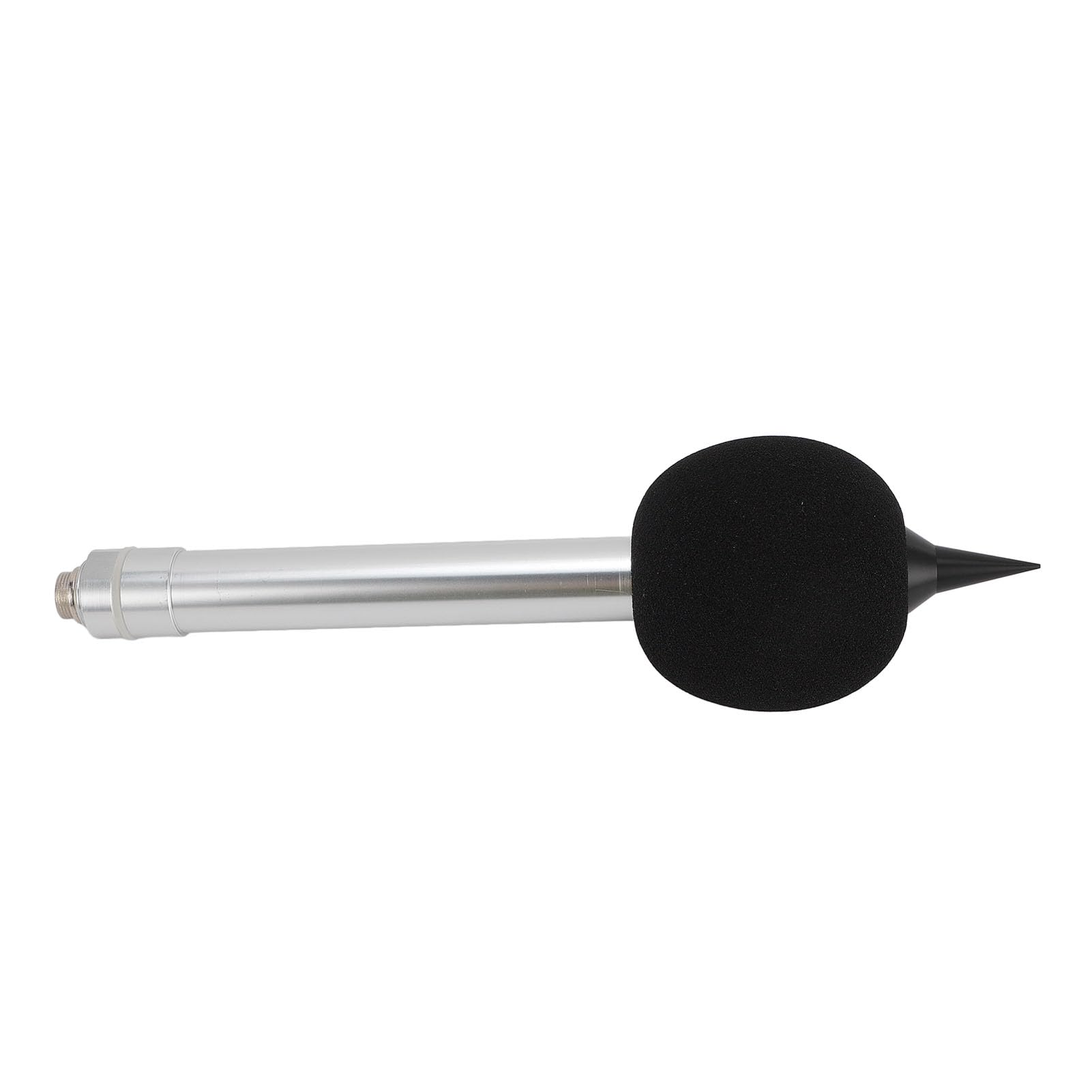

ItemName : Environment Sound Level Meter Sensor, DC9-30V Noise Sensor 0.5 Inch Microphone Quick Response for Industrial Use
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 33 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : sound-and-noise-meters
Manufacturer : Generic
MeasurementAccuracy : 0.1mm
ModelName : Shanrya4ts0va5mgc-12
ModelNumber : Generic2e4owgzr86-12
NumberOfItems : 1
PartNumber : Generic2e4owgzr86-12
ProductDescription : 1. [Advanced Noise Measurement] This noise sensor is a digital, modular sound level meter that utilizes digital processing chips and detection technology, delivering performance, with a wide dynamic range, no need for range conversion.
2. [Wide Measurement Range] With a measurement range of 30 to 130dB, 0.1dB resolution, ±3dB accuracy, and a quick response time of 200ms, this outdoor decibel noise sensor provides precise and real time noise measurement.
3. [High Sensitivity Microphone] The noise sensor features a 0.5 inch polarized microphone with omnidirectional pattern for accurate sound pickup.
4. [ Construction] Constructed with aluminum alloy, the noise sensor is built to withstand harsh working environments, featuring IP55 rating for added durability.
5. [Wide Application] The noise sensor can be widely used in various industrial settings such as machinery, vehicles, ships, and appliances for noise measurement, also suitable for environmental noise monitoring, occupational safety, and more.

Specification:
Item Type: Noise Sensor
Material: Aluminum Alloy
Length: Approx. 292mm / 11.5in
Power Supply: DC 9-30V
Sensitivity: -38±3dB (or 12.6mv/Pa)
Measurement Range: 30-130dB (A)
Resolution: 0.1dB
Accuracy: ±3dB, at 23±5℃ ambient temperature, frequency weighting compliant with IEC 61672 type 2 standard, calibrated with input of 94dB (1kHz)
Frequency Range: 20Hz to 12.5kHz
Response Time: 200ms, time response simulates human auditory response
Calibrator: for B and K, multi function sound calibrator, model 4231
Microphone: Polarized microphone
Directionality: Omnidirectional
Microphone Size: 0.5 inch
Load Capacity:
≤350Ω for current output impedance when powered by DC12V
≤900Ω for current output impedance when powered by DC24V
≥1KΩ for voltage output impedance
Maximum Power Consumption: 500mW
Operating Environment: Temperature -40℃ to 80℃, humidity ≤100%RH without condensation
IP Rating: IP55
Troubleshooting: Incorrect display value on the instrument during output. Possible reasons include wiring issues or communicating port faults causing incorrect data retrieval. Check if the wiring is correct and secure, if the communicating port is occupied, and if the port settings are correct.
Wiring: Red: Power Positive; Black: Power Negative; Yellow:
Weight: Approx. 418.00g / 14.74oz

How to Use:
Install and use according to appropriate voltage.

PackageList:
1 x Noise Sensor
1 x Cable
1 x Instruction Manual

Notice:
1. Please check if the packaging is intact and verify if the product model matches the selection; 2. Do not connect the wires with electricity, only power on after checking the connections are correct;
3. The length of the sensor wire will affect the product output , do not casually modify the product during use;
4. The sensor is a precise device, users should not disassemble, use sharply objects, or corrosive liquids to touch the sensor to avoid damaging the product.
