Specification
Brand : Startbuymore
BulletPoint1 : [COMPREHENSIVE ANALYSIS TOOL] The SA5 multi-function handheld spectrum analyzer includes a 4-inch IPS LCD display, a powerful 5000mAh battery, and comes with all necessary accessories, making it an essential tool for signal analysis and generation.
BulletPoint2 : [EXTENDED USAGE TIME] Equipped with a large capacity rechargeable battery, the SA5 provides up to 10 hours of continuous use. With Type C charging, you can easily recharge without interruptions.
BulletPoint3 : [MULTIFUNCTIONAL CAPABILITIES] This compact device serves as both a frequency harmonic analyzer and a signal generator, covering a wide frequency range from 1MHz to 5.3GHz for applications.
BulletPoint4 : [USER-FRIENDLY DESIGN] The upgraded knob design allows for easier operation and more accurate touch sensitivity, enabling quick data reading and efficient usage in various settings.
BulletPoint5 : [SIZING REMINDER] Please refer to your own size chart for accurate measurements instead of relying on the size chart.
Color : as picture show
ExternallyAssignedProductIdentifier : 7637910608557
ItemName : SA5 Handheld Spectrum Analyzer 100kHz-5.3GHz 4-Inch IPS LCD Display Signal Generator 800MHz Sine Wave 2-in-1 Signal Generator 5000mAh Battery USB PC Connection(B)
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 24 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : spectrum-analyzers
Manufacturer : Startbuymore
ModelNumber : 81IY532AT815X9MYFRJK5
PartNumber : 81IY532AT815X9MYFRJK5
ProductDescription :

Features:

[2024 Upgraded SA5] Upgraded IPS LCD 4-inch HD display and knob design, easier to operate, more sensitive to touch, more accurate, helping you read data quickly.

[Upgraded Battery Life] The upgraded SA5 analyzer has a built-in large-capacity 5000mAh rechargeable battery, providing 10 hours of portable use time, with Type-c charging cable, no need for frequent charging

[2 in 1 Multifunction] SA5 is a compact frequency harmonic analyzer and signal generator with many impressive features.

[Frequency Harmonic Analyzer] The frequency range is 0.1-800MHZ. After turning on for Ultra mode, it provides a signal frequency of up to 5.3GHz with level calibration, and can monitor the signal frequency up to 12GHz.[Signal Generator] When not used as a frequency analyzer, it can output 0.1-800MHz sine waves, square waves up to 4.4GHz, or RF test signals up to 5.3GHz.

[Switchable resolution bandpass filter] Resolution bandpass filter range is 200Hz to 850kHz.

[Optional for LNA] Built-in 20dB low noise(for LNA).

[Frequency harmonic display] Displays up to 450 points and displays 4 independently configured curves:

[Storage]for SD card slot for storing measurement data, settings and screenshots.

[Input attenuator] Step attenuator adjustable from 0dB to 31dB(cannot be used with for LNA)

[Calibration]: Built-in calibration signal generator for automatic self-test and input calibration,

[PC connection] Connected via USB, functions as a PC-controlled frequency harmonic analyzer or signal generator. Convenient data transfer directly to the computer.

Specifications:

Part name: frequency harmonic analyzer

Size: 163.5mm* 92mm* 42mm

Color: black

Material: PC+ABS

Package weight: 545g Packaging size: 25.5*15.5*.5.5cm

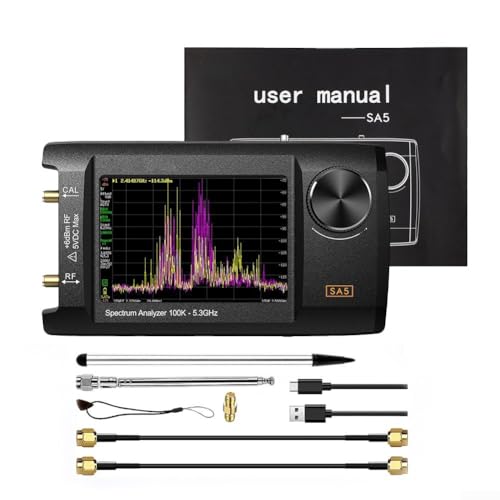

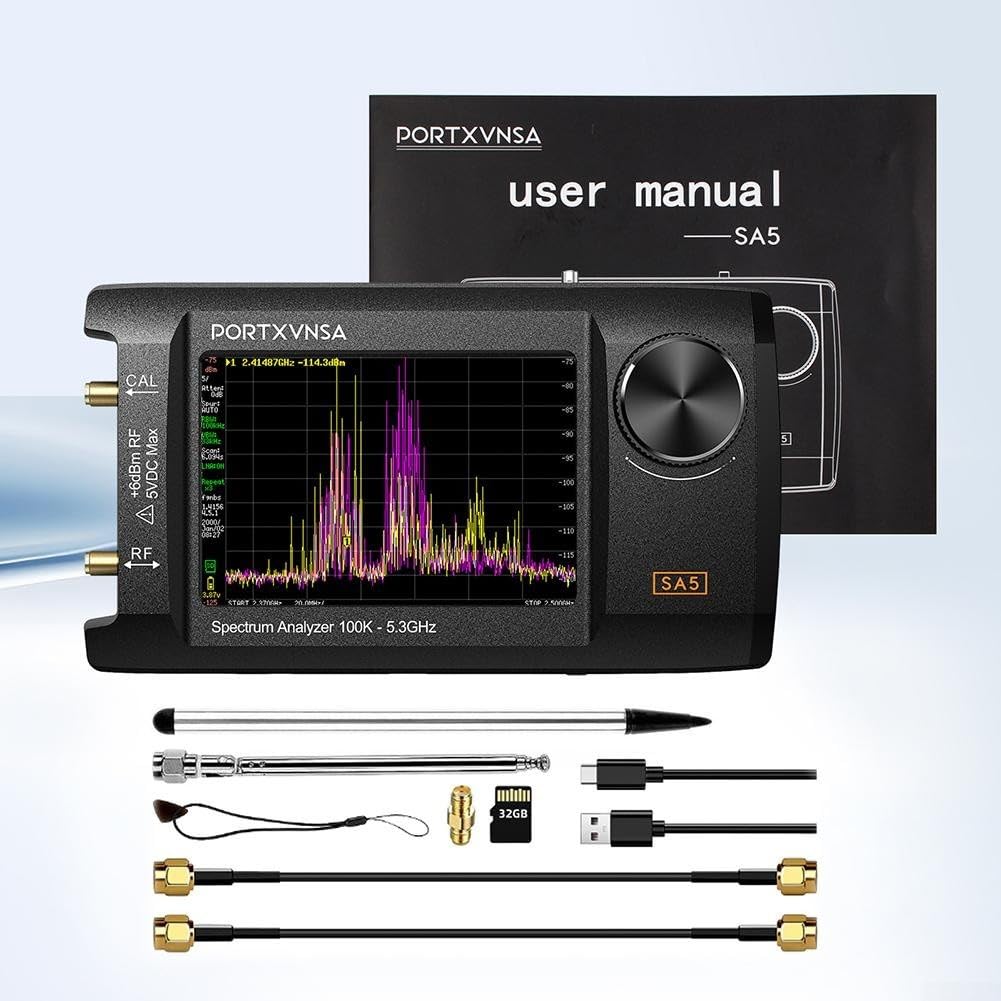

Package Content:

A:

Set 1:

Host(with 5000mAh battery, 4-inch display) x 1

Type-C data cable x1

30cm RG405 SMAJB2/SMAJB2 RF cable x2

SMA-SMA connector x1

Antenna with SMA connector x1

Lanyard touch sheet x1

Touch pen x1

B:

Set 2:

Host(with 5000mAh battery, 4-inch display) x 1

Type-C data cable x1

30cm RG405 SMAJB2/SMAJB2 RF cable x2

SMA-SMA connector x1

With Antenna with SMA connector x1

Touch pad with hanging strap x1

Touch pen x1

32GBfor for SD card(insert into the host) x1

ProductSiteLaunchDate : 2024-10-16T05:22:34.962Z
Size : B
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 52000000
