Specification
Brand : YG-1
BulletPoint1 : High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
BulletPoint2 : Titanium carbonitride coatings are harder and more wear-resistant than TiN for improved tool life and faster cutting speeds
BulletPoint3 : Round shanks allow use with a wide variety of toolholding systems
BulletPoint4 : When run in a counterclockwise direction (right-hand cut) spiral fluted tools evacuate chips up and out of the cut to reduce clogging
BulletPoint5 : 0.472-inches thread length
Color : Black
CustomerPackageType : Standard Packaging
CuttingAngleString : 135 degrees
ExternallyAssignedProductIdentifier : 9970239904299
ExternallyAssignedProductIdentifier1 : 650229429146
ExternallyAssignedProductIdentifier2 : 0650229429146
FinishType : Nitride Coated
ItemName : YG-1 T5 Series High Vanadium HSS Spiral Flute Combo Tap, TiCN Coated, Round Shank with Square End, Modified Bottoming Chamfer, M8-1.25 Thread Size, D5 Tolerance
ItemPackageDimensions_Height : 8.7884 centimeters
ItemPackageDimensions_Length : 1.1938 centimeters
ItemPackageDimensions_Width : 1.7018 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : spiral-flute-threading-taps
Manufacturer : YG-1 Tool Company
Material : high-speed steel
MeasurementSystem : Inch
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : T5365C
NumberOfItems : 1
PartNumber : T5365C

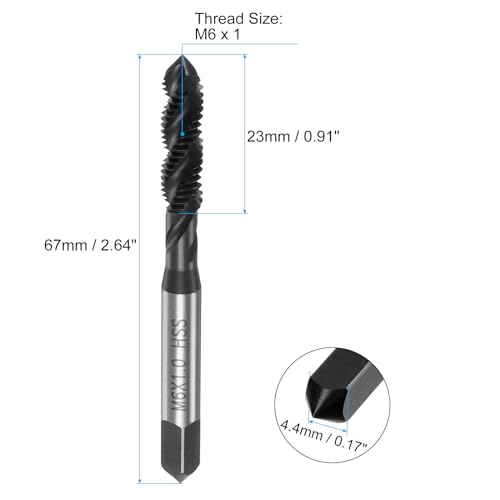

ProductDescription : Specifications:
Thread Size: M6 x 1
Square Shank Width: 4.4mm / 0.17"
Thread Length: 23mm / 0.91"
Total Length: 67mm / 2.64"
Tolerance: H2 (Accuracy)
Material: High Speed Steel 6542 (HSS 6542)
Finish: Nitride Coated
Manufacturing Process: Fully Ground
Package Content: 4pcs x Spiral Flute Thread Taps

Descriptions:
1. Metric thread tap features spiral flutes, clear threads without burrs, and right hand thread cutting. Spiral flutes are fully ground to provide upward chip removal. Flutes on the screw tap help to remove chips and debris from the hole.
2. 6542 (M2) high speed steel screw taps run at high speeds and generate threads quickly and efficiently, offering high hardness (HRC62-64), wear resistance, and good toughness. Nitride coating increases hardness, enhances wear resistance, and reduces friction for longer service life, resulting in smoother, faster tapping performance.
3. Spiral flute tap is suitable for processing blind holes and sticky materials. Used for drilling and tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, and hard plastics.
4. Machine threading tap is used with drill presses, tapping machines, CNC and milling machines. Used with tapping oil to get higher quality threads and more durable taps. Control speed according to material hardness. The higher the hardness, the slower the speed.
5. Machine taps are suggested to be used with tap chucks with overload protection. It is not recommended for hand use and electric drill tapping. The tapping angle should be 90 degrees vertical and stable. The tapping depth should not exceed 1.5 times the diameter of the tap.

ProductSiteLaunchDate : 2013-09-23T00:00:01-07:00
Size : M8
SpecificUsesForProduct : Metal Drilling
Style : Spiral Flute Tap
SupplierDeclaredDgHzRegulation : unknown
SurfaceRecommendation : Aluminum,Steel,Iron,Metals
UnitCount : 1
