Specification
Brand : Generic
BulletPoint : DH30 DIY Welder with Display Handheld Portable Mini Welding Machine for Nickel Plate 18650 Battery Welder
BulletPoint1 : 【2 TOUCH WELDING MODES】Mini spot welder using automatic touch welding mode, while retaining the manual trigger interface, you can choose according to your own use
BulletPoint2 : 【LCD DISPLAY】Battery spot welder with lcd display screen, can display welding parameters. The controller is mainly for welding ‑plated steel strips from 0.1mm to 0.15mm
BulletPoint3 : 【PULSE ACCURACY】The portable spot welder controller is controlled by a single chip microcomputer, and the output pulse is accurate, lcd display screen, can display welding parameters. Ensure the welding quality
BulletPoint4 : 【WIDE SELECTION OF WELDING POWER SUPPLY】Spot welding machine is battery power supply or 12v car battery, connect the crimped u-shaped terminal to the control power input terminal, and the other end is processed according to its own power supply
BulletPoint5 : 【HANDHELD WELDING PEN KIT】The spot welder welding pen and the input line are connected by u‑shaped cold‑pressed terminals, which is convenient for disassembly and replacement
Color : As Shown
IncludedComponents : Spot Weld Cutter
ItemDisplayDimensions_Height : 0.39 inches
ItemDisplayDimensions_Length : 2.87 inches
ItemDisplayDimensions_Width : 0.39 inches
ItemDisplayWeight : 0.09 pounds
ItemName : DH30 DIY Welder with Display Handheld Portable Mini Welding Machine for Nickel Plate 18650 Battery Welder
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 17 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : spot-welding-equipment
Manufacturer : Generic
Material : high-speed steel
ModelName : Beufeef24igqvutc
ModelNumber : ABLFY_DUD_21135
PartNumber : ABLFY_DUD_21135
ProductDescription :

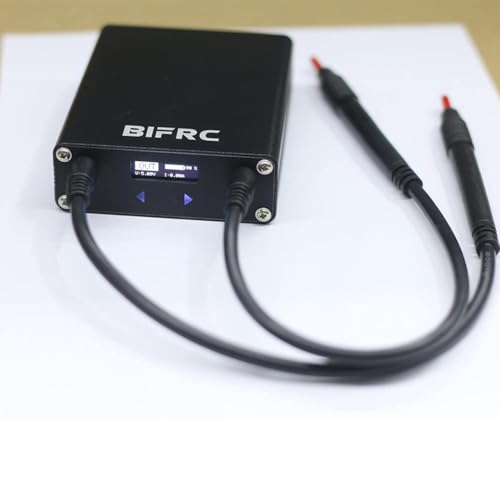

DH30 OLED Screen Coming:
Based on fans feedback, we launched the DH30 version, it have a 0.91 inch OLED screen,now can set MAX 20 gears power,can welding MAX 0.2mm Nickel Steel Strip,and can see input and output voltage and current on the screen.
DH30 Specifications:
Screen: 0.91 Inch OLED
Material: Metal Case
Battery Capacity: 5500mAh
Welding Output: 4.2V MAX 650A
USB Output:5V MAX 2.4A
Charging Port: Type-c
Product Weight: 302g
Product Size: 103x83x29mm
Package size: 143x107x48mm
Package weight: 407g
Please full charging before using!
Spot Welding Power Setting:
Start with the first gear and increase the power slowly until it can be welded. Do not increase the power if it can be welded. Avoid MOS bombs. The black solder joints indicate that the power is too high.
When welding, press down the soldering pin lightly, and the nickel sheet and the battery can be bonded together. The harder you press, the less solid the welding will be. It will automatically trigger after pressing down for one second.
Adapter Selection Requirements:
The adapter requires 5V, 2A or more. If you don’t have such adapter, we recommend buying it at our store together to better charge the welder.

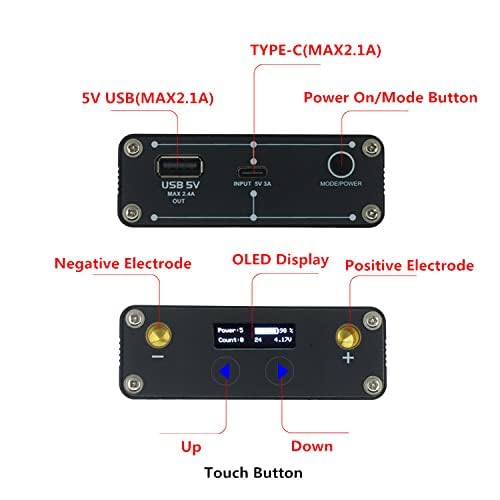

USB Output Port
Descriptions:
Because the internal circuit of the welding machine is different, there may be some compatibility issues with the phone charging, so the phone cannot be charged temporarily,if you need charger phone,you can Short-circuit 2 and 3 of the usb output port.
And for android cellphone,mobile phone charging protocols are different, and currently cannot all support fast charging protocols.
Package includes:
1 x Handheld welder with pen
2 x Welding Pen
1 x USB Type C Cable
1 x 0.12mm*8mm*2m Nickel Plated Steel Belt
