Specification
Brand : EVTSCAN
BulletPoint1 : LED Searchlight: The spot light is composed of 12pcs 5W super bright LED bulb. It is very durable and energy saving. The lighting can get up to 200 feet. The lamp operates on 12V or 24V DC circuits and is equipped with overload, overheat and overspeed protection.
BulletPoint2 : Multi Functions: The spot light can be rotated and tilted through the wireless remote control. With flashing and SOS mode, automatic search function and reset function.
BulletPoint3 : Bright Lighting: Can clearly illuminate the search target and is very suitable for working at night. Equipped with wireless remote control, the remote control is very sensitive and can be controlled wirelessly within 30m.
BulletPoint4 : Work: LED spot light adopts acrylic lens and IP65 PC lampshade, which can prevent low pressure water jetting from any direction. There is a PA washer at the bottom of the searchlight, which can prevent slipping and shock, and firmly fix it to your vehicle or ship.
BulletPoint5 : Easy to Install: For DC12V DC24V application. Suitable for vehicles, SUVs, trucks, ships, farmland protection, ship lighting, etc.
Color : One Color
ExternallyAssignedProductIdentifier : 7370604274910

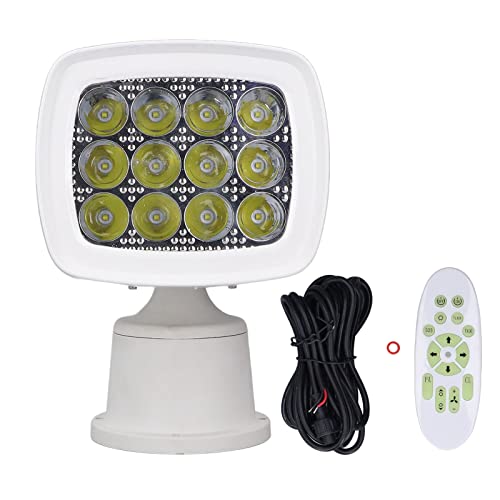

ItemName : EVTSCAN LED Searchlight Remote Control Flashing SOS Mode Spot Light Lamp DC12V 24V 27W for Boat Outdoor
ItemPackageDimensions_Height : 22 centimeters
ItemPackageDimensions_Length : 32 centimeters
ItemPackageDimensions_Width : 28 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : boating-spotlights
Manufacturer : EVTSCAN
ModelName : EVTSCAN2ehygx8c35
ModelNumber : EVTSCAN2ehygx8c35
NumberOfItems : 1
PartNumber : EVTSCAN2ehygx8c35
ProductDescription :

Item Type: LED Searchlight
Model: E016001 B
Material: PC, acrylic, PA.
Operation: Remote Control
Beam Angle: 6 ± 2°
Rotation: 340°
Elevating: 22° up, 48° down.
Rotation Speed: 8-10° per second under 12V DC, 12-14° per second under 24V DC.
Lifting Speed: 11-14° per second under 12V DC, 19-21° per second under 24V DC.
Power Cord Length: Approx. 4m / 13.12ft
Power Consumption: 27W
LED: 12pcs 5W
Working Voltage: DC 12V 2.2A or DC 24V 1.1A.
LED Color and Color Temperature: Sunlight white, 5500-6300K.
LED Beam Angle and Luminous Flux: 120°, 160-190lm.
Effective Luminous Flux and Power: 1600lm, 200W.
Sensing Distance: Approx. 30m / 98.43ft.
Remote Control Frequency: 433 MHz
Working Temperature: -20℃ ~ +45℃.
1000 Hours LED Lamp Life Test: The luminous flux maintenance rate > 90%.
Standard: IP65
Remote Control Battery: 2 X 1.5V AAA, shipped without battery.
A. Installation Instructions:
1. The searchlight must be installed on a flat and smooth surface for optimal use. Keep the light far away from the sail, cable anchor or other positions that may cause damage to the light. You need to access the lower side of the selected location and drill at the location. Make sure there are no wires or other structures where the screws need to be drilled.
2. In order to minimize glaring, it is best to install the lights as far ahead as possible and as high as possible.
3. The four base mounting holes and the central harness holes on the mounting surface of the washer must be adopted in accordance with the user manual.
4. Drill four 1/8in pilot holes at the marked points.
5. Please place the white circular mounting washer on the base of the lamp and ensure that the harness passes through the central hole of the washer.
6. Pass the wire from the lamp base through the center hole of the mounting surface. Sealant can be applied around the
ProductSiteLaunchDate : 2025-06-09T18:19:33.107Z
Size : One Size
UnitCount : 1
