Specification
Brand : KOPPACE
BulletPoint1 : This product does not contain a monitor.
BulletPoint2 : This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable,or connect to a computer through a network cable/USB 3.0 interface for use,Provide professional imaging software.
BulletPoint3 : This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (USB3.0 to connect the computer need to open the lower button, not open can only connect the mouse).
BulletPoint4 : Photography,video recording, and measurement can be achieved on both the monitor and computer.
BulletPoint5 : If measurement is required, it needs to be done in manual focusing mode. Calibration is required before measurement.
Color : 3.5x 180x Bk
ExternallyAssignedProductIdentifier1 : 0762311903318
ExternallyAssignedProductIdentifier2 : 762311903318
ItemName : KOPPACE 29X-190X Stereo Electron Microscope 2MP HD Ａutofocus Camera HDMI/USB/LAN Output
ItemPackageDimensions_Height : 29 centimeters
ItemPackageDimensions_Length : 50 centimeters
ItemPackageDimensions_Width : 49 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-stereo-microscopes
MagnificationMaximum : 190 multiplier_x
Manufacturer : KOPPACE
NumberOfItems : 1
PartNumber : KP-AF7045B3
ProductDescription :

Model：KP-AF7045B3
Optical Enlargement：3.5X-90X
Electronic Amplification：29X-190X
Eyepiece：High Eyespots Wide-Field Eyepiece WF10X/20,WF20X/10
Objective Lens：0.7X-4.5X
Auxiliary Lens：0.5X/165mm,1X Oil Proof Mirror
Viewing Head：Trinocular Stereo Microscope View Head Inclined at 45°.
The Pupil Distance Adjusting Range 54mm-76mm
Field of Vision：5.74mm-36.91mm
Working Distance：100mm-165mm
Focusing Bracket：76mm Lens Frame Diameter,Adjustment Range 50mm
Base Plate Size：380X250X20mm,Column Height 350mm,Column Diameter Φ32mm
LED Light Source：LED Qty 144,Internal Diameter Size 63mm,Diameter Size 94mm,Input Voltage AC90—240V,Maximum Output Power 4.5W,Voltage 12V0.5A
Sensor：2 Million Pixels Autofocus Microscope Camera
Output Method：HDMI/LAN/USB3.0
Focusing Method：Manual Focusing,One Click Focus,Auto Focus
Digital Amplification：6X Digital Amplification
Sensor Size：1/2.8
Pixel Size：2.2X2.2μm
HDMI Resolution Ratio：1920X1080@60FPS
Photo/Video：1920 X 1080 (Can be manually named and automatically named)
Storage Mode：U Disk Storage,Photo Taking,Video Recording and Measurement
Cross Hair：Support 100 Groups Cross Line,The Color Position is Adjustable
White Balance：Auto/Manual
Image Adjustment：Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback,Support Image Freezing,Comparison of static and moving images
Color Adjustment：R、G、B
Camera Interface：C-Mount
Language：Chinese,English,Traditional Chinese
Input Voltage：AC100V—240V 12V
LAN/USB3.0：We provide professional image measurement software by connecting to a computer through a network port or USB 3.0 interface.
Measuring Function：Point to point distance,point to line distance,line to line distance,angle,parallel line,rectangle,circle,line to center distance,Polygon,arc,circle margin,circle center distance,Dim sum distance,automatic edge searching,annotation and other functions

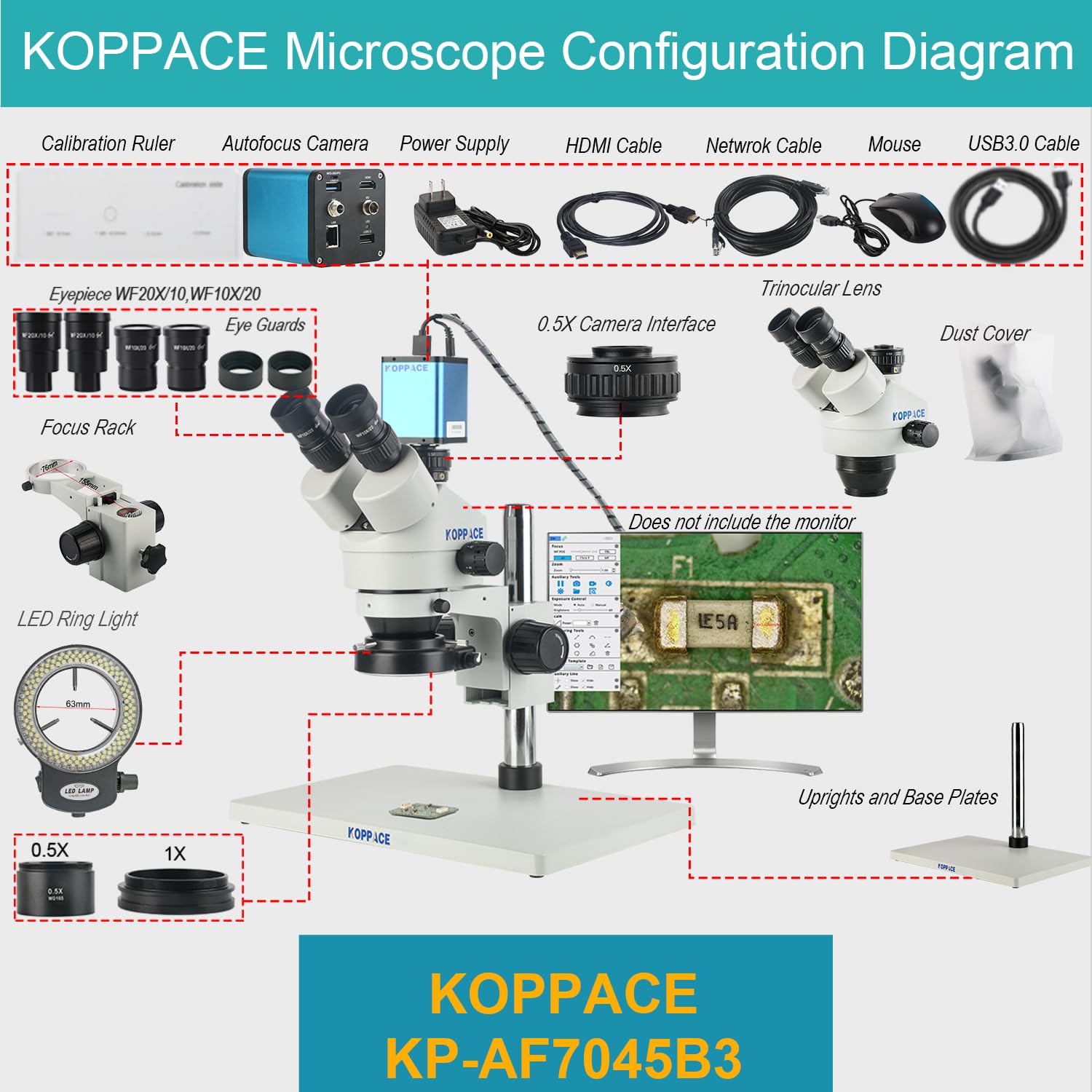

Packing List：
1、Eyepiece WF10X/20 one Pair
2、Eyepiece WF20X/10 one Pair
3、Focus Rack *1
4、Eye Guards One Pair
5、0.7X-4.5X Trinocular Zoom Lens *1
6、LED Ring Light *1
7、Pillar Stand and Base Plate *1
8、Dust Cover *1
9、0.5X Auxiliary Lens *1
10、1X Oil Proof Mirror *1
11、Trinocular Interface 0.5XCTV *1
12、Autofocus Camera *1
13、HDMI Line *1
14、The Camera Power Adapter *1
15、Calibrating Ruler *1
16、USB 3.0 cable *1
17、Mouse *1
18、Network cable *1

ProductSiteLaunchDate : 2025-04-26T03:42:34.811Z
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41111700
WarrantyDescription : 1 year
