Specification
BaseType : Pedestal
Brand : KOPPACE
BulletPoint1 : Magnification:50X,100X,200X,500X
BulletPoint2 : Eyepiece:PL10X22mm
BulletPoint3 : Objective lens:5X/10X/20X/50X
BulletPoint4 : Condenser：Roll-out Achromatic Condenser (N.A0.9) with Polarizing Mirror Group,can be Rotated 360°,Adjustable scales
BulletPoint5 : This Product Does Not Contain Interference Plates; If Necessary,Please Purchase it Separately.

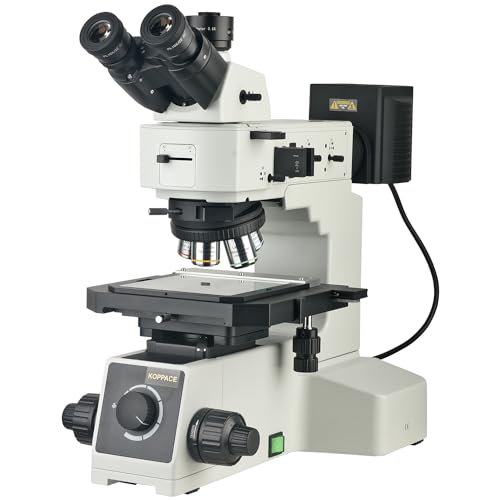

ItemName : KOPPACE 50X-500X Trinocular Metallographic Microscope Light and Dark Field,Polarized DIC Observation 4 inch Large Platform
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 40 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-stereo-microscopes
Manufacturer : KOPPACE
Material : Aluminum
ModelNumber : Sanpyl12g48crm35
NumberOfItems : 1
PartNumber : KP-MX600
ProductDescription :

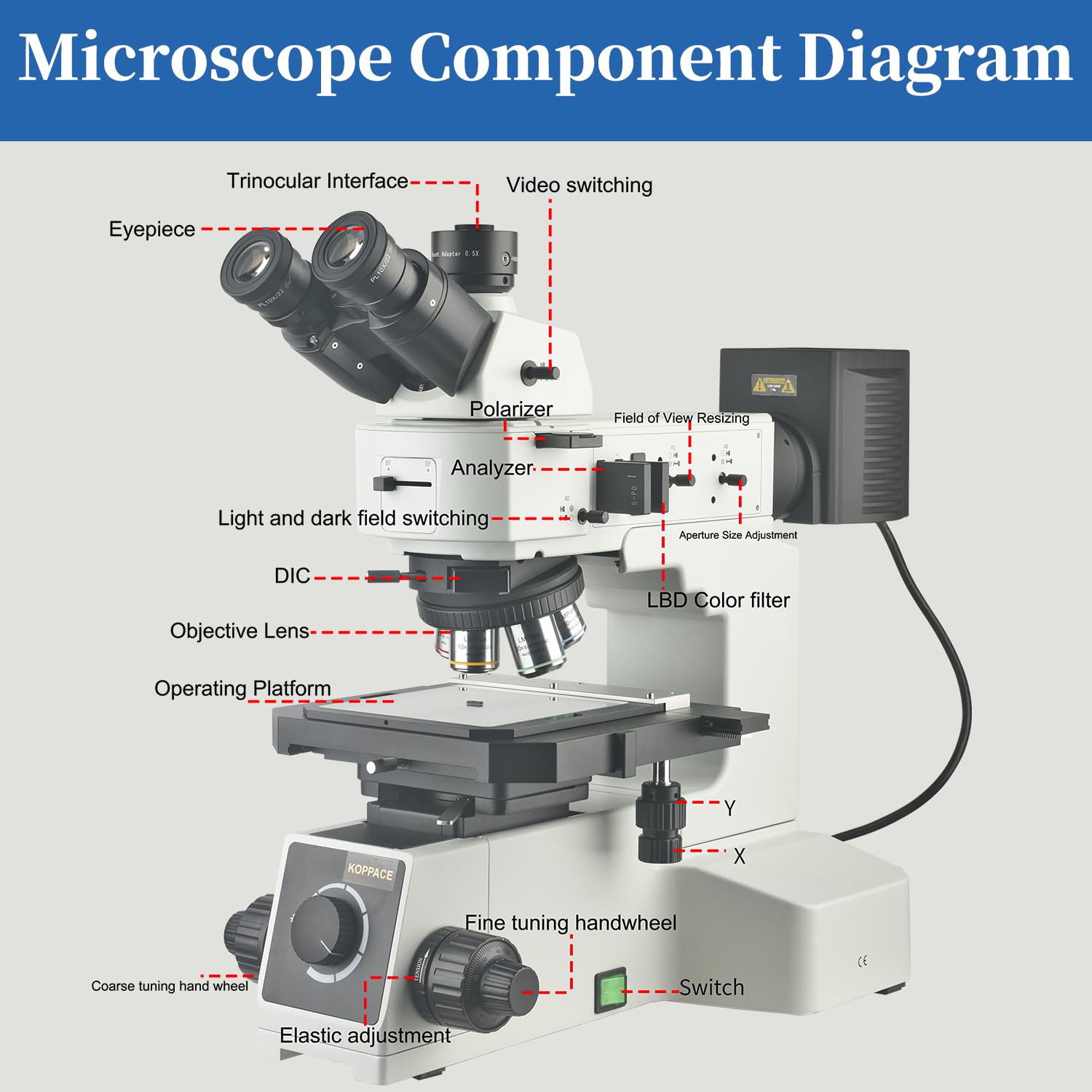

Model：KP-MX600
Optical Magnification：50X,100X,200X,500X
Optical System：Infinity Chromatic Aberration Correction Optical System
Eyepiece：High Eye Point large Field of View flat Field Eyepiece PL10X22mm
Objective Lens：
LMPL-BD Infinite long Working Distance Bright and Dark Field Metallographic Objective
LMPlan 5X/0.15 BD WD 9mm
LMPlan 10X/0.3 BD DIC WD 9mm
LMPlan 20X/0.45 BD DIC WD 3.4mm
LMPlan FLN 50X/0.55 BD WD 7.5mm
Observation Tube：30° Tilt,,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm,Unilateral Diopter Adjustment:±5 Diopter.
Objective Lens Converter：Bright and Dark Field Five-Hole Converter With DIC Slot
Coarse and Fine Focusing Mechanism：
Translucent and Reflective Frame,Front low-Hand Position Coarse and Fine Coaxial Focus Adjustment Mechanism.Coarse Adjustment Stroke 33mm,Fine Adjustment Accuracy 0.001mm.With Adjustment Elastic Device to Prevent Sliding and Random Upper limit Device

Under Lighting System：Single High-Power 5W Warm Color LED White Light,Continuous Adjustable Light Intensity
Condenser：Transmissive Shake-Out Achromatic Condenser (N.A0.9) With Variable Aperture Stop,Center Adjustable
Polarizer：Polarizer Insert Plate,360°Rotating Analyzer Insert Plate
Trinocular Interface：0.5X C-mount Interface,Adjustable Focus

Packing list:
1、A Pair of Eyepieces PL10X/22mm
2、0.5X Trinocular Interface *1
3、Objective lens LMPlan 5X/0.15 BD WD 9mm *1
4、Objective lens LMPlan 10X/0.3 BD DIC WD 9mm *1
5、Objective lens LMPlan 20X/0.45 BD DIC WD3.4mm *1
6、Objective lens LMPlan FLN 50X/0.55 BD WD7.5mm *1
7、Microscope Body *1
8、Light Box Power Cord *1
9、Analyzer *1
10、Polarizer *1
11、4-inch Platform *1
12、LBD Color filter *1

Note: This Product Does Not Contain Interference Plates,If Necessary,Please Purchase it Separately.

ProductSiteLaunchDate : 2024-01-27T02:53:14.456Z
SupplierDeclaredDgHzRegulation : not_applicable
WarrantyDescription : 1 year
