Specification
Brand : JCZX

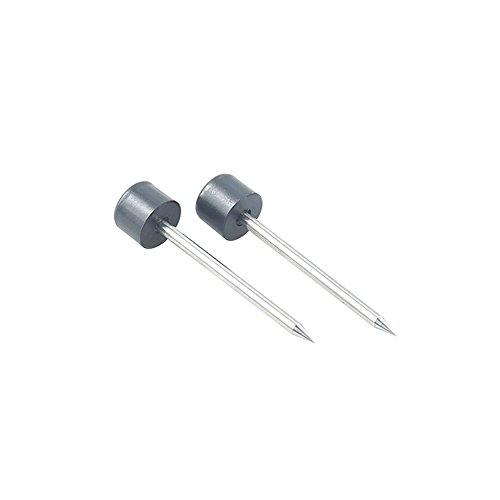

BulletPoint1 : Fiber Tool Electrodes for JILONG KL- 260C/260T/280/280G/300T/300 Fusion Splicer
BulletPoint2 : Use life for splice 2500-3000 times
BulletPoint3 : Made in China
BulletPoint4 : 1 pair of Fiber Fusion Splicer Electrode Rod for KL- 260C/260T/280/280G/300T/300
BulletPoint5 : Note:Do not touch the tip of the electrode during the replacement process to prevent damage, and avoid the electrode falling inside the machine. The electrode position must be calibrated after the electrode is replaced
ExternallyAssignedProductIdentifier : 8011474057805
ItemName : Fiber Fusion Splicer Electrode Rod Fiber Optic Tools for KL-280 280G 300 300T 260
ItemTypeKeyword : arc-welding-stick-electrodes
Manufacturer : JCZX
Material : Metal
ModelNumber : JCZX-KL-28
PartNumber : JCZX-KL-280
ProductDescription :
Electrode cleaning and arc calibration:
1. After the electrode installation is completed, turn on the fusion splicer power switch
2. After the fusion splicer enters the initial screen, press the menu button to enter the first level menu.
3. Find the machine maintenance by moving the cursor and enter the cleaning electrode item. After confirmation, the machine will automatically discharge the cleaning and aging electrode.
4. Install the cut left/right fiber, find the arc position item by the movement of the cursor, and keep the end face of the fiber and the tip of the two electrodes at the position of three points and one line by operation. The machine will perform the discharge test and adjust according to the actual situation.
5. Finally, press the menu button to launch in sequence.


Note:
Do not touch the tip of the electrode during the replacement process to prevent damage, and avoid the electrode falling inside the machine. The electrode position must be calibrated after the electrode is replaced.

Package:
1x 1pair of fiber Fusion Splicer Electrode Rod for KL-280 280G 300 300T 260
ProductSiteLaunchDate : 2018-07-10T07:00:00.000Z
