Specification
Brand : CoCud
BulletPoint1 : ★ PCB Drill Bits Size --- Cutting edge diameter (CED): 1.3mm / 0.051"; cutting edge length: 10mm / 0.394"; shank diameter: 3.175mm / 1/8"; overall length: 38mm / 1-1/2".
BulletPoint2 : ★ Wide Applications --- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminium, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high precision special drilling equipment.
BulletPoint3 : ★ Sharp Cutting Edge --- Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat.
BulletPoint4 : ★ Tungsten Carbide --- Tungsten carbide tip has high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience.
BulletPoint5 : ★ Useful Tips --- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. The positioning ring reduces machine set-up time and increase efficiency.
Color : Dark Green
CutType : Carbide-Tipped Cut
ExternallyAssignedProductIdentifier1 : 0618794262186
ExternallyAssignedProductIdentifier2 : 618794262186
ExternallyAssignedProductIdentifier3 : 00738685454145
FinishType : Uncoated
GpsrSafetyAttestation : 1
IncludedComponents : 1 Amana Branded Tool

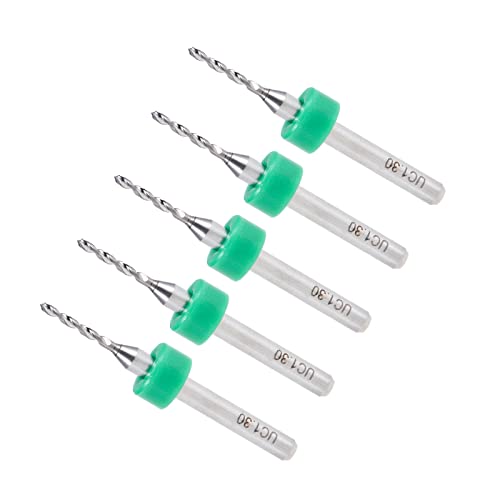

ItemName : CoCud Micro PCB Drill Bits, 1/8" Shank 1.3mm Cutting Edge, Tungsten Carbide Print Circuit Board Drill Bit - (Applications: for CNC Drilling Engraving Machine), 5-Pieces
ItemPackageDimensions_Height : 9 centimeters
ItemPackageDimensions_Length : 1.6 centimeters
ItemPackageDimensions_Width : 6.1 centimeters
ItemPackageQuantity : 5
ItemTypeKeyword : straight-router-bits
Manufacturer : CoCud
Material : Tungsten Carbide, High Speed Steel
ModelNumber : cuf221104dd0425
NumberOfFlutes : 2
PartNumber : cuf221104dd0425
ProductDescription : Attributes:

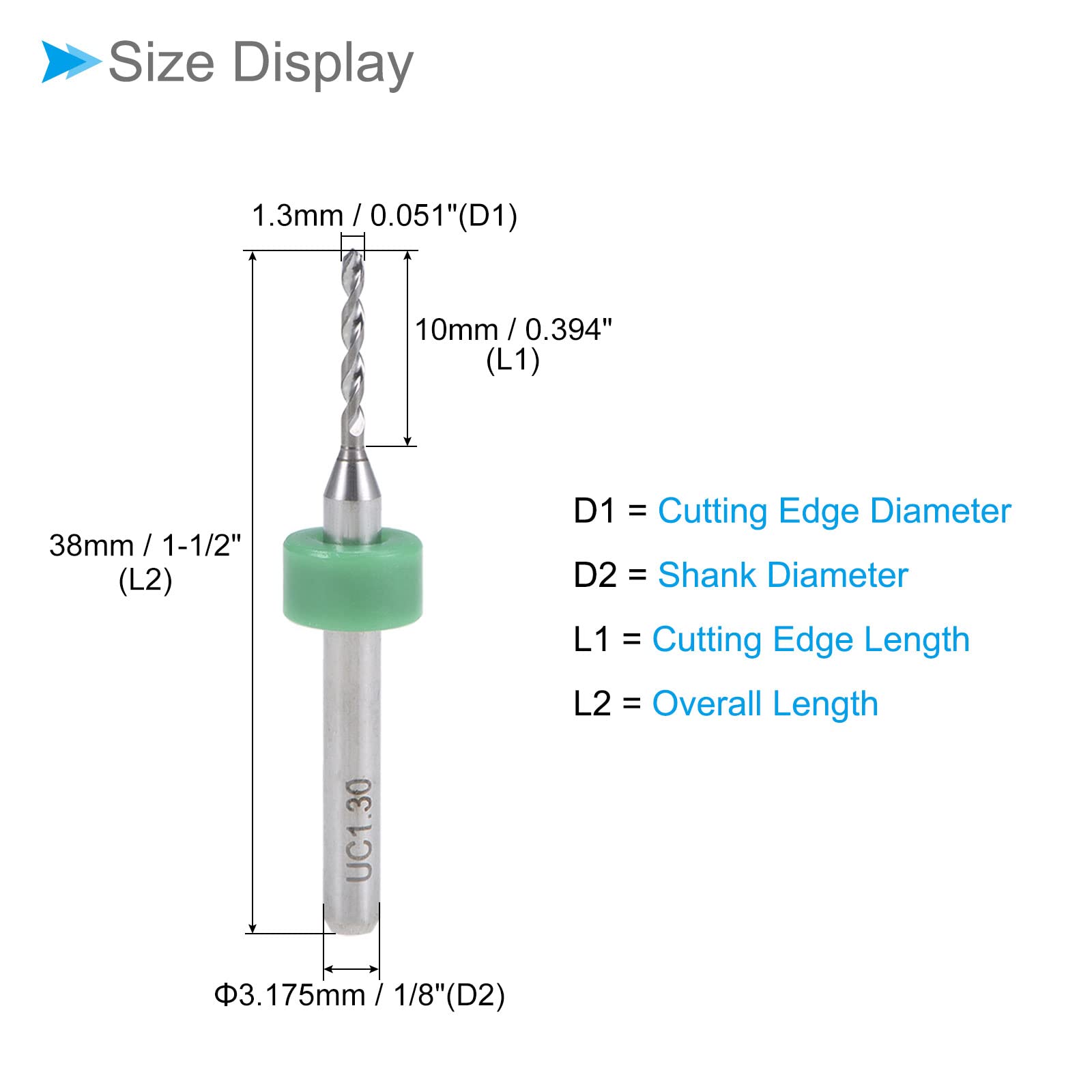

* Cutting Edge Diameter (CED): 1.3mm / 0.051"
* Cutting Edge Length: 10mm / 0.394"
* Shank Diameter: 3.175mm / 1/8"
* Overall Length: 38mm / 1-1/2"
* Cutting Edge Material: Tungsten Carbide
* Shank Material: HSS (High Speed Steel)

What Is Included:
* 5 Pieces x PCB Drill Bits

Applications & Features:
--- Widely used for drilling PCB (print circuit board), acrylic, plastics, aluminium, soft metal, fiberglass, wood, etc. Suitable for PCB drilling machines, engraving machines, CNC and high precision special drilling equipment. Use vertically and control your CNC speed well. Can work quickly and cleanly, no glitches or scrap left.
--- Tungsten carbide bits have high hardness, good toughness, wear resistance, high strength, resistance to bending and heat resistance, providing a precise and easy experience. With good milling and engraving performance, carbide materials can run at higher speed than high-speed steel to ensure high work efficiency. Sharp cutting edge provides smooth drilling, low cutting force and drilling accuracy to prevent tool breakage. Large chip removal space, smooth chip removal, and low drilling heat. The positioning ring reduces machine set-up time and increase efficiency.

Useful Tips:
--- The mini drill bit is too tiny and easily twisted off. Be careful and control your CNC speed. The longer the chuck clamps, the better. If the clamping length is short, the feed rate and cutting speed should be reduced to reduce vibration and increase tool life.
ProductSiteLaunchDate : 2023-02-25T12:32:42.472Z
Size : 1.3mm
SupplierDeclaredDgHzRegulation : not_applicable
SurfaceRecommendation : Alloy Steel
SurfaceRecommendation1 : Acrylic
SurfaceRecommendation2 : Fiber
SurfaceRecommendation3 : Metal
SurfaceRecommendation4 : Wood
UnitCount : 5
UnspscCode : 27112800
