Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Graigar
BulletPoint : TS-110 Surface Roughness Tester Transducer Curved Surface Sensor Suitable for Curved Workpieces with a Surface Radius of More Than 3mm
BulletPoint1 : The multifunctional shuttle key, directional keys, and shortcut keys work together to make the new menu operation more efficient A/B dual gates automatically trap echoes, with one click quick calibration for sound speed, delay, and angle;
BulletPoint2 : Automatically provide recommended parameter values, which can be quickly used with simple settings; gate A quickly and automatically searches for waves, while gate B widens the entire screen;
BulletPoint3 : 5 sets of 50 channel parameters can be set, and 460 sets of data can be obtained; Automatic adjustment of DAC curve standard quick selection, evaluation line, quantitative line, and rejection line height;
BulletPoint4 : Peak memory and envelope functions can be quickly activated with just one click; One click quick activation of peak memory and envelope functions;
BulletPoint5 : 400MHz hardware real-time sampling, combined with recording and playback functions, makes the flaw detection graphics realistic and delicate; 20MHz broadband low-noise amplifier, can be used with various probes to achieve high sensitivity or high resolution flaw detection; Compact in size, waterproof and earthquake resistant, especially suitable for outdoor and elevated aerial inspection operations
Color : Black
ExternallyAssignedProductIdentifier : 7448530840544
ExternallyAssignedProductIdentifier1 : 0707457582119
ExternallyAssignedProductIdentifier2 : 707457582119
IncludedComponents : /

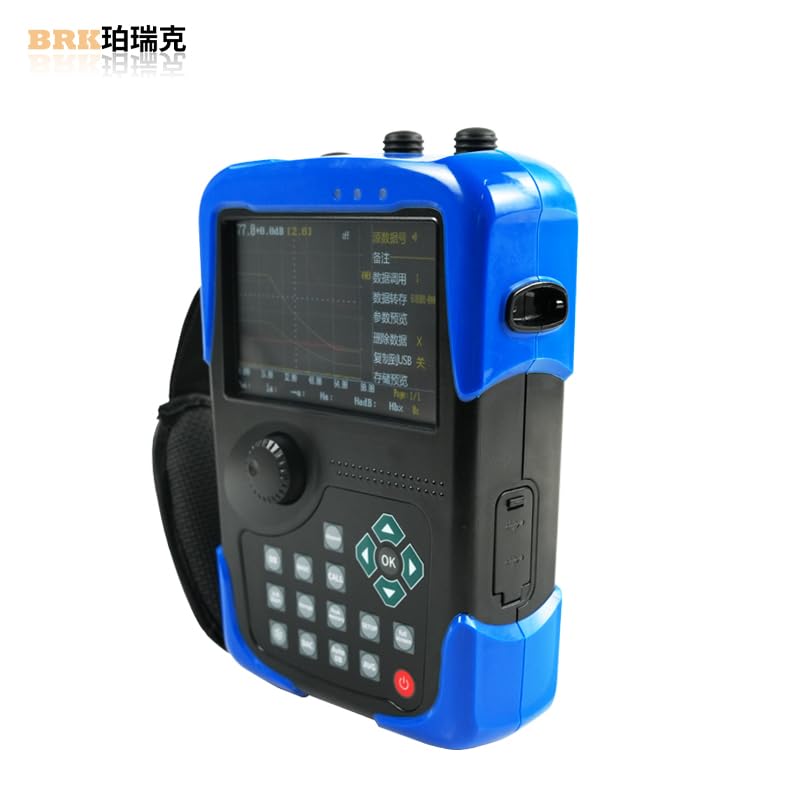

ItemName : M-Ultra Digital Ultrasonic Flaw Detector MINI-5Range 5-5000
ItemPackageDimensions_Height : 6.69 inches
ItemPackageDimensions_Length : 16.93 inches
ItemPackageDimensions_Width : 14.17 inches
ItemPackageQuantity : 1
ItemTypeKeyword : surface-roughness-gauges
Manufacturer : Graigar
Material : Plastic
MeasurementAccuracy : see the description
ModelName : MINI-5
ModelNumber : MINI-5
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
PartNumber : 02024080202
PowerSourceType : Battery Powered
ProductDescription :

Comparison Table of Instrument Parameters

Name

M-Ultra 5

M-Ultra 10

M-Ultra 20

MTNI 30

Range

5-5000

0-10000mm

0-15000mm

0-25000mm

Sound velocity

1000-15000

1000-15000

1000-20000

1000-25000

Sensitivity

margin for flaw

detection

≥60dB

≥62dB

≥65dB

≥66dB

Dynamic range

≥42dB

≥46dB

≥48dB

≥50dB

Horizontal

linear error

≤0.2%

≤0.1%

≤0.1%

≤0.1%

Vertical linear

error

≤3%

≤3%

≤2.5%

≤2%

Far-field

resolution

26dB

28dB

30dB

≥32dB

Memory

8G

8G

8G

8GB/expandable

to 64GB

Working

frequency

0-5,5-10

0-5,5-15

0-5,5-15,15-

25

0-5,5-15,15-25

Clutter

suppression

NO

YES

Up to 60%

inhibition

Up to 60%

inhibition

Noise reduction

NO

NO

Four level

noise

reduction

Four level noise

reduction

Launch pulse

400V sharp

pulse

400V sharp

pulse

400V sharp

pulse

Sharp

pulse/square

wave

Secondary

wave color

NO

YES

YES

YES

American

Welding

Society

Standard AWS

NO

YES

YES

YES

Comparison of

waveforms

NO

NO

YES

YES

Probe delay

0.0~199.9us

Gain

adjustment

0~110dB, divided into 0.0/0.1/0.5/1.0/2.0/6.0dB step adjustment

Damping

High, low3

Operation

mode

Single probe or dual probe

Detection

mode

Full wave/positive half wave/negative half wave/RF

Repetition

frequency

Available in three gears of 40/250/1000Hz

Pulse shift

-10.0~2000mm

Sampling rate

Hardware sampling rate 400MHz

Measurement

mode

Frontier or peak

Automatic gain

20%~85% Step by 5%

Communication

interface

There are two A/B type USB interfaces in total

Display

5.0 "high brightness TFT color LCD screen, 800 * 480 pixels

Power supply

AC:100-240V DC:15V3.8A

Working hours

Sustainable power supply for more than 6 hours

Working

environment

temperature

-10~+50℃

Whole machine

weight

About 1.0kg (including battery)4

Chapter 3 Instrument Appearance Structure

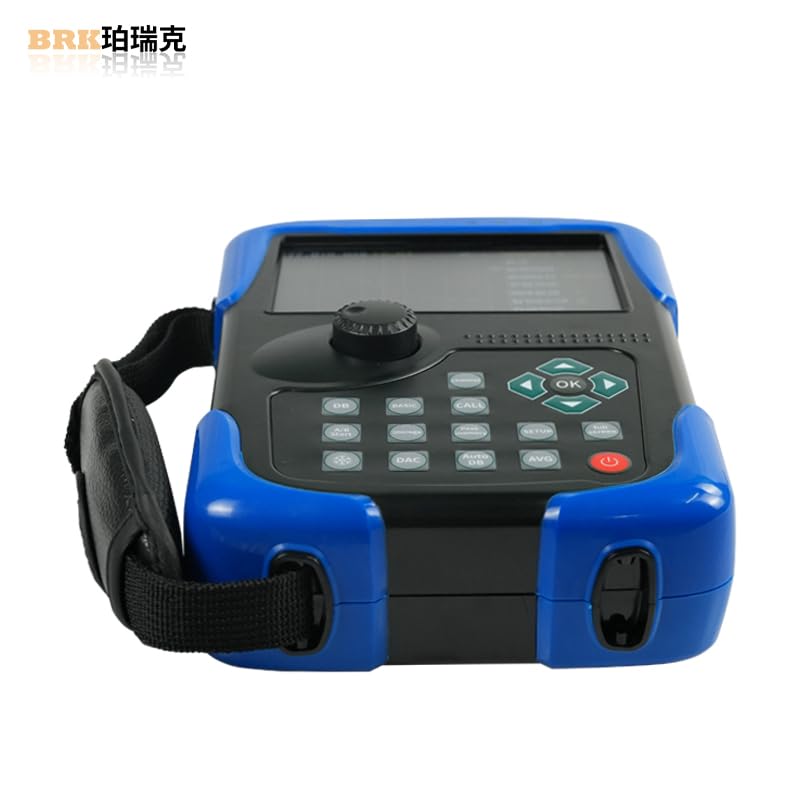

3.1 Instrument panel

The appearance of the instrument is shown in Figure 3-1.

Figure 3-1 Instrument Panel

3.2 Instrument interface

The interfaces of the instrument are shown in Figures 3-2 and 3-3, respectively

ProductSiteLaunchDate : 2018-10-16T07:00:00.000Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 20
