Specification
AgeRangeDescription : Adult
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Graigar
BulletPoint1 : Be compatible with four standards of ISO, DIN, ANSI and JIS.Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
BulletPoint10 : Upper and lower limit alarm can be set.
BulletPoint2 : Multiple parameter measurement: Ra, Rz, Rq, Rt.
BulletPoint3 : Highly sophisticated inductance sensor. Metric /Imperial Conversion.
BulletPoint4 : Built-in lithium ion rechargeable battery and control circuit with high capacity.
BulletPoint5 : Small in size, light in weight and easy to use.Manual or automatic shut down.
BulletPoint6 : Large capacity data storage, can store 100 item of raw data and measured profile;
BulletPoint7 : Reliable circuit and software design of prevent the motor stuck;
BulletPoint8 : All parameters can be printed or print any of the parameters which set by the user;
BulletPoint9 : The glass calibration sample is with high precision, not easy to be scratched and long service life;
CareInstructions : Wipe Clean
Color : Gray
ExternallyAssignedProductIdentifier1 : 0707457645616
ExternallyAssignedProductIdentifier2 : 707457645616
IncludedComponents : Main Unit
ItemName : SRT-6210 Digital Surface Roughness Tester Measuring Range Ra,Rq:0.005~16.00um
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : surface-roughness-gauges
Manufacturer : Graigar
Material : Plastic
MeasurementAccuracy : High
ModelName : SRT-6210
ModelNumber : SRT-6210
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
NumberOfWires : 1
PartNumber : SRT6210
PowerSourceType : Battery Powered
ProductDescription :

Specifications

Sensor

Radius of Probe Pin:5µm

Material of Probe Pin:Diamond

Measurement Force of Probe:4mN(0.4gf)

Probe Angle:90º

Vertical Radius of Guiding Head:48 mm

Maximum Driving Stroke:17.5mm/0.7inch

Cutoff length(l):0.25mm,0.8mm,2.5mm

Driving Speed

Sampling:

When Length=0.25mm,Vt=0.135 mm/s

When Length=0.8mm,Vt=0.5mm/s

When Length=2.5mm,Vt=1mm/s

Returning:Vt=1mm/s

Measuring Range：

Ra,Rq:0.005~16.00µm/0.020~629.9µinch

Rz,Rt:0.020~160.0µm/0.078~6299µinch

Standards：GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1

Parameters：Ra,Rq,Rz,Rt

Accuracy:<<±10%

Fluctuation of Display Value:<<6%

Resolution:0.001/0.01/0.1

Profile Digital Filter:RC,PC-RC,GAUSS,D-P

Evaluation Length:1L~5L Optional

Data Memorize:7 Groups

Operating Conditions:Temp:0ºC~50ºC/Humidity:<80%RH

Power Supply:Bulit-in Rechargeable Li-ion Battery

Dimensioms:140mmx52mmx48mm

Weight:420g

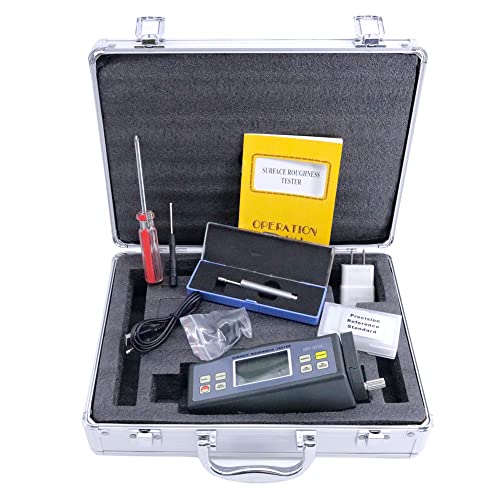

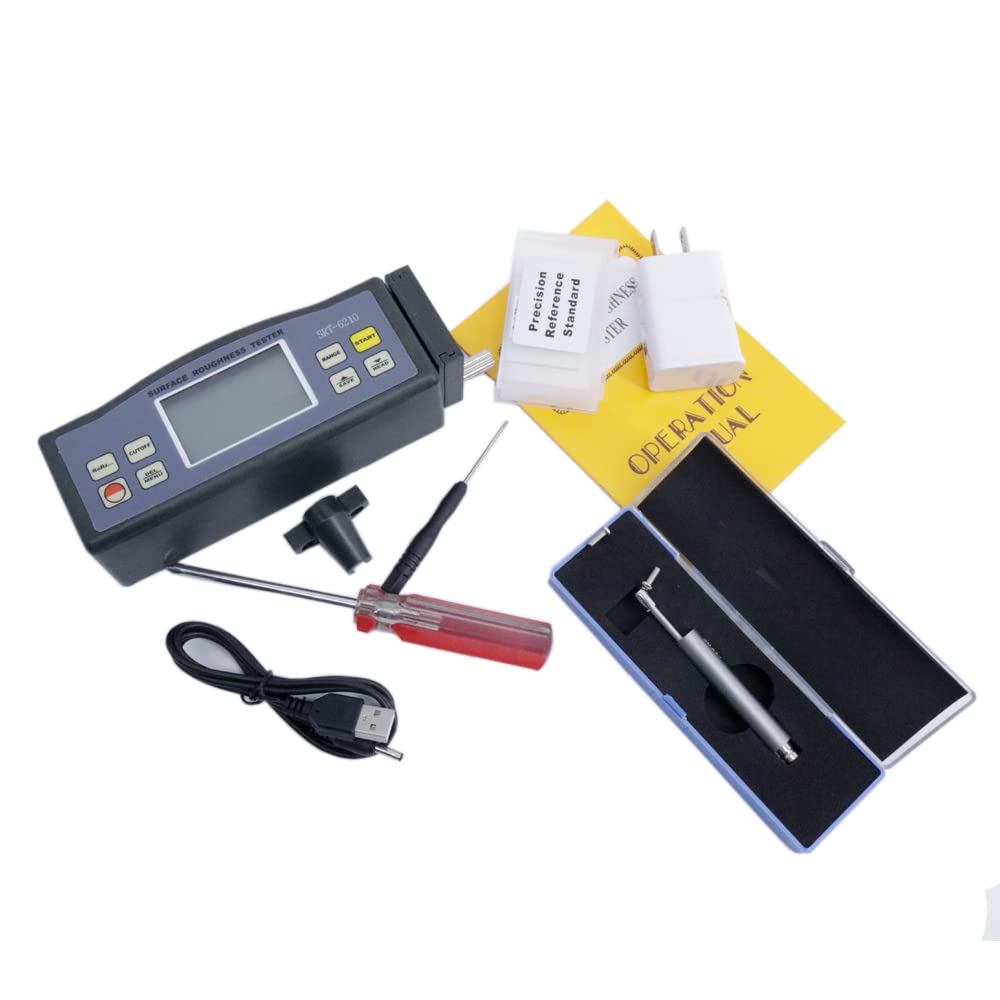

Standard Accessories

Main Unit

Standard Sample Plate SSP-100

Standard Sensor SSP-100

Small Screwdriver

Carrying Case ( B09 )

Operation Manual

ProductSiteLaunchDate : 2023-05-31T08:13:15.321Z
Reusability : Reusable
Size : Medium
Strands : Single Strand
Style : Triode Temperature Sensor
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
WebsiteShippingWeight : 0.022 kilograms
