Specification
Brand : Heschen
BulletPoint1 : Maximum continuous operating voltage (Ucpv): 1000 VDC
BulletPoint2 : Nominal discharge current (In): 20 kA; Maximum discharge current (Imax): 40 kA
BulletPoint3 : Voltage protection level (high): ≤4.0 kV
BulletPoint4 : Response time: <25ns, IP 20, 50/60Hz
BulletPoint5 : TUV, CB, CE, RoHS
BulletPoint6 : Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance
CircuitBreakerType : Standard
Color : ‎White
ConnectorType : Plug-In
CurrentRating : 20 amps
ExternallyAssignedProductIdentifier : 9179052681688
IncludedComponents : 1.

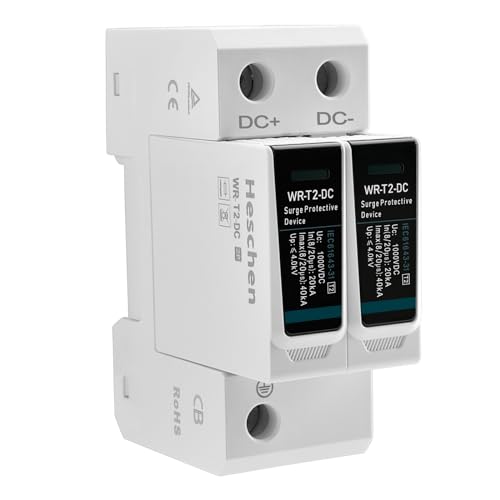

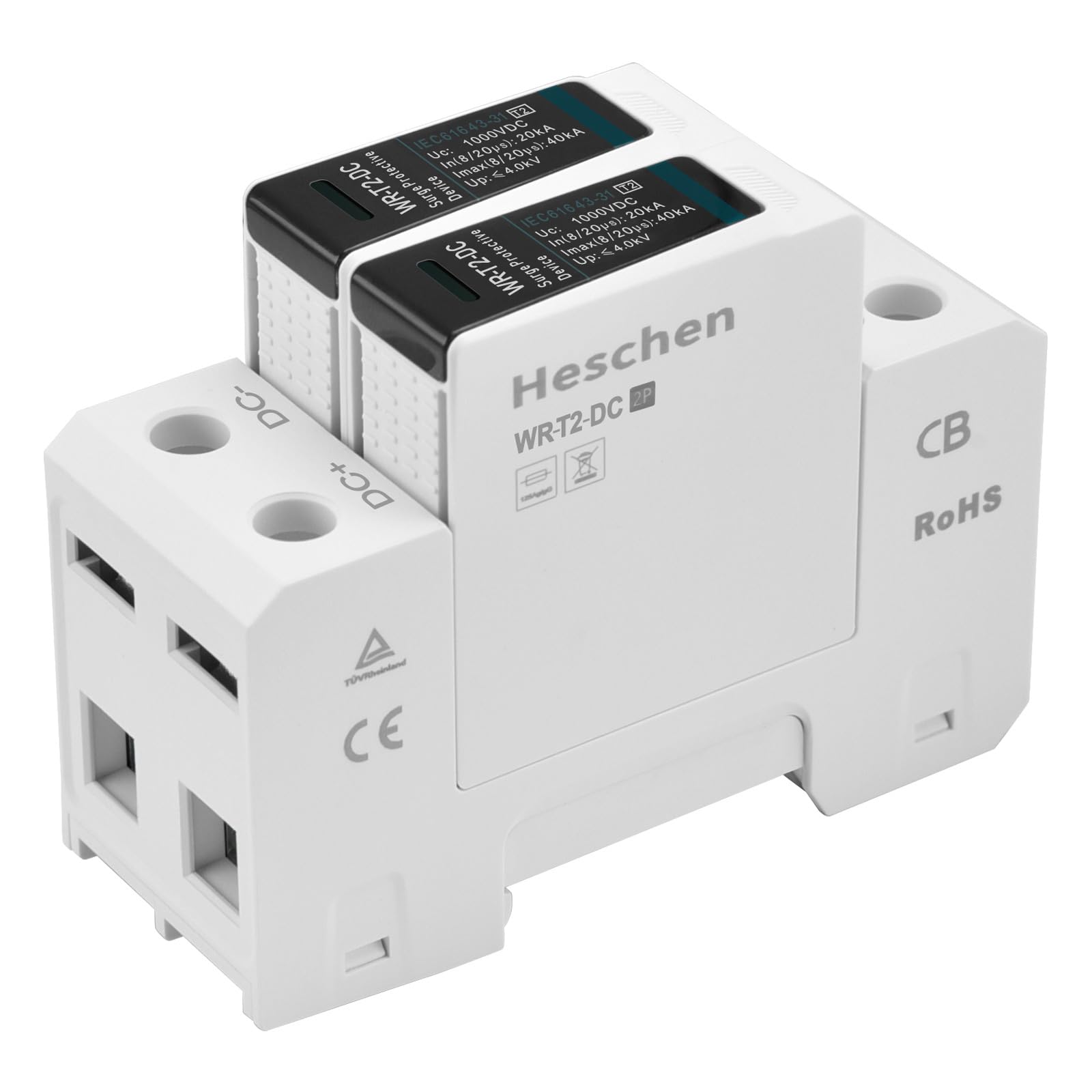

ItemName : Heschen DC Surge Protection Device for PV, WR-T2-DC, 2P 1000VDC 20kA, T2 Type, Flame Retardant, 35mm DIN Rail Mount, TUV CB Approved
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 9.5 centimeters
ItemPackageDimensions_Width : 7.2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-surge-protectors
Manufacturer : Heschen Electric Co.,Ltd
MaximumSwitchingVoltage : 150 volts
MeasurementSystem : Imperial
ModelName : POCREATIONyzkp65dw9c
ModelNumber : WR-T2-DC 2P 1000VDC
MountingType : DIN Rail Mount
NumberOfItems : 1
NumberOfPoles : 2
OperationMode : Automatic
PartNumber : WR-T2-DC 2P 1000VDC
ProductDescription : WR-AC series Surge Protection Device (SPD) is appropriately used in IT, TT, TN-C, TN-S, TN-C-S, TN-C-S and low voltage power distribution systems, rated voltage up to 380V, to protect from direct and indirect lighting pulses and other transient surges. The SPD has two protection modes: MC and MD.
SPD as a single side of the terminals, able to prevent any electrical contact, fixed mounted inside, limiting voltage.

SPD has a built-in disconnector, when the SPD is invalid due to overheating or failure, the disconnector can automatically separate the SPD from the network, while sending an indication signal. The visible window shows the green color in normal operation, if it needs to be separated from the network, it will show the color red 1P+N, 2P+N, 3P+N SPD consist of 1P, 2P, 3P SPD and NPE neutral and grounding protection modules, used in TT, TN-S power system, etc. Secondary protection for the line. Normal Green; Red Invalidation
ProductSiteLaunchDate : 2024-01-06T17:27:22.178Z
Size : 20-40kA
Style : RV Surge Protector 30 Amp+30 Amp to 50 Amp Adapter
SupplierDeclaredDgHzRegulation : not_applicable
SystemBusStandardSupported : SATA 2
UnitCount : 1
UnspscCode : 39121601
Voltage : 380 volts
