Specification
Brand : Heschen
BulletPoint1 : Max Continuous Operating Voltage：1300VDC
BulletPoint2 : Voltage Protective Level: 4.0kV
BulletPoint3 : Rated working voltage Un: 1000VDC
BulletPoint4 : Max discharging current: 40kA
BulletPoint5 : Response Time: <25ns, IP 20, 50/60Hz
CircuitBreakerType : Standard
CurrentRating : 40000 amps

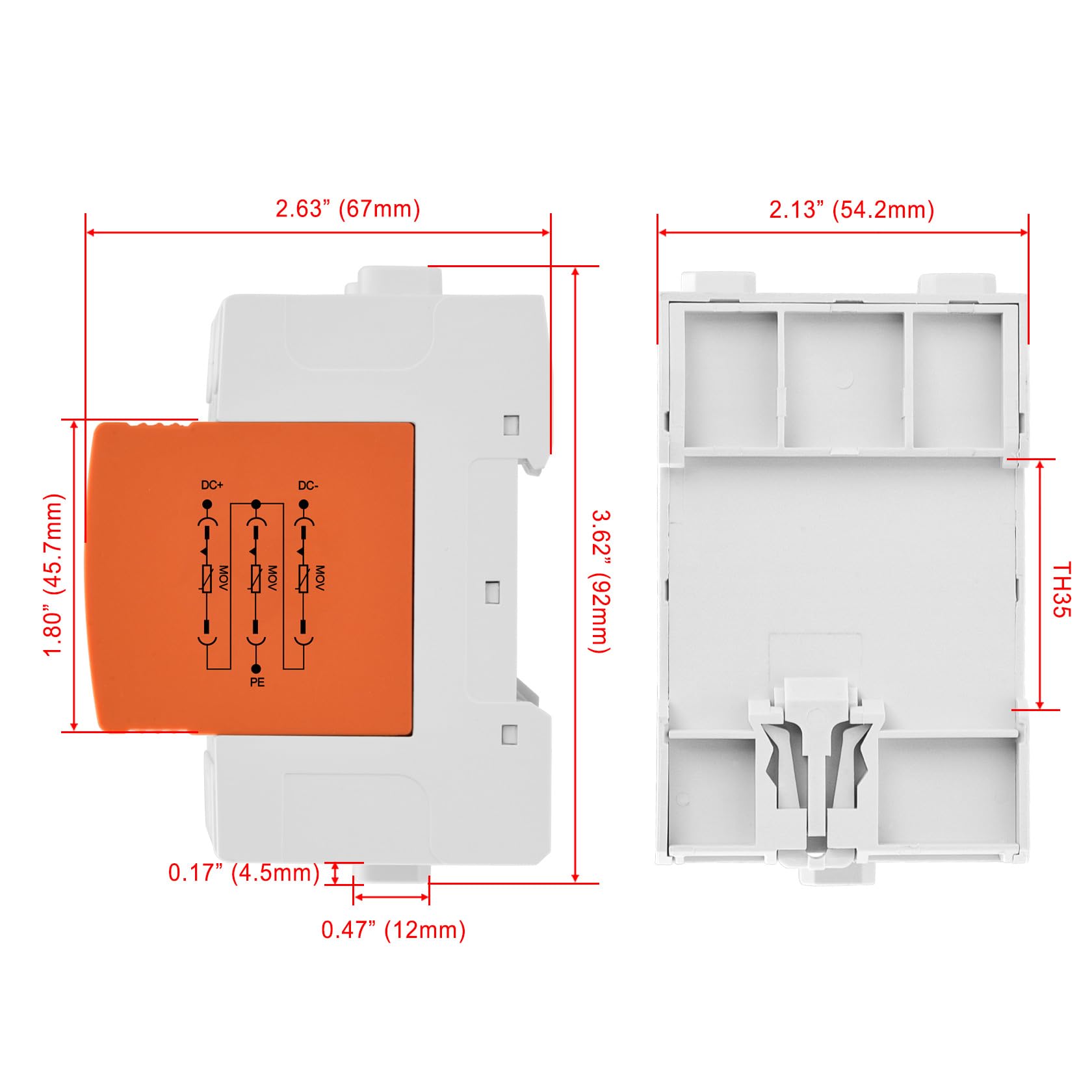

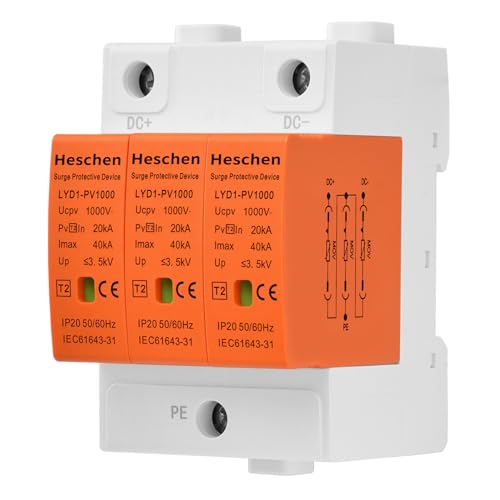

ItemName : Heschen Surge Protective Device for PV, LYD1-PV1000, 3P 1000VDC 20KA, 35mm DIN Rail Mounting
ItemPackageDimensions_Height : 9.7 centimeters
ItemPackageDimensions_Length : 5.9 centimeters
ItemPackageDimensions_Width : 7.3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-surge-protectors
Manufacturer : Heschen
ModelNumber : LYD1-PV1000
MountingType : DIN Rail Mount
NumberOfPoles : 3
PartNumber : LYD1-PV1000 3P
ProductDescription : LYD1-PV surge protective device(SPD) is mainly used in photovoltaic low voltage DC distribution system to prevent lighting impulse. The product applied for the full new design, its highest continuous operating voltage up to 1300V, able to effectively prevent the solar battery plates, photovoltaic busbar box, DC distribution cabinet, inverters and other photovoltaic equipment from being damaged by the surge current.

U-type structure, limiting pressure type combination. Differential mode common mode protection mode

Built-in overheating , over-current protection mechanism

Local fault indication, white for normal operation, red after tripping.

ProductSiteLaunchDate : 2021-05-24T05:01:38.634Z
UnspscCode : 39121601
Voltage : 1000 volts
