Specification
Amperage : 15 amps
Brand : Heschen
BulletPoint1 : Maximum continuous operating voltage (UCPV): 1500V DC
BulletPoint2 : Rated Discharge Current (In): 20KA; Maximum Discharge Current (Imax): 40 kA
BulletPoint3 : Voltage protection level (up): ≤ 5.2 kV
BulletPoint4 : Response time: <25ns, IP 20, 50/60Hz
BulletPoint5 : TUV, CB, CE, RoHS
CircuitBreakerType : Standard
Color : ‎White
CompatibleDevices : pc,refrigerator
ConnectorGender : Male-to-Female
ConnectorType : Plug In
IncludedComponents : WR-T2-DC 3P 1500VDC
InputCurrent : 30 amps
ItemLength : 36 inches

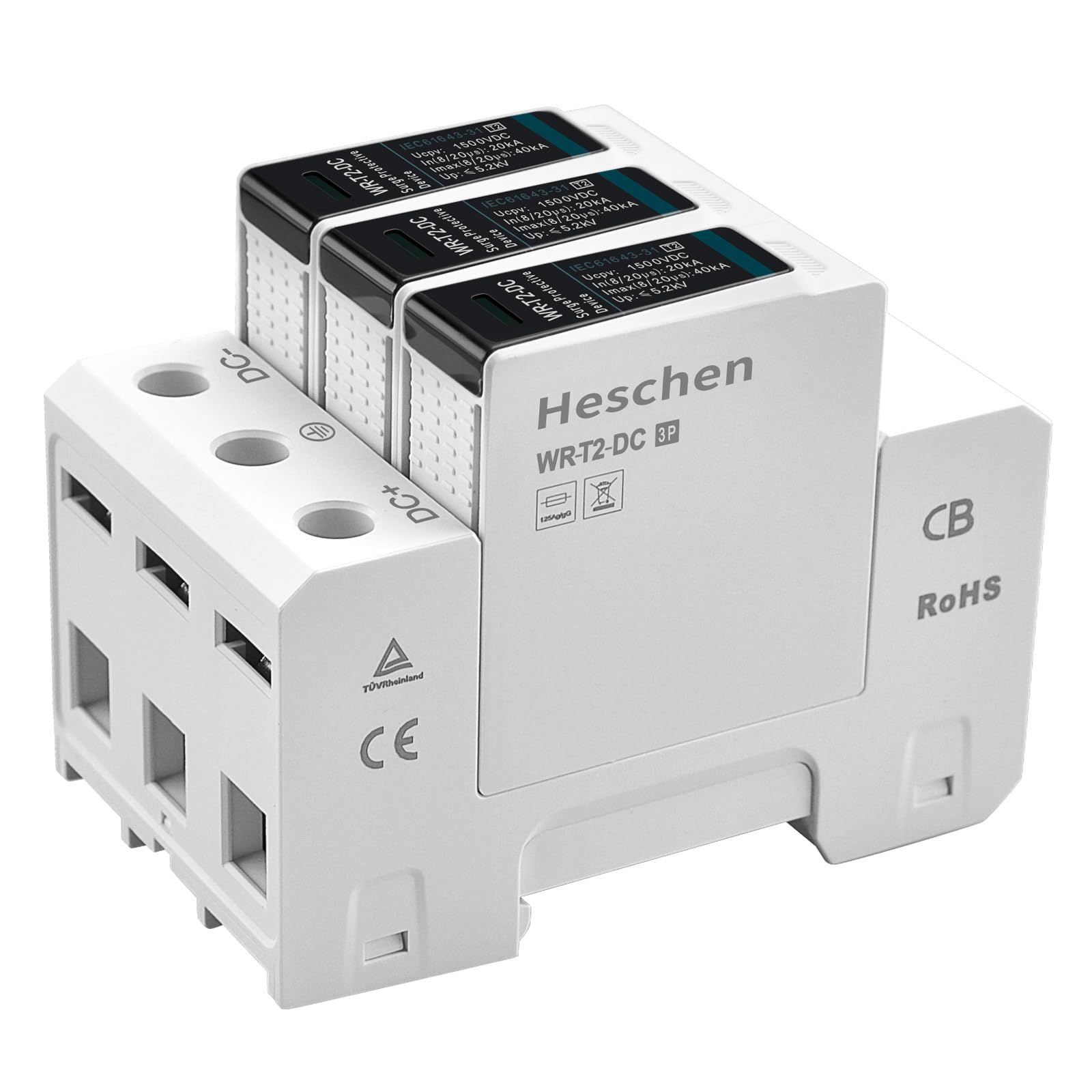

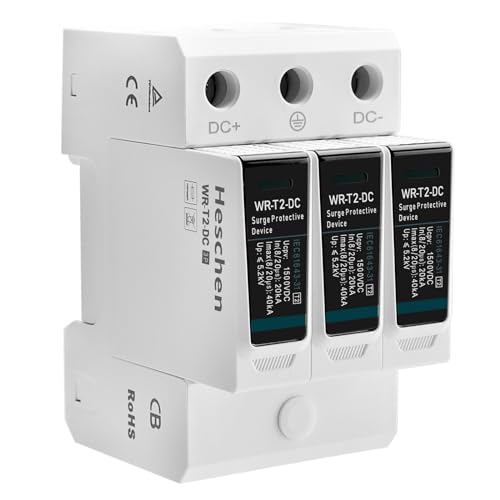

ItemName : Heschen WR-T2-DC 3P 1500V DC 20KA Type T2 Fire Retardant DC Surge Protector 35mm DIN Rail Mounted TUV CB Certified
ItemPackageDimensions_Height : 5.3 centimeters
ItemPackageDimensions_Length : 9.3 centimeters
ItemPackageDimensions_Width : 7.2 centimeters
ItemShape : Flat
ItemTypeKeyword : electronic-surge-protectors
Manufacturer : Heschen Electric Co.,Ltd
Material : Polycarbonate (PC)
Material1 : PVC
Material2 : Polyvinyl Chloride
Material3 : Copper
ModelNumber : WR-T2-DC 3P 1500VDC
MountingType : DIN Rail Mount
NumberOfItems : 1
NumberOfPoles : 3
PartNumber : WR-T2-DC 3P 1500VDC
PowerPlugType : type_b_3pin_na
ProductDescription : The WR-AC series surge protector (SPD) is suitably used in AC IT, TT, TN-C, TN-S, TN-C-S and low voltage power distribution systems, rated voltage up to 380V, to protect against direct and indirect lighting pulses and other transient surges. SPD has two protection modes: MC and MD.

SPD as only one side of the terminals, can prevent electrical contact, fixed mounted indoors, limiting voltage.

SPD is equipped with built-in disconnector, when the SPD is invalid due to overheating or failure, the disconnector can automatically separate the SPD from the network, meanwhile sending an indication signal. Visible window will show green color during normal service, if need to be separated from network, it will show red color

SPD 1P+N, 2P+N, 3P+N composed of SPD 1P, 2P, 3P and NPE neutral and earth protection modules, used in the power supply system of TT, TN-S and so on.

Secondary protection for in-line.

Normal Green; Red Invalidation

ProductSiteLaunchDate : 2024-01-06T11:16:56.423Z
RecommendedUsesForProduct : Outdoor
Style : BSEED US Plug Home Appliance Surge Protector
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TotalPowerOutlets : 6
UnspscCode : 39121601
Voltage : 380 volts
