Specification
Brand : CALT

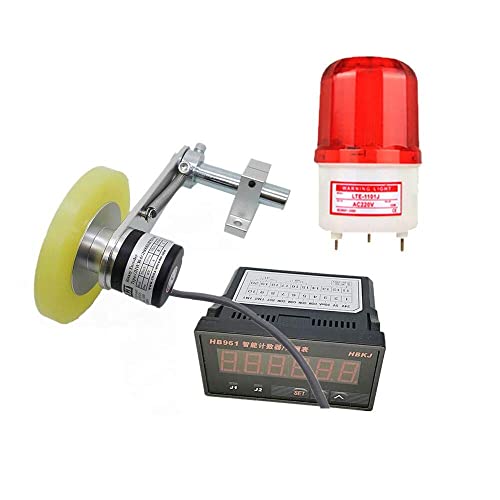

BulletPoint1 : Including: 1pc encoder, 1pc bracket, 1pc HB961 Indicator, 1pc alram, 1pc 300mm perimeter wheel and screws
BulletPoint2 : Power supply 5-26V, NPN output, 1000PPR
BulletPoint3 : min measuring unit:1mm
BulletPoint4 : The output waveform is proportional to the unit of international measurement type(Meter or inch)
BulletPoint5 : Widely used in length or distance measurement
Color : picture color
ConnectivityProtocol : X-10
ConnectorType : Clamp
ExternallyAssignedProductIdentifier : 7431906911924
ExternallyAssignedProductIdentifier1 : 0754191885150
ExternallyAssignedProductIdentifier2 : 754191885150
IncludedComponents : not to fill
InternationalProtectionRating : IP54
ItemName : CALT GHW38 Roller 300mm Rubber Wheel Length Position Meter Measuring Pulse Rotary Encoder 1000PPR NPN Output with HB961 Indicator and alram Steel Mounting Spring Bracket
ItemPackageDimensions_Height : 6.35 centimeters
ItemPackageDimensions_Length : 1.27 centimeters
ItemPackageDimensions_Width : 3.302 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : switch-encoders
Manufacturer : CALT
Material : Aluminum
ModelName : GHW38
ModelNumber : 1000PPR300mm+HB961+AL

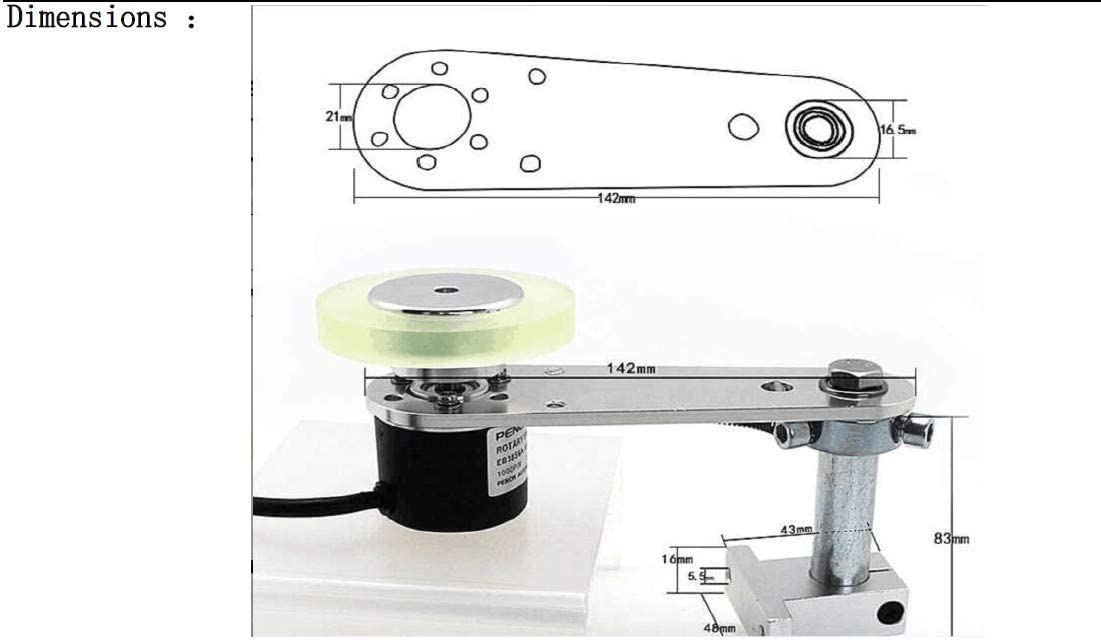

MountingType : Clamping Flange
NumberOfItems : 1
OperatingVoltage : 30 volts
OperationMode : Rotary switch
PartNumber : GHW38
ProductDescription :

Description

Suitable for measuring the length or speed of target moving successively by wheel type,such as textile measuring ,printing measuring, Plastic Machinery etc .

Power supply: 5-26V
Shaft diameter: 8mm
Wheel perimeter :200mm
Encoder Body diameter: 38mm
Cable length: 1 meter
Pulse: 200P/R
Output: NPN open collector output with ABZ 3 signals
Output wave form: Square wave
Maximum shaft speed: 6000 rpm
Protection: IP54
Current consumption: ~150 mA
Maximum pulse: 100 KHz
Weight: about 0.25kg
Operating humidity: 30 to 85% without frost

Connection:
Red=VCC, Black = 0V, Green = A, White = B, Yellow = Z
Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output without pull-up resistor when there is no voltage output) If you want the oscilloscope in AB two-phase output with two pull-up resistors.
ProductSiteLaunchDate : 2016-04-14T07:00:00.000Z
Size : NPN output(C)
SpecificationMet : Ip/Ip 67
Style : Modbus RTU Output
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Temperature Switch
UnitCount : 1
UnspscCode : 31162500
