Specification
AgeRangeDescription : adult
Brand : DISIROU
BulletPoint1 : Professional design, beautiful appearance generous, counts the frequency response is fast and powerful.
BulletPoint2 : Die-casting alloy shell, the surface electric pensu processing, dustproof wear-resisting, good shielding.
BulletPoint3 : Professional design, independent power supply, to adapt to the range, high stability, strong anti-jamming capability.
BulletPoint4 : Power supply and signal anti-interference ability, and durable panel of buttons, change is simple and convenient.
BulletPoint5 : Directly on the digital table for functional operation functions such as sine, cosine, tangent function, convenient
Color : One Color
ExternallyAssignedProductIdentifier : 7704384674354

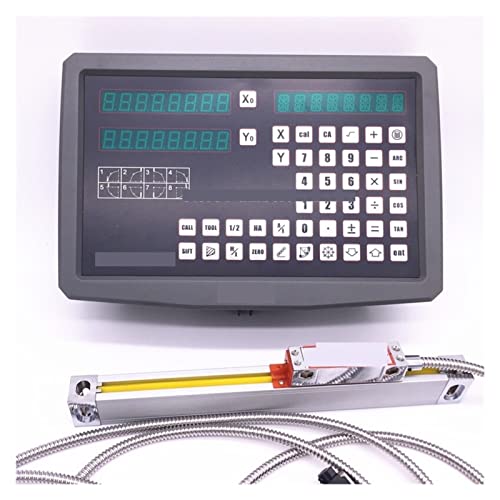

ItemName : DISIROU Linear Scale Encoder, GCS900-2DB 2 Axis Milling Lathe Digital Readout and 2 Pieces 0-1000mm Linear Scale (Complete Set with Accessories) for Lathe Milling
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : switch-encoders
Manufacturer : DISIROU
ModelName : 32722090392
ModelNumber : 32722090392
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 32722090392
ProductDescription : GCS900-2DB 2 Axis Milling Lathe Digital Readout and 2 Pieces 0-1000mm Linear Scale (Complete set with accessories)

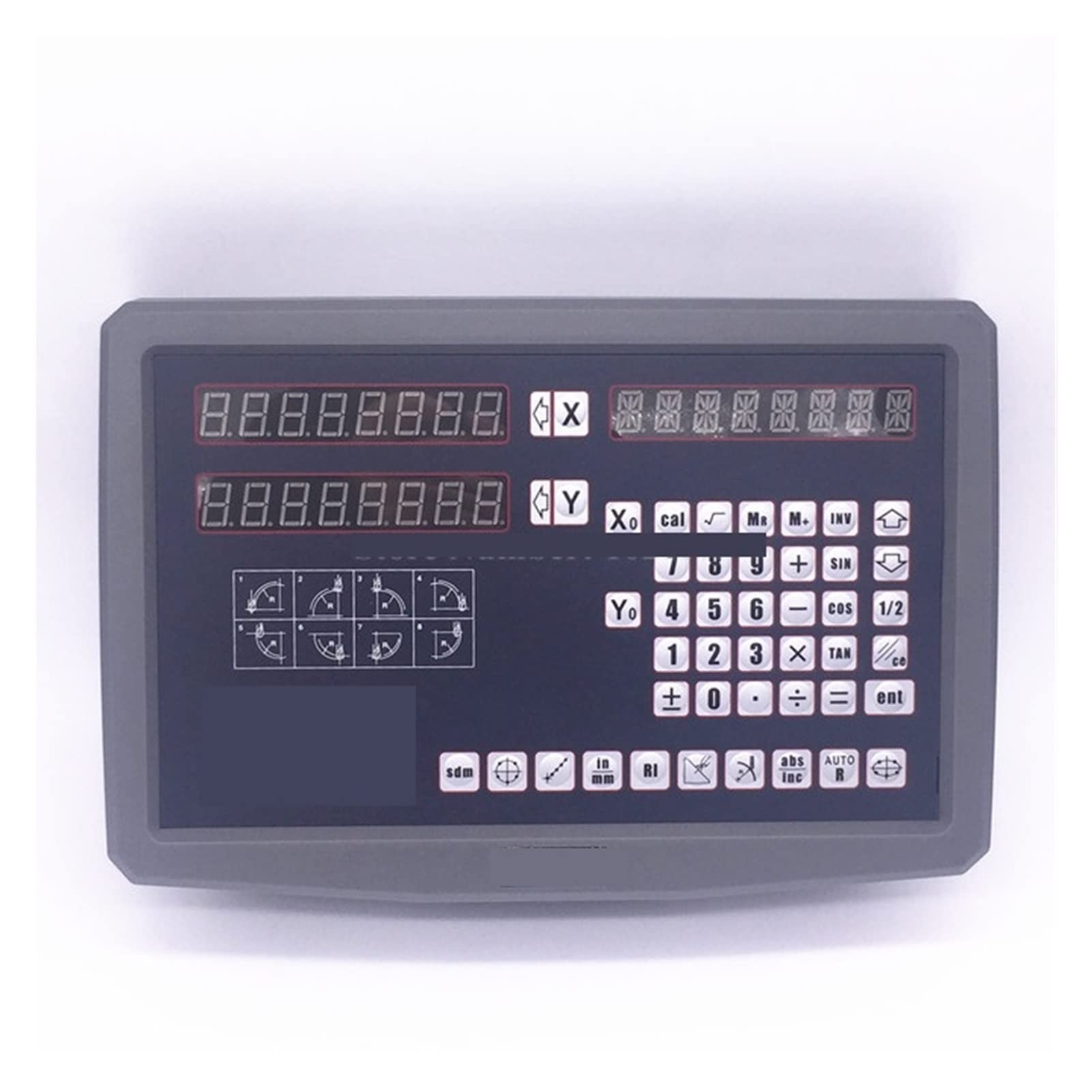

Digital readout Description
The digital readout in GCS series which producted by our company is a high precision instrument that can be used on lathe,grinding machine,milling machine,boring machine and EMD to make the position detection

Digital readout Basic Functions
1:zero clearing
2:reset
3:mm/inch mode
4:ABS/INC coordinate conversion
5: 200sets sub datum
6:power off Memory;
7:center of1/2
8:liner error compensation
9:sleepping mode
10:Clear 200 sets Sdm datum;
11:ABS/INC mode
12:calculator
13:drilling of circumference
14:drilling of oblique line
15:machining of inclined plane
16:machining of circular arc
17:lathe function(match)
18:Rectangular lumen gradual processing
19:digital filtering (grinder machine )
20.R function
21.Radius/Diameter function (lathe machine )
22.Z+Y sum (lathe machine)

In total ,it is a mutlifunctional 2 axis can be use on lathe machine, mill machine and other machines.

Technical Parameters
2.Power Consumption: 25VA
3.Coordinates: 1/2/3/4
4.: 7 digits
5.Input Signal: TTL square
6.Input Signal frequency: 100KHZ
7.Length resolution: 10um ,5um ,2um ,1um , 0.5um

Linear Glass Scales Features
1.High Precision linear scale
2.Resolution : 5um (0.005mm) 0.0002"
3.Signal : TTL square /wave EIA-442
4.Grating pitch: 0.02mm (50LP/min)
5.Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
6.Reference marks at interval of 50mm
7.Response Speed: 60m/min or 40ins/sec
8.Cable length: 3 Meter
Normal scale size
Slim scale size
Scale Size
Normal scale cross size: 21mm*33mm
Slim scale cross size: 20mm*28mm
Slim scale and normal scale all available for this order, slim scale needs not any extra.
Scale Length
100,150,200,250
ProductSiteLaunchDate : 2025-05-07T07:50:04.157Z
Size : One Size
UnitCount : 1
UnspscCode : 52140000
