Specification
Brand : JESSINIE
BulletPoint1 : W5500 ethernet network module integration hardware TCP/IP protocol; Internal 32K byte memory as TX/RX cache; Support 10/100Mbps transmission rate; Support 8 independent ports to run at the same time
BulletPoint10 : EXTREME TEMPERATURES : Industrial PoE switch rated for an operating temperature range of -40 – 75° C (-40 – 167° F)
BulletPoint2 : Support 3.3V or 5V power supply, 5V power supply can also output 3.3V power supply, convenient for users to use in different single chip microcomputer systems; The communication mode between the module and the single chip system is simple and convenient SPI communication.
BulletPoint3 : Supports hardware TCP/IP protocols: TCP, UDP, ICMP, IGMP, IPv4, ARP, IGMP, PPPoE and Ethernet
BulletPoint4 : SPI (Serial Peripheral Interface) provides an interface for easy connection with external MCU. W5500 supports SPI interface communication up to 80MHZ
BulletPoint5 : W5500 provides network wake-up and sleep modes, effectively low system power consumption
BulletPoint6 : REDUNDANT POWER: Redundant power inputs with overload current protection (power supply sold separately models: TI-S24052, TI-S24048 / TI-S48048)
BulletPoint7 : DIN-RAIL & WALL MOUNTS: IP30 rated metal enclosure with included DIN-rail and wall mount hardware
BulletPoint8 : GROUNDING POINT: Grounding point on the industrial PoE switch protects equipment from external electrical surges
BulletPoint9 : SHOCK & VIBRATION RESISTANT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Color : Black
CompatibleDevices : Arduino
CompatibleDevices1 : Desktop
CompatibleDevices2 : Laptop
CompatibleDevices3 : Printer
CompatibleDevices4 : Server
CompatibleDevices5 : Servers
ControlMethod : application
CurrentRating : 1 amps
CustomerPackageType : Standard Packaging
DataLinkProtocol : Ethernet
DataTransferRate : 100 megabits_per_second
ExternallyAssignedProductIdentifier : 8885020620924
ExternallyAssignedProductIdentifier1 : 710931161618
ExternallyAssignedProductIdentifier2 : 0710931161618
ExternallyAssignedProductIdentifier3 : 00710931161618
GpsrSafetyAttestation : 1
HardwareInterface : ethernet
IncludedComponents : Industrial Switch
IncludedComponents1 : TI-PG160
IncludedComponents2 : Quick Installation Guide
IncludedComponents3 : Removable terminal block
IncludedComponents4 : DIN-rail and wall mount kit
InterfaceType : RJ45
InterfaceType1 : PoE
InterfaceType2 : SFP

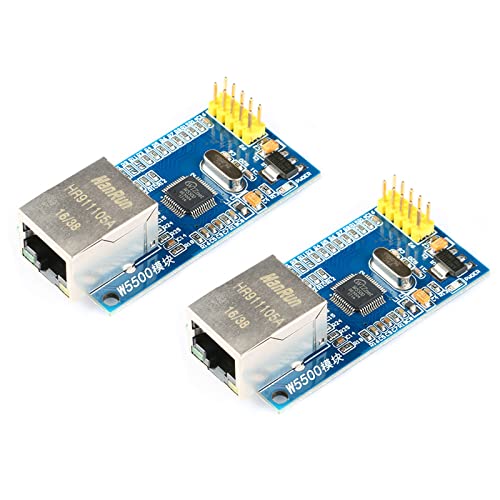

ItemName : JESSINIE 2Pcs W5500 Ethernet Network Module SPI Interface Full Hardware TCP/IP Protocol 3.3V 5V W5500 STM32 Microcontroller Ethernet Network for Arduino
ItemPackageDimensions_Height : 17.5006 centimeters
ItemPackageDimensions_Length : 2.0066 centimeters
ItemPackageDimensions_Width : 11.5062 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-switches
LowerTemperatureRating : -40 degrees_fahrenheit
Manufacturer : JESSINIE
MaximumPower : 240 watts
ModelNumber : TI-PG160
NumberOfItems : 2
NumberOfLayers : 2
NumberOfPorts : 16
PackageLevel : unit
PartNumber : TI-PG160
Platform : not_machine_specific

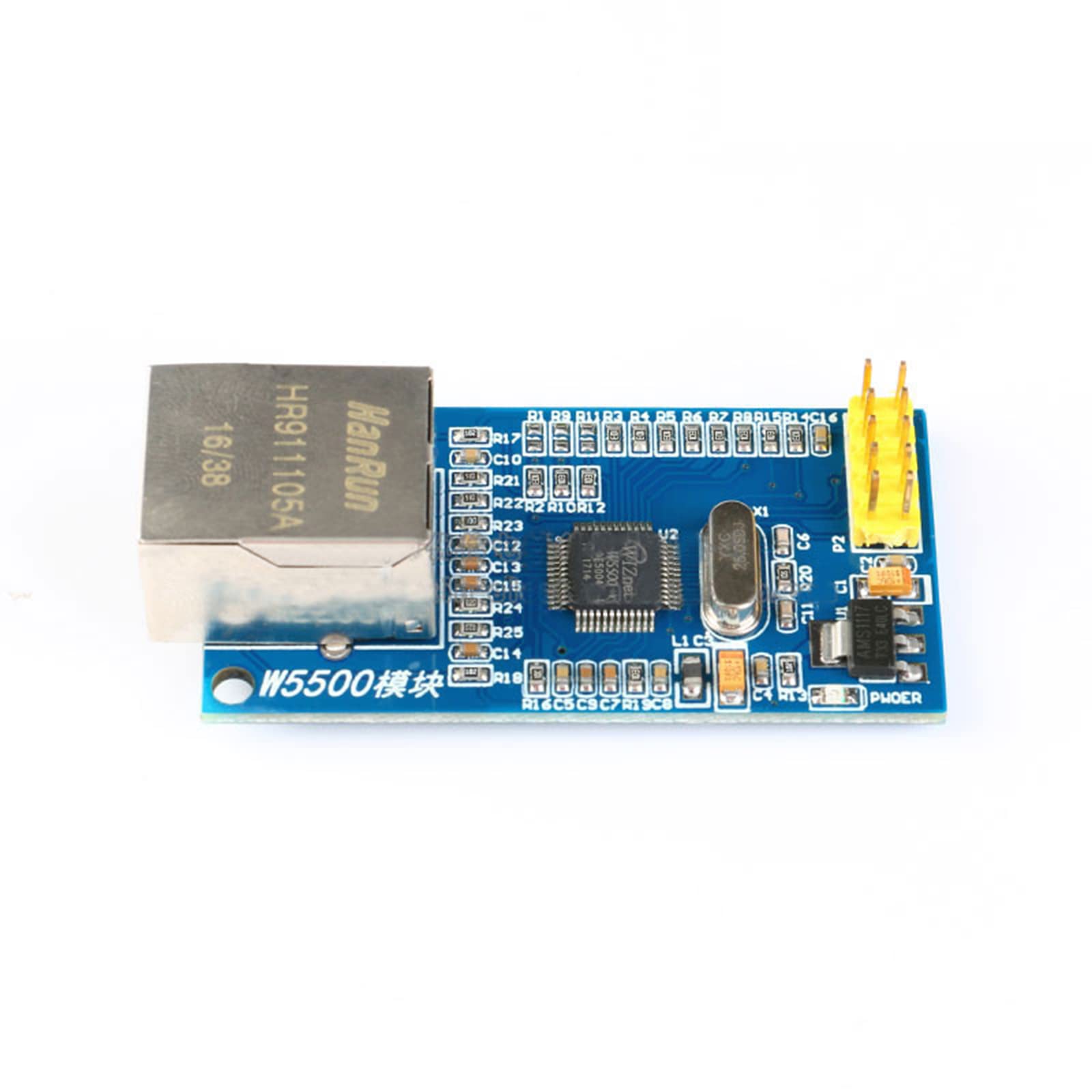

ProductDescription : W5500 chip is an embedded Ethernet controller using all-hardware TCP/IP protocol stack, which enables embedded systems to easily connect to the network through SPI (Serial Peripheral Interface) interface.
W5500 is composed of the integration of all hardware TCP/IP protocol stack, Ethernet network layer and physical layer. Its full hardware TCP/IP protocol stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE protocols. The W5500 uses a 32KB cache as its data communication memory. By using W5500, users can implement Ethernet applications by using a simple socket program instead of dealing with a complex Ethernet controller.
SPI (Serial Peripheral Interface) provides an interface for easy connection with external MCU. W5500 supports communication between SPI interfaces up to 80MHZ. In order to reduce the consumption of system power, W5500 provides network wake-up and sleep modes. W5500 will wake up when it receives a magic packet in the form of a raw Ethernet packet.

Supports hardware TCP/IP protocols: TCP, UDP, ICMP, IGMP, IPv4, ARP, IGMP, PPPoE and Ethernet
Supports 8 independent ports
Provide sleep mode
Provide network wake-up
Supports high-speed SPI bus (SPI mode 0,3)
Internal 32K byte memory as TX/RX cache
Embedded 10/100Mbps Ethernet Physical Layer
Support automatic negotiation (10/100-Based full duplex/half duplex)
IP segmentation is not supported
3.3V working voltage, I/O port can withstand 5V voltage
Multiple indicator signal output (full duplex/half duplex mode, network connection and network speed)

Module pin arrangement function:
3.3V:3.3V power input pin.
5V:5V power input pin
MISO:SPI host input slave output pin
GND: Power ground pin
MOSI:SPI Host Output Slave Input Pin
RST:W5500 Hardware Initialization Pin (Active Low)
SCS:SPI SLAVE select pin (active low)
INT:W5500 interrupt pin (active low)
SCLK:SPI clock pin
NC: hanging
ProductSiteLaunchDate : 2022-07-26T07:16:42.690Z
SkipOffer : 1
StreetDate : 2019-07-02T00:00:01Z
Style : 16 Port Switch
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchCapacitance : 32 gigabits_per_second
SwitchType : unmanaged
UnspscCode : 43220000
UpperTemperatureRating : 167 degrees_fahrenheit
Voltage : 52 volts_of_direct_current
Voltage1 : 24 volts
Voltage2 : 48 volts
WarrantyDescription : 1 YEAR
WarrantyDescription1 : Lifetime Limited Warranty
WarrantyDescription2 : Lifetime Limited Warranty
WarrantyDescription3 : Lifetime Limited Warranty
