Specification
Brand : Throncom

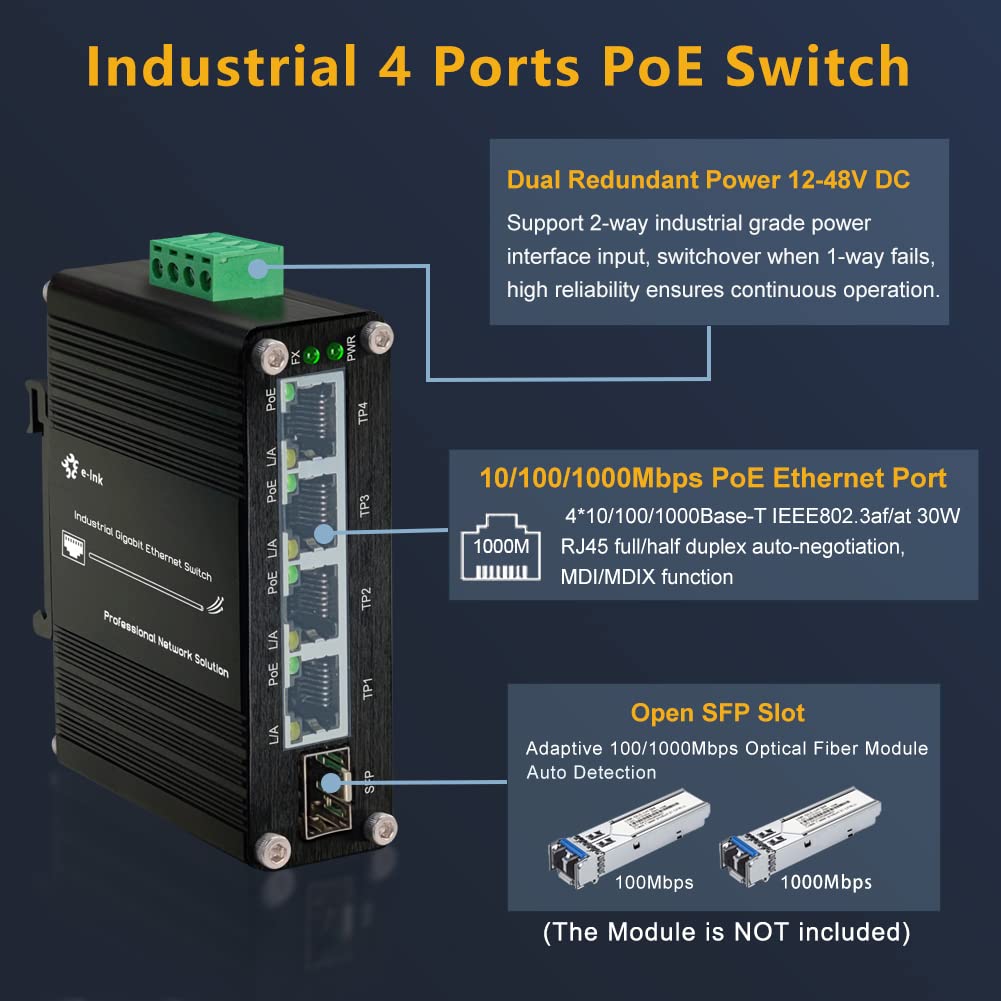

BulletPoint1 : 【Port Configuration】Equipped with 4 10/100/1000Base-T RJ45 ports IEEE80.3af/at 30W with Auto MDI/MDI-X and 1 SFP slot 100Base-FX or 1000Base-X dual mode (auto detection).
BulletPoint2 : 【Compliant with IEEE802.3af/at】The 4-port Ethernet switch supports IEEE802.3af/at PoE Standard, each port max power can reach 30W and maximum 90W high total power PoE output.
BulletPoint3 : 【Redundant Power Input】The industrial network switch with DC12-48V wide voltage input supports 2-way industrial grade power interface input, one set of power supplies fails, and the other set can still work, high reliability ensures continuous operation.
BulletPoint4 : 【Industrial Grade Quality】IP40 protection grade, it can work in a wide temperature range from -40°C to 80°C (-40°F to 176°F) and 6KV lightning protection which make it can adapt to various harsh environments.
BulletPoint5 : 【Din-Rail & Wall Mount】The gigabit 4 ports switch with industrial grade aluminum alloy housing comes with 35mm din-rail mounting bracket and wall mount accessory, can install on universal din rail slot. Installation and disassembly are very simple.
Color : Black
CompatibleDevices1 : Camera
CompatibleDevices2 : PoE AP
CompatibleDevices3 : PoE VoIP Phone
DataTransferRate : 1000 megabits_per_second
Department : Unisex
ExternallyAssignedProductIdentifier : 8907198613802
FabricType : PU Leather
HandbagSilhouette : briefcase
ImportDesignation : Imported
IncludedComponents1 : Gigabit Industrial DIN-Rail Ethernet Switch
IncludedComponents2 : Wall Mount
IncludedComponents3 : User's Manual
InterfaceType1 : RJ45
InterfaceType2 : SFP

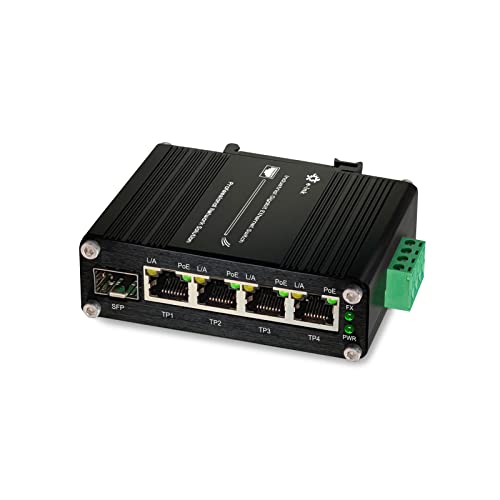

ItemName : Throncom Industrial Gigabit 4 Ports PoE Ethernet Switch PoE+ Fiber Switch with 100/1000M Adaptive SFP Slot Din Rail Unmanaged 10/100/1000Mbps Network Switch IEEE802.3af/at 30W/Port Max 120W 12-48V DC
ItemPackageDimensions_Height : 18.288 centimeters
ItemPackageDimensions_Length : 5.8928 centimeters
ItemPackageDimensions_Width : 13.589 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : network-switches
LowerTemperatureRating : -40 degrees_celsius
Manufacturer : Throncom
Material : Polyester
MaximumPower : 5 watts
ModelNumber : 4 RJ45+1 SFP PoE Switch
NumberOfItems : 1
NumberOfPorts : 5
PartNumber : AD_NBKLEA521DAT414_10CAD024
Pattern : Solid
Platform : not_machine_specific
ProductDescription :

Overview:

This s is a Mini Industrial 4Port 10/100/1000T 802.3at PoE + 1Port 100/1000X SFP

Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE

switch is designed to match the critical industrial standards. With reliable and simple operation against vibration

and shock, and wide operation temperature range, it could match a variety of harsh environment.

Specification:

Interface : 4 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 4) + 1 x SFP 1000Base-X or 100Base-FX (auto detection)

Standards:IEEE 802.3 Ethernet,IEEE 802.3u Fast Ethernet,IEEE 802.3ab Gigabit Ethernet,IEEE 802.3x Full-Duplex Flow Control,IEEE 802.3az Energy Efficient Ethernet (EEE),IEEE 802.3at Power over Ethernet Plus PSE,IEEE 802.3af Power over Ethernet Plus

Forward Filter Rate: 14880pps (10Mbps), 148800pps (100Mbps), 1488000pps (1000Mbps)

Packet Buffer Memory: 1Mbits

Switch Fabric: 10Gbps/non-blocking

Max Packet Length: 9K Bytes

Address Table Size: 4K MAC Addresses

PoE Standard:IEEE802.3af/at

Power Pin Assignment: 4/5(+), 7/8(-)

PoE Budget: Up to 120W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE

budget (12VDC)

Input Power: 12~48VDC (Terminal Block)

Power Consumption:<125W

Dimensions (WxDxH): 95 x 70x 29mm

Weight: 250g

Casing: Aluminum Case

Mounting Options: DIN-Rail / Wall-mount

Key Features:

100/1000BASE-X SFP slots for SFP type auto detection

4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

12~48VDC wide range power input with power booster function

Supports 802.3x Flow control

Supports DIN-Rail and Wall-mount installation

Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
ProductSiteLaunchDate : 2023-02-08T16:00:00.000Z
Size : 10 inch
SupplierDeclaredDgHzRegulation : not_applicable
SwitchType : Multiple
UnspscCode : 43222612
UpperTemperatureRating : 75 degrees_celsius
Voltage : 48 volts
WarrantyDescription : 3 years
