Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Jolooyo
BulletPoint1 : Signal range 0.004 ~ 220 MHz pulse signal
BulletPoint2 : Signal amplitude -10 ~ 0 DBm
BulletPoint3 : Frequency scanning duration 10ms to 10000ms ms milliseconds
BulletPoint4 : Operating voltage 7 ~ 12 VDC
BulletPoint5 : Working current <500 mA
ExternallyAssignedProductIdentifier1 : 0762283863634
ExternallyAssignedProductIdentifier2 : 762283863634
IncludedComponents : a RF signal generator

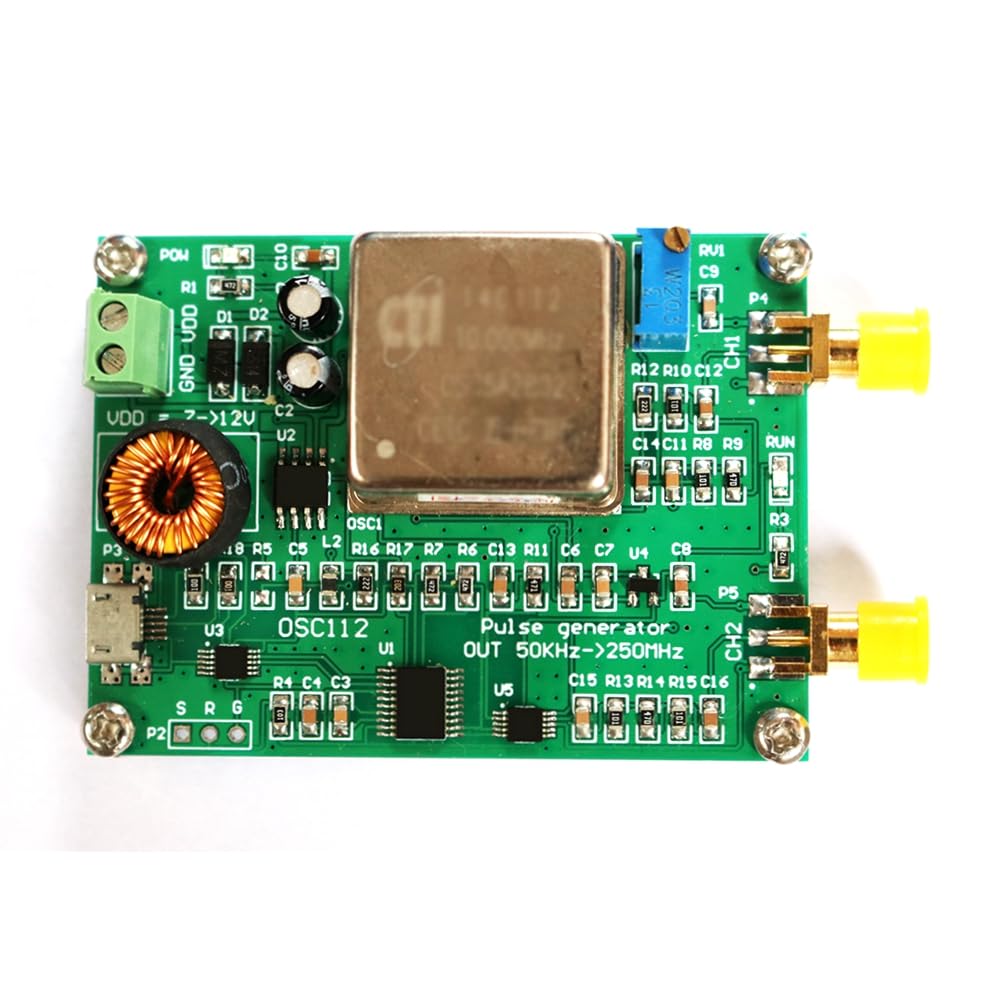

ItemName : OSC112 OCXO Constant Temperature Crystal Oscillator Module with Sweep Function in Any Frequency Band from 0.004 to 220MHz USB
ItemPackageDimensions_Height : 1.85 inches
ItemPackageDimensions_Length : 7.28 inches
ItemPackageDimensions_Width : 3.66 inches
ItemPackageQuantity : 1
ItemTypeKeyword : temperature-calibrators
Manufacturer : Jolooyo
MeasurementAccuracy : /
ModelNumber : XDL-OSC112
NumberOfItems : 1
PartNumber : XDL-OSC112
ProductDescription :

1. Overview:
The OSC112 is a small RF signal generator with two independent frequency and high resolution pulse outputs. The CH1 channel has the scavenging function.
The module is simple to use, input frequency data through USB operation of the upper computer, update the output frequency immediately, and save the set data.

2. Product application:
● Signal generator;
● Instrument calibration;

3. Technical parameter table:
No. Item Parameter Unit Remarks
1 Signal range 0.004 ~ 220 MHz pulse signal
2 Signal amplitude -10 ~ 0 DBm
3 Frequency scanning duration 10ms to 10000ms ms milliseconds
4 Operating voltage 7 ~ 12 VDC
5 Working current <500 mA
6 Dimensions 57*45*20 mm long X wide X high
7 Weight 30g

4. Interface description and related operations
P1 interface (Power supply)
VDD: positive power supply (7 ~ 12V)
GND: negative power terminal

P4 interface signal output CH1 (RP SMA KE KHD outer screw inner hole)
P5 interface Signal Output CH2 (RP SMA KE KHD outer screw inner hole)
