UNI-T UT701 UT705 UT714 UT715 UT725 Multifunction Process Calibrator Thermocouple/RTD/Resistance Frequency, Voltage and Current Process Calibrator(UT705)

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 109500/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : UNI-T
BulletPoint : UT725 Multifunction Process Calibrator Certifications: CE, UKCA
BulletPoint1 : UT705 Single Function Loop Calibrator Certifications: CE, UKCA
BulletPoint2 : ● Automatic ramp for DC current output ● Manual/automatic stepping and ramping output
BulletPoint3 : ● Stores and recalls setups ● Measures: DC voltage, DC current, 4-20mA loop current
BulletPoint4 : ● Output functions: DC current, analog transmitter, 24V loop ● Up to 0.02% accuracy current measurement at same time
BulletPoint5 : All Products will be provided for lifetime technical support.
Color : Red
ExternallyAssignedProductIdentifier1 : 0717331726423
ExternallyAssignedProductIdentifier2 : 717331726423
Hazmat1 : un1993
IncludedComponents : USB
IncludedComponents1 : Meter
IncludedComponents2 : manual
IncludedComponents3 : Battery
IncludedComponents4 : Charger
IncludedComponents5 : Test lead
ItemName : UNI-T UT701 UT705 UT714 UT715 UT725 Multifunction Process Calibrator Thermocouple/RTD/Resistance Frequency, Voltage and Current Process Calibrator(UT705)
ItemPackageDimensions_Height : 150 millimeters
ItemPackageDimensions_Length : 350 millimeters
ItemPackageDimensions_Width : 250 millimeters
ItemPackageQuantity : 1
ItemTypeKeyword : temperature-calibrators
Manufacturer : ‎‎UNI-TREND TECHNOLOGY (CHINA) CO., LTD
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : +-0.1%
ModelNumber : QD-UT705
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
PackageLevel : unit
PartNumber : QD-UT705
PowerSourceType : Battery Powered
ProductDescription : UT705 Single Function Loop Calibrator
●UT705 is a high performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately.
◆It features LCD backlight, auto power off and 1m drop proof.
Features of UT705 Single Function Loop Calibrator
●Certifications: CE, UKCA
●● Automatic ramp for DC current output
●● Manual/automatic stepping and ramping output
●● Stores and recalls setups

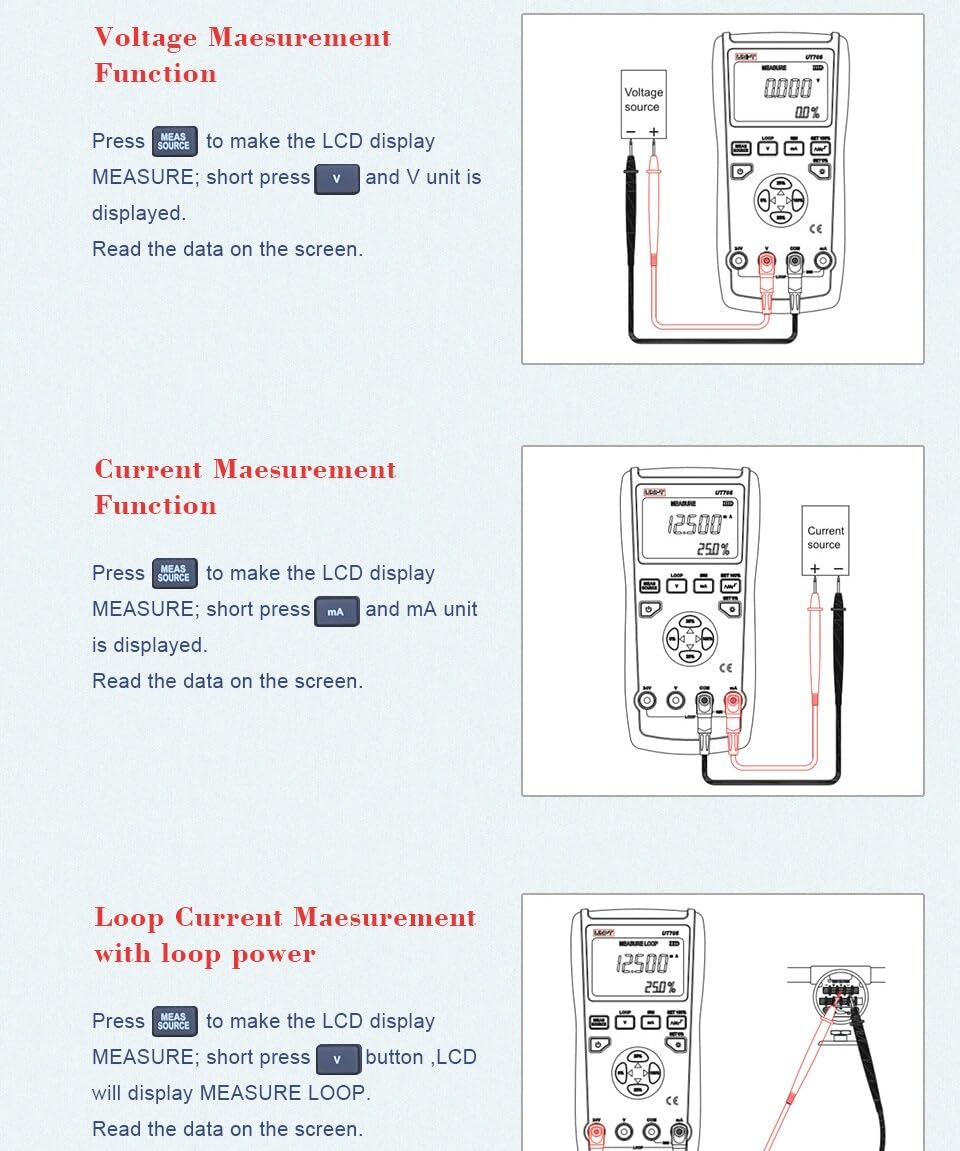

●● Measures: DC voltage, DC current, 4-20mA loop current
●● Output functions: DC current, analog transmitter, 24V loop
●● Up to 0.02% accuracy current measurement at same time
Specifications Range UT705
●Measure accuracy
●DC voltage (V) 30.000V ±(0.02+2)
●DC current (A) 24.000mA ±(0.02+2)
●Loop current 24.000mA ±(0.02+2)
●Source accuracy
●DC current (source) 24.000mA ±(0.02+2)
●DC current (simulate) 24.000mA ±(0.02+2)
● Features
●Loop power function Voltage: 24V
●Accuracy: 10%
●Ramp functions Source functions: Voltage, resistance, temperature
●Ramps: Slow ramp, fast ramp, 25% step-ramp
●Step functions Source functions: Voltage, resistance, temperature
●Steps: 25% of range, 100% of range
●General Characteristics
● Power 9V battery (6F22)
●Display 63mm x 40mm
●Product color Red and grey
●Product net weight 410g
●Product size 96mm x 193mm x 47mm
● Standard accessories Test leads, battery
ProductSiteLaunchDate : 2023-06-24T10:05:04.547Z
Size : QD-UT705
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : ISO 9001
SpecificationMet4 : UKCA
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41110000
Wattage : 1 watts
