Specification
AgeRangeDescription : Adult
Brand : eletechsup
BulletPoint1 : Power supply1: DC 6-25V(Anti-reverse);
BulletPoint2 : Power supply2: DC 4-5V(Cannot be reversed)
BulletPoint3 : Working current: 6-13MA;
BulletPoint4 : Five function IO modes can be selected by jumper: 8DO
BulletPoint5 : 2.54MM pin header interface, easy to use Dupont wire or breadboard connection
CareInstructions : Wipe Clean
ExternallyAssignedProductIdentifier : 7401811250326
ExternallyAssignedProductIdentifier1 : 0755833712704
ExternallyAssignedProductIdentifier2 : 755833712704
IncludedComponents : Module

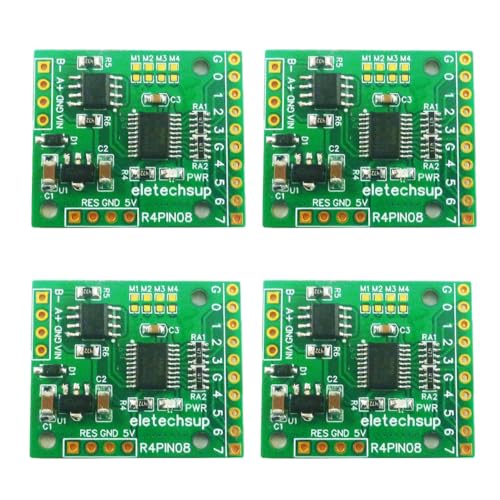

ItemName : DC 5V 12V 24V 8CH 8DO RS485 Remote IO 2.54mm Pin Core Board Modbus Rtu Master-Slave Digital Collection Module (4 x 8DO Only Board)
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 9.8 centimeters
ItemPackageQuantity : 1
ItemShape : 4 X 8do Only Board
ItemTypeKeyword : industrial-temperature-sensors
Manufacturer : eletechsup
Material : Copper
ModelNumber : SEN2039
MountingType : Flange Mount
NumberOfItems : 1
PackageLevel : unit
PartNumber : R4PIN08_8DO
ProductDescription :

Product Name :8DO 8CH Multifunction RS485 Remote IO 2.54mm Pin Core Board Modbus Rtu Master-slave Digital Collection Module DC 5V 12V 24V

Description：

1. Power supply1: DC 6-25V(Anti-reverse);

Power supply2: DC 4-5V(Cannot be reversed)

2. Working current: 6-13MA;

3. MODBUS RTU function codes: Write 05/06/15/16, Read 01/02/03

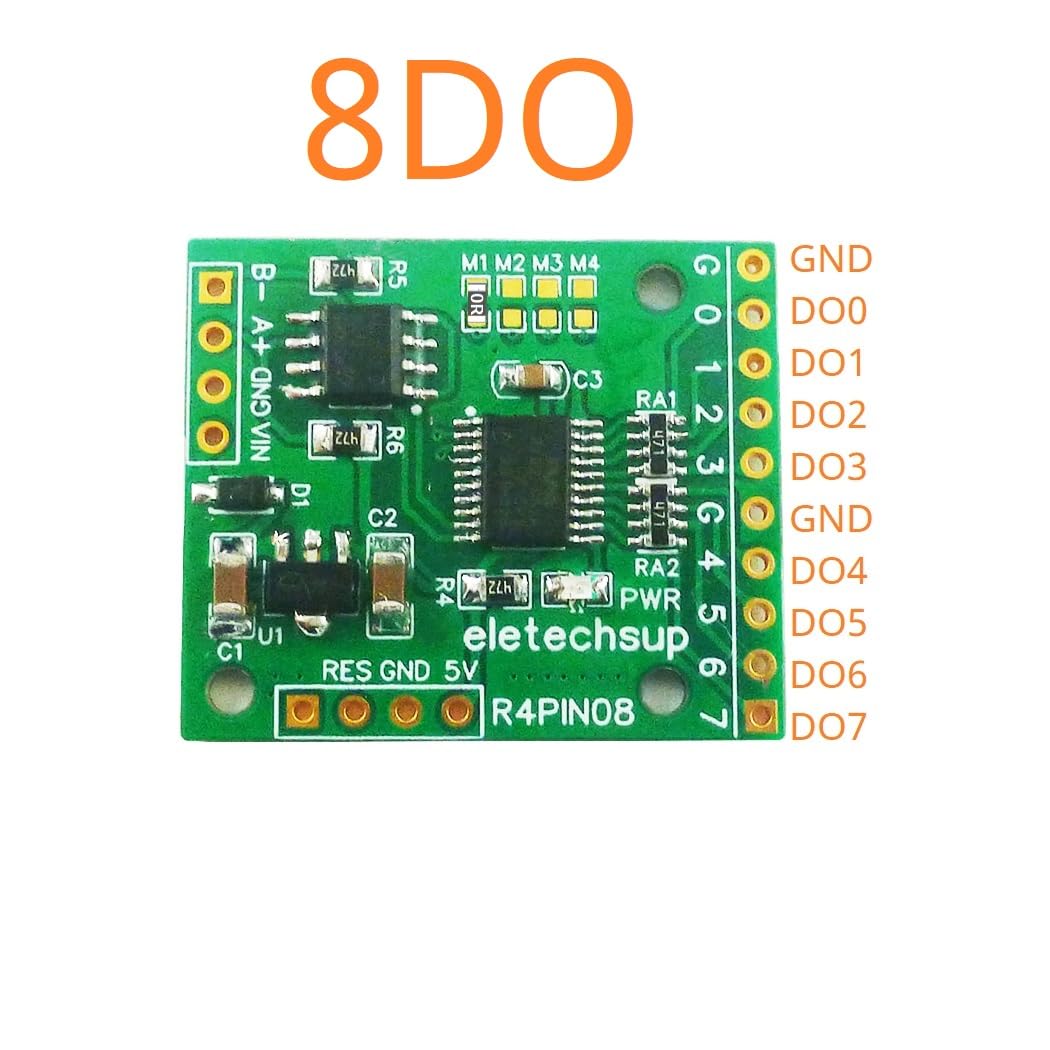

4. Five function IO modes can be selected by jumper: 8DO

5. By modifying the 0X00F5/0X00F6 register, the input and output levels (NPN/PNP) can be switched

6. Input mode: Support 3.3V/5V TTL level input, there are two input modes of low level input (default) and high level input

7. Output mode: 5V TTL level, low level (default) / high level output

8. In MODBUS command mode, it can support up to 247 devices in parallel

9. Input port status supports query (default) and automatic reporting

10. BaudRate:1200 2400 4800 9600(default) 19200 38400 57600 115200, None/Odd/Even Parity

11. 2.54MM pin header interface, easy to use Dupont wire or breadboard connection

12. Size: 30*25.4*2mm(Very Small and Very Thin)

13. Weight: 3grams(Very Light)

Packing list:

8CH DC 5-24V 2.54MM Pin RS485 Multifunctional DI-DO Module

This module is a multi-function board, you can select various function modes through jumpers. The jumper uses 0603 0Ω resistor (or wire)

Different Versions of Pin Definitions

For MODBUS RTU command details, see:''R4PIN08 MODBUS RTU Commamd''

By modifying the 0X00F5/0X00F6 register, various input and output levels (NPN/PNP) can be switched

NPN Input & NPN Output(Register 0X00F5=0,0X00F6=0,Default)

PNP Input & NPN Output(Register 0X00F5=1,0X00F6=0)

NPN Input & PNP Output(Register 0X00F5=0,0X00F6=1)

PNP Input & PNP Output(Register 0X00F5=1,0X00F6=1)
