Specification
BatteriesRequired : 1
Brand : Graigar
BulletPoint1 : Safe testing, without the need of direct contact between probes and live wires
BulletPoint2 : The insulated alligator clips can clip insulated cables from φ2.4 to 30mm
BulletPoint3 : Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones
BulletPoint4 : A magnet on the backside of the instrument can fix the instrument onto the distribution board
BulletPoint5 : Wide measuring range for 3 phase installations from 70 to 1000V AC
BulletPoint6 : Brightness function permits clear LEDs indication also in sunshine
Color : Black
ExternallyAssignedProductIdentifier1 : 0707457451637
ExternallyAssignedProductIdentifier2 : 707457451637
IncludedComponents : \

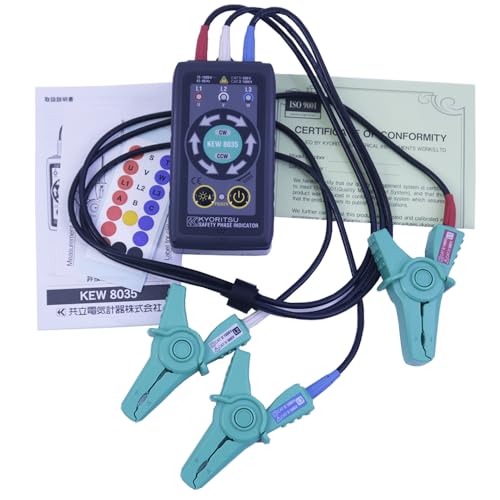

ItemName : Kyoritsu 8035 Non-Contact Safety Phase Indicator Phase Rotation Tester Kew8035
ItemPackageDimensions_Height : 9 centimeters
ItemPackageDimensions_Length : 14 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : test-indicators
Manufacturer : Graigar
Material : Plastic
MeasurementAccuracy : \
MinimumOperatingVoltage : 70 volts_of_alternating_current
ModelName : Greensenq4ak23emx6
ModelNumber : Kyoritsu8035
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Kyoritsu8035
PowerSourceType : Battery Powered
ProductDescription :

Functions:Phase rotation (Clockwise or Counter Clockwise),Presence of open phase

Detection method:Electrostatic induction

Measuring voltage range:From 70 to 1000V AC phase to phase (sine wave, continuous input)

Clamp diameter range:From Ø2.4 to 30mm insulated cables

Measuring frequency range:45 to 66Hz

Phase rotation:Clockwise:Green arrow LEDs "rotate" in clockwise, Green symbol "CW" lits, Intermittent buzzer/ Counter Clockwise:Red arrow LEDs "rotate" in counter clockwise, Red symbol "CCW" lits, continuous buzzer

Visual indication:Via LEDs with Super brightness function

Battery voltage warning:Power LED blinks if battery voltage is too low.

Test leads:Double insulated cables, length approx. 70cm

Colours code:L1(U): Red/L2(V): White/L3(W): Blue

Operating temperature & humidity range :Temperature/Humidity Ranges -10 to 50ºC, 80% (no condensation)

Storage temperature & humidity range:Temperature/Humidity Ranges -20 to 60ºC, 80% (no condensation)

Power supply (DC battery):LR6(AA)(1.5V) ×4

* Continuous use: Approx. 100 hours (Auto power off in about 10 min.)

Dimension:112(L) × 61(W) × 36(D) mm

Weight:380g approx.

Included Accessories :9096 (Carrying case), Instruction manual

ProductSiteLaunchDate : 2021-04-01T07:00:00.000Z
Size : 1.375" Length
Style : \
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 41113600
UpperTemperatureRating : 50 degrees_celsius
