Specification
Brand : Baomain
BulletPoint1 : Rated Current: 30A; Voltage: 125/250VAC/65VDC; Reset Type: Manual Reset
BulletPoint2 : Body Size: 1.38 x 1.22 x 0.57"(LxWxH); Terminal Width: 6.3mm (1/4")
BulletPoint3 : Material: Metal, Bakelite,Plastic; Weight: 250g
BulletPoint4 : Certification: UL CSA TüV CE RoHS REACH listed
BulletPoint5 : Package Content : Overload Protector x 10, Hex Nut x10
CircuitBreakerType : Standard
Color : Black
CurrentRating : 30 amps
ExternallyAssignedProductIdentifier : 7807721862145
ExternallyAssignedProductIdentifier1 : 785901702870
ExternallyAssignedProductIdentifier2 : 0785901702870
ExternallyAssignedProductIdentifier3 : 00785901702870
IncludedComponents : Overload Protector
ItemDisplayWeight : 4.8 pounds

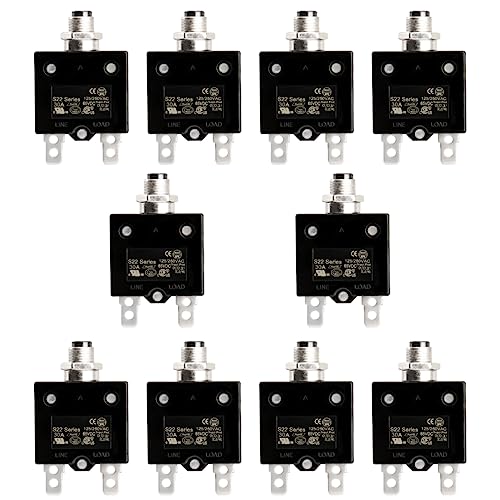

ItemName : Baomain 30A Circuit Breaker Thermal Overload Protector, S22 Series 125/250VAC/65VDC, Manual Reset Thermal Circuit Breakers Black UL CE Listed Pack of 10 (30 Amp.)
ItemPackageDimensions_Height : 2.85 inches
ItemPackageDimensions_Length : 2.9 inches
ItemPackageDimensions_Width : 2.3 inches
ItemPackageQuantity : 1
ItemShape : Qbl32100
ItemTypeKeyword : thermal-circuit-breakers
Manufacturer : Baomain
Material : Plastic,Metal
ModelNumber : graden Lin
MountingType : Plug-In Mount
NumberOfItems : 10
NumberOfPoles : 3
PackageLevel : unit
PartNumber : S22-30A
ProductDescription : Approval UL, CSA, TUV, CE,RoHS, REACH Environmental Protection Certification.
Specification

Rated Voltage: 125/250VAC / 65VDC

Terminal Width: 6.3mm (1/4")

Screw Hole Dia: 10.8mm/0.425''

The leaked current: ≤0.5mA

Rated Frequency ：50/60Hz

Rated breaking capacity: 6 times rated current

Withstand Voltage Strength: 1500VAC/1min

Insulation Resistance: 500VDC 1Min≥100MΩ

Rated short-circuit capacity：125VAC/1000A，250VAC/1000A

Tripping Characteristics

The test environment temperature:25℃±3℃

1000% of Rated Current:0.12-0.7s” Seconds Trip

600% of Rated Current:0.3-1.7s” Seconds Trip

200% of Rated Current:5-35s” Seconds Trip

135% of Rated Current:Trip within 1 Hour

100% of Rated Current:Hold, No Trip

Widely Application: Water pump, deep well pump, jet pump, fuel pump, air compressor, treadmill, grinder, mixer, herbal grinder, garden and park equipment (lawn mower, etc.), various main control panels (yacht panels, diesel and gasoline generator panels, etc.), cleaning machine, sweeper, sink garbage disposal, power tool (hydraulic drill, bench drill), agricultural and forestry equipment (electric sprayer, etc.), industrial electrical equipment (transformer, inverters, voltage stabilizer, voltage regulator, etc.), UPS(uninterruptible power system ),New Energy (charging pile, etc.), power strip, extension cord, and other fields.

ProductSiteLaunchDate : 2022-04-21T21:00:00.000Z
Size : One Size
Style : 30 Amp.
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
UnitCount : 0.0353
UnspscCode : 39121601
Voltage : 250 volts
