Specification
AgeRangeDescription : adult
Brand : BULVACK
BulletPoint : Arc Fault Circuit Breakers
BulletPoint1 : WIDE APPLICATION: High Amp marine rated circuit breakers are specifically designed to meet the needs of marine applications but can also be used for trucks, buses, RVs, solar system, battery chargers and DC audio systems
BulletPoint2 : PRODUCT FUNCTION: The marine circuit breaker can protects your trolling motor from electrical damage, prevents excessive current and stops power surges from damaging Amps
BulletPoint3 : MANUAL RESET DESIGN: Surface Mount circuit breaker combines switching and circuit protection into a single device, manual reset arm is easy to operate, automatic testing and manual coverage. Unique flush mount design with pull-to-trip lever that functions as an on-off switch. Simple and convenient to be installed on the panel or firewall
BulletPoint4 : IGNITION PROTECTED: All components meet SAE 1171 external circuit protection requirements. "Trip Free" design cannot be held "ON" during fault current condition
BulletPoint5 : ROBUST TERMINALS: Large clearance around terminal studs accepts up to 1/0 AWG lugs. Recessed mounting holes for clean appearance. Robust 5/16"-18 terminals provide high torque connections
CircuitBreakerType : Standard
Color : Yellow
CurrentRating : 200 amps
ExternallyAssignedProductIdentifier : 7754857297146
IncludedComponents : Marine circuit breaker

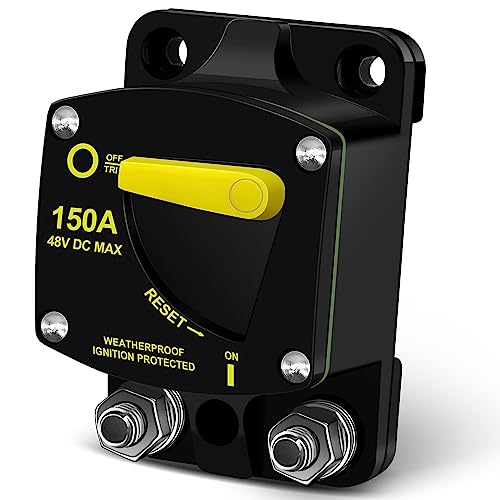

ItemName : BULVACK 200 Amp Circuit Breaker with Manual Reset Switch for Marine RVs Yacht Trolling Boat Battery Solar System, 12V-48V DC Waterproof (150 Amps)
ItemPackageDimensions_Height : 10.1092 centimeters
ItemPackageDimensions_Length : 5.4102 centimeters
ItemPackageDimensions_Width : 7.3914 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : thermal-circuit-breakers
Manufacturer : BULVACK
ModelName : OZVSVGQO
ModelNumber : BK078
MountingType : Surface Mount
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPoles : 1
PartNumber : BK078
ProductDescription : BULVACK Circuit Breaker with Manual Reset Switch for Boat Marine Trolling Motor, 12V-48VDC Waterproof

➤Specification:
-Circuit Breaker Type: Thermally responsive Bi-metal blade
-Rating Options: 30/40/50/60/100/150/200/250/300 Amps, 12V-48V DC
-Interrupt Rating: 5000 Amps @ 12V DC, 3000 Amps @ 24V DC, 1500 Amps @ 42V DC
-Operating Temperature Rating: -40 °F (-40 °C) to 185 °F (85 °C)
-Storage Temperature Rating:-40 °F (-40 °C) to 260 °F (125 °C)
-Materials: Thermo-set Polyester
-Marking Standard: marking includes amp/volt ratings
-Mounting Hole: Accept #10 (M5) Screw
-Terminal Stud Size:5/16" - 18"
-Ingress Protection Rating: IP67
-Compliances: ABYC E-11; CE; SAE J1171 (ignition protected)

➤Features:
-Combines switching and circuit protection into a single device
-Single lever operation—clearly visible, large lever with vertical/horizontal orientation provides
indication of trip status
-A manual reset circuit breaker with On-Off switch capability
-"Trip-Free" design cannot be held on during fault current conditions
-Ignition protected, all components meet SAE J1171 external circuit protection requirements, safe for installation aboard gasoline powered boats
-Recessed mounting holes for clean appearance
-Large clearance around terminal studs accept heavy gauge wire lugs
-Robust 5/16 terminals provide high torque connections
-High Amp Marine Rated Circuit Breakers are specifically designed to meet the needs of marine
applications but can also be used for trucks, buses, RVs, and more

➤Package Includes:
1 x 200 Amps Circuit Breaker with Manual Reset
ProductSiteLaunchDate : 2023-05-13T11:37:41.726Z
Size : One Size
Style : 150 Amps
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39121600
Voltage : 48 volts_of_direct_current
