Specification
Brand : WnewTools
BulletPoint1 : Use AMG8833 infrared thermal sensor. The resolution is 8*8, and the farthest detection distance is 7 meters.
BulletPoint2 : The module can be powered directly by USB 5V to produce infrared images.
BulletPoint3 : It can be applied to check electronic products.
BulletPoint4 : Portable and compact, high performance, easy to use.
BulletPoint5 : Temperature accuracy:
ExternallyAssignedProductIdentifier1 : 0769902982479
ExternallyAssignedProductIdentifier2 : 769902982479
IncludedComponents : No

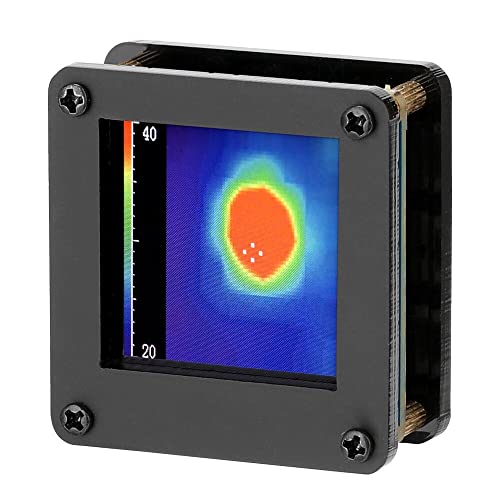

ItemName : AMG8833 IR 8x8 Infrared Thermal Imager Array Temperature Sensor 7M Farthest Detection Distance
ItemPackageQuantity : 1
ItemTypeKeyword : thermal-imagers
Manufacturer : Wnew
ModelName : AMG8833 Thermal Imager
ModelNumber : ATOOL1957127
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : ATOOL1957127
PowerSourceType : hand_powered
ProductDescription :

Features:

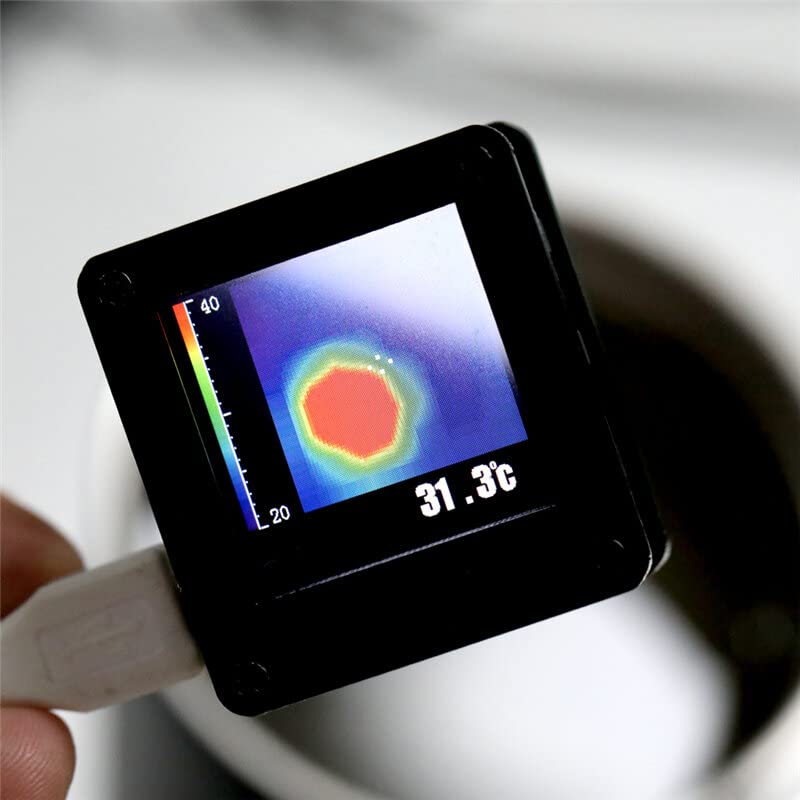

The module can be powered directly by USB 5V to produce infrared images.

Use AMG8833 infrared thermal sensor. The resolution is 8*8, and the farthest detection distance is 7 meters.

It can be applied to check electronic products.

Portable and compact, high performance, easy to use.

Specifications:

Material: PCB

Temperature accuracy:

High performance type high gain: typical ±2.5℃ ±4.5℉

High performance type low gain: typical ±3.0℃ ±5.4℉

Human detection distance: 7m or less (reference value) 22.966 ft

NETD:

Typ. 0.05℃ 32.900℉ 1Hz

Typ. 0.16℃ 32.288℉ 10Hz

Viewing angle: typical 60°

Optical axis gap: within typical ±5.6°

Current consumption:

Typical 4.5mA (normal mode)

Typical 0.2mA (sleep mode)

Typical 0.8mA (stand-by mode)

Setup time:

Typical 50ms (time to enable communication after setup)

Typical 15s (time to stabilize output after setup)

Number of pixel: 64 (vertical 8 * horizontal 8 matrix)

External interface: 1²C (fast mode)

Frame rate: typical 10 frames/sec or 1 frame/sec

Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence)

Output mode: temperature output

Calculate mode: no moving average or twice moving average

Temperature output resolution: 0.25℃ / 32.45℉

Number of sensor address: 2 (1²C slave address)

Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)

Thermistor output resolution: 0.0625℃ / 32.1125℉

Item size: 42 * 37mm / 1.7 * 1.5in

Item weight: 10g / 0.4ounce

Package size: 90 * 60 * 8mm / 3.5 * 2.4 * 0.3in

Package weight: 11g / 0.4ounce

>>Please Click Here to Download the Manual Code and Schematic <<

Package Included:

1 x AMG8833 Thermal Imager
