Specification
Brand : GOWE
BulletPoint1 : Special characters:1.PCB repair equipment; 2.It can rework any chips rapidly; 3.HD camera system; ; 4.Positioning accuracy. 5.CE certificate; Specifications and technical parameters ; 1; Total Power:4800W; 2; Top heater:800W; 3; Bottom heater:2nd heater 1200W,3rd IR heater 2700W; 4; Power supply:AC220V¡À10% 50/60Hz; 5; dimension:635¡Á600¡Á560mm; 6; Positioning:V-groove, PCB support can be adjusted in any direction with external universal fixture
BulletPoint2 : 7; Temperature control:(K Sensor) closed loop, independent heating, precision within ¡À3¡ã; 8; PCB size:Max 410¡Á370mm Min 20¡Á20 mm; 9:Electrical selection; Highly sensitive temperature control module+Touch screen (Taiwan)+Delta PLC; Main Features; 1. The machine used touch-screen interface and PLC control to show the three temperature graphs at any time, so that the temperature error can be controlled within 1¡ã.
BulletPoint3 : 2. Have 7 temperature sections for control such as preheating, insulation, heating, welding 1, welding 2, cooling and refrigeration. The excellent temperature control system ensures the effectiveness of welding.3. It can save 1 to 100 groups of graph parameters at one time. It can analyse the graphs and change the settings at any time on the touch screen.4. There are three independent heating areas from top to bottom. the first and second temperature areas
BulletPoint4 : can control many groups & sections of temperature parameters at the same time. The third area preheats the PCB thoroughly to achieve the best welding effect. Temperature, time, slope, cooling and alarming all display on the touch screen. 5. Choose imported high-precision K-Sensor with closed-loop to detect up/down temperature precisely.
BulletPoint5 : 6. After finishing desoldering & soldering, there is an alarming. When the temperature goes beyond control, the electric circuit can cut off automatically, with over-heating protection.7. Use a powerful cross-flow fan to cool PCB rapidly to prevent it from deformation and ensure the welding effect.
CompatibleDevices : Tablet
ExternallyAssignedProductIdentifier1 : 0827674407917
ExternallyAssignedProductIdentifier2 : 827674407917

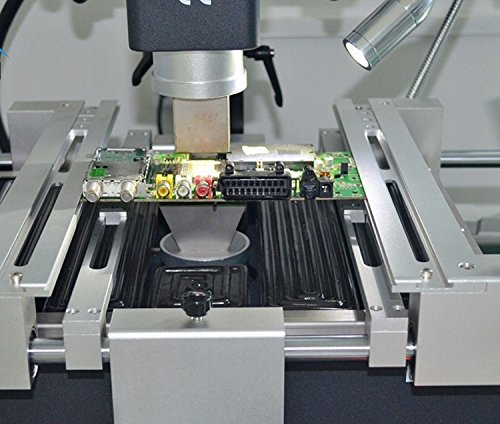

ItemName : GOWE Three Temperature Zones Infrared & Hot air BGA Rework Station with CCD camera and monitor
ItemPackageQuantity : 1
ItemTypeKeyword : thermal-imagers
Manufacturer : Gowegroup
Material : copper
PartNumber : GWE-1032230
ProductDescription : Special characters:1.PCB repair equipment; 2.It can rework any chips rapidly; 3.HD camera system; ; 4.Positioning accuracy. 5.CE certificate; Specifications and technical parameters ; 1; Total Power:4800W; 2; Top heater:800W; 3; Bottom heater:2nd heater 1200W,3rd IR heater 2700W; 4; Power supply:AC220V¡À10% 50/60Hz; 5; dimension:635¡Á600¡Á560mm; 6; Positioning:V-groove, PCB support can be adjusted in any direction with external universal fixture
ProductSiteLaunchDate : 2016-10-23T04:19:35.752Z
Reusability : Rechargeable
UnitCount : 1
UnspscCode : 41115325
Voltage : 230 volts
