Specification
AgeRangeDescription : Adult
Brand : Raspberry Pi
BulletPoint1 : Part Number: MLX90640-D110 Thermal Camera
BulletPoint2 : This is a 32×24 pixels, 110° field of view, IR array thermal imaging camera, communicating via I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc.
BulletPoint3 : By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.
BulletPoint4 : Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels, Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
BulletPoint5 : Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate, Onboard voltage translator, compatible with 3.3V/5V operating voltage, Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)
CareInstructions : Wipe Clean
ChipsetType : Intel B360
Color : MLX90640-D110 Thermal Camera
CompatibleDevices : Raspberry Pi, Arduino(ESP32), STM32
CompatibleProcessorTypes : ARM Cortex-A7, ARM Cortex-A15, ARM Cortex-A53, ARM Cortex-A72
ExternallyAssignedProductIdentifier1 : 719209007719
ExternallyAssignedProductIdentifier2 : 0719209007719
GraphicsCardInterface : integrated
IncludedComponents : 1pc x 4-Channel Thermocouple Thermometer, 4 x Probe Sensor, 1 x Black Bag
IndoorOutdoorUsage : outdoor
ItemLength : 7.9 inches

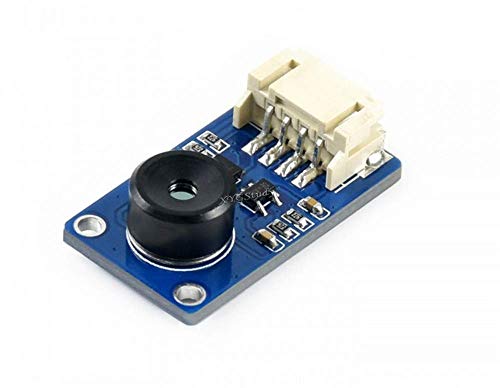

ItemName : MLX90640 IR Array Thermal Imaging Camera 32×24 Pixels 110° Field of View I2C Interface 3.3V/5V Compatible with Raspberry Pi (ESP32) STM32 @XYGStudy (MLX90640-D110 Thermal Camera)
ItemPackageDimensions_Height : 13.2 centimeters
ItemPackageDimensions_Length : 1.9 centimeters
ItemPackageDimensions_Width : 5.1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : thermal-imagers
MainPowerConnectorType : 24-Pin
Manufacturer : XYG-Module
MemoryClockSpeed : 1 MHz
MemorySlotsAvailable : 1
ModelName : MLX90640-D110 Thermal Camera
ModelNumber : MLX90640-D110
NumberOfItems : 1
PartNumber : Walfrontm384hunire
Platform : android
PowerSourceType : Battery Powered
ProductDescription :
Specifications
Operating voltage: 3.3V/5V
Operating current: ＜23mA
Communication interface: I2C (address 0x33)
Field of view (Horizontal×Vertical): 110°×75° (wide angle FOV, suit for short range measuring)
Operating temperature: -40℃～85℃
Target temperature: -40℃～300℃
Resolution: ±1℃
Refresh rate: 0.5Hz~64Hz (programmable)
Dimensions: 28mm×16 mm
Mounting hole size: 2.0mm

Applications
High precision non-contact temperature measurements
IR thermal imaging devices, IR thermometers
Smart home, intelligent building, intelligent lighting
Industrial temperature control, security monitoring, intrude/movement detection

Pinouts
In the case of working with MCU:
VCC ↔ 3.3V / 5V
GND ↔ GND
SDA ↔ MCU.I2C data line
SCL ↔ MCU.I2C clock line

Package Contains (Weight: 0.006 kg)
MLX90640-D110 Thermal Camera x1
PH2.0 4PIN wire x1

For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
ProductSiteLaunchDate : 2013-05-29T07:00:00.000Z
Resolution : 0.1°C/°F/°K (below 1000°C), 1°C/°F/°K (above 1000°C)
ResponseTime : 0.5 seconds
Reusability : Reusable
Size : 120℃
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 46171600
UpperTemperatureRating : 1372 degrees_celsius
