Specification
Brand : Cloudpower
BulletPoint1 : [ADVANCED THERMAL IMAGING]: Equipped with a 32x24 far infrared array sensor, this thermal imager offers high-precision non-contact temperature measurement from -40°C to +300°C. With an 8Hz dynamic refresh rate, it provides real-time thermal imaging for various applications.
BulletPoint10 : 【Package Included】- 1 x thermal imager, 1 x manual
BulletPoint2 : [CLEAR VISUAL DISPLAY]: Features a 2.8-inch LCD screen with 320x240 pixel resolution. Displays and tracks the highest, lowest, and core temperatures, allowing for easy interpretation of thermal data. The screen provides clear visuals even in challenging lighting conditions.
BulletPoint3 : [PORTABLE AND LONG LASTING]: Compact design with a sturdy FR4 epoxy board shell for enhanced protection of internal components. Powered by a built-in 3.7V 600mAh lithium-ion battery, it offers up to 4 hours of continuous operation. USB-C charging allows for use while charging.
BulletPoint4 : [VERSATILE APPLICATIONS]: Suitable for body temperature detection, security and intrusion detection, industrial parts monitoring, and building environment control. Also useful for automotive air conditioning, microwave oven temperature control, and circuit board thermal detection.
BulletPoint5 : [CONVENIENT DATA STORAGE]: Built-in SPI Flash chip stores up to 100 thermal images. Easily connect to a computer or mobile phone via data cable to view and copy image files for further analysis or record-keeping.
BulletPoint6 : 【Emissivity Setting】- The camera allows for emissivity adjustment, providing accurate temperature measurements for reliable thermal analysis.
BulletPoint7 : 【Specifications】-
BulletPoint8 : - Viewing Angle: 33°
BulletPoint9 : - Maximum Frame Rate: 5FPS
Color : black
IncludedComponents : 1 x thermal imager 1 x wiping cloth 1 x USB cable

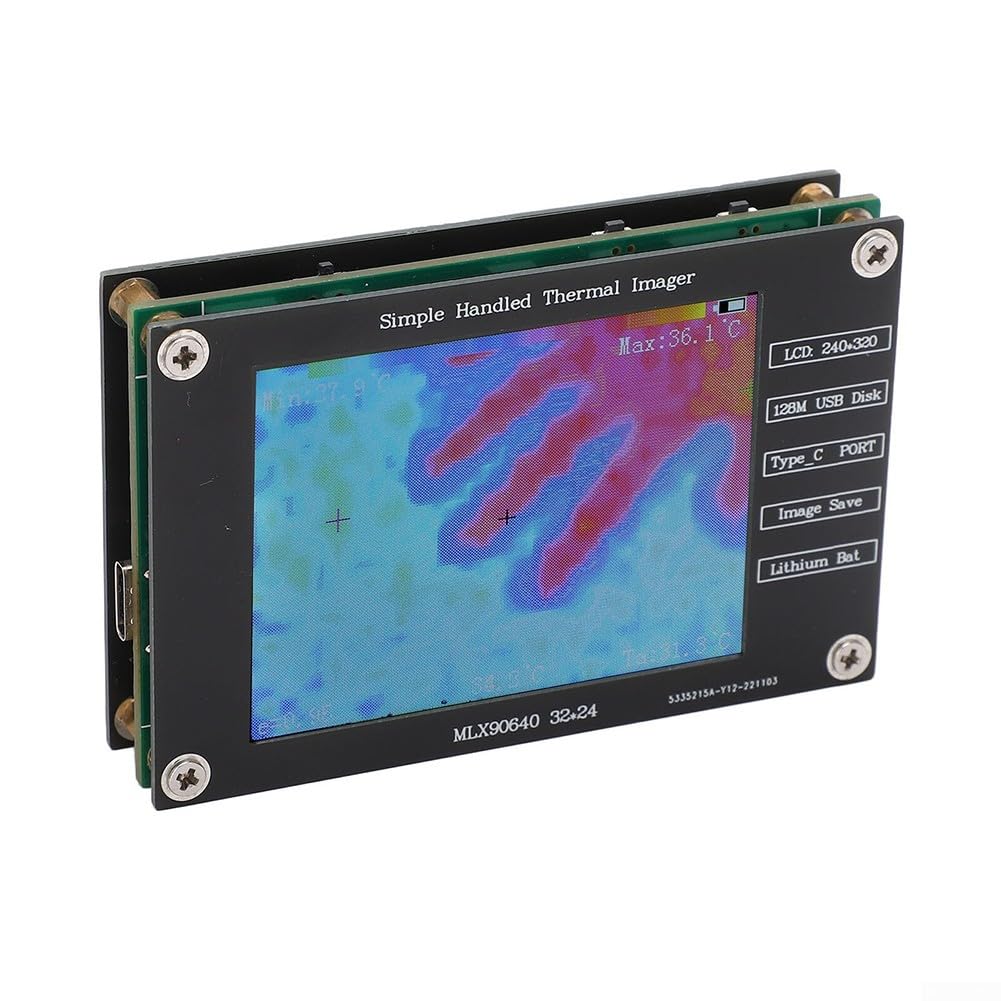

ItemName : Thermal Imager, Thermal Imaging Camera, MLX90640 2.8 Inch LCD Digital Infrared Thermal Imaging DIY Thermal Imager Temperature Detection Tool
ItemPackageQuantity : 1
ItemTypeKeyword : thermal-imagers
Manufacturer : Cloudpower
Material : epoxy resin board and printed circuit board
ModelNumber : X2P30K35OR524L461KZN8U06HR
PartNumber : X2P30K35OR524L461KZN8U06HR
ProductDescription :

Features:
* Compact and portable: measuring range from -40℃ to +300℃, 8Hz dynamic refresh rate. Small size, easy to carry, integrated design, no external equipment required
* Display temperature: 2.8-inch screen with a resolution of 320x240 displays and tracks the highest, lowest and core temperatures
* Shell: The shell adopts FR4 epoxy board to better protect the internal components and provide a long service life
* Li-ion battery powered, USB C charging, battery life up to 4 hours, can be used while charging
* Built-in storage: built-in SPI Flash chip, can store 100 pictures. Connect a computer or mobile phone via a data cable to view and copy image files

Specifications:
Part name: Thermal imager infrared camera
Material: epoxy resin board and printed circuit board
Infrared sensor: suitable for MLX90640ESF-BAB
Color:black
Size: standard 2.8 Inch
Hardware resolution: 32x24 far infrared array
Screen resolution: 320x240 pixels
Temperature measurement range: -40℃ to 300℃
Measurement accuracy: ±2℃
Operating temperature: 0 to 50℃
Operating humidity: ≦70%
Refresh rate: 8Hz
Field of view: horizontal 55° x vertical 35
Emissivity: 0.95
Charging specifications: Type-C USB 5V 1A
Battery: built-in 3.7V 600mAh lithium-ion battery
Working time: ≥4 hours
Applications: (as follows)
High-precision non-contact temperature measurement
Security and intrusion detection
Body temperature detection
Intelligent building environment temperature measurement and control
Automotive air conditioning control
Microwave oven, oven temperature detection and control
Industrial parts temperature monitoring
Visual temperature sensor
Floor heating equipment leakage repair
Circuit board, component thermal detection

Package contents:
1 x thermal imager
1 x wiping cloth
1 x USB cable
