Specification
Brand : TUOPUONE
BulletPoint1 : Adopt the hybrid technology of microbolometer and thermopile, 80(H)×62(V) array pixels
BulletPoint2 : Continuous operation and thermal imaging video stream due to shutterless design
BulletPoint3 : Noise Equivalent Temperature Difference (NETD) 125mK RMS@1Hz refresh rate, with good noise performance
BulletPoint4 : Up to 25FPS (Max) frame rate thermal imaging video stream output
BulletPoint5 : Online resources and manuals. (Python demo for Raspb Pi, Android/Windows host computer and user manual, etc.)
ExternallyAssignedProductIdentifier1 : 0769902982479
ExternallyAssignedProductIdentifier2 : 769902982479
IncludedComponents : No

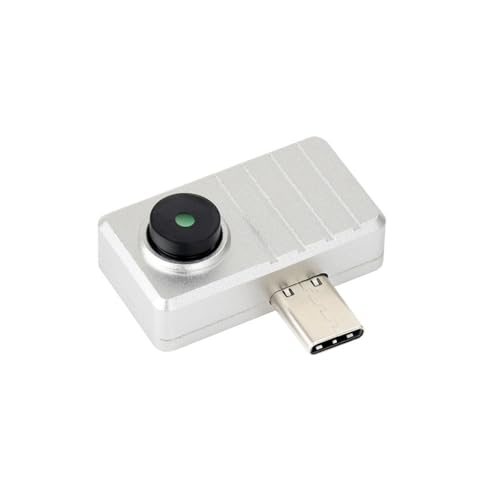

ItemName : TUOPUONE Smartphone IR Thermal Imaging Camera (B) Type-C Port Plug and Play 90° FOV Aluminum Alloy Case
ItemPackageQuantity : 1
ItemTypeKeyword : thermal-imagers
Manufacturer : TUOPUONE
ModelName : AMG8833 Thermal Imager
ModelNumber : Thermal-90 USB Camera (B)
NumberOfItems : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : TPO28903
PowerSourceType : hand_powered
ProductDescription :

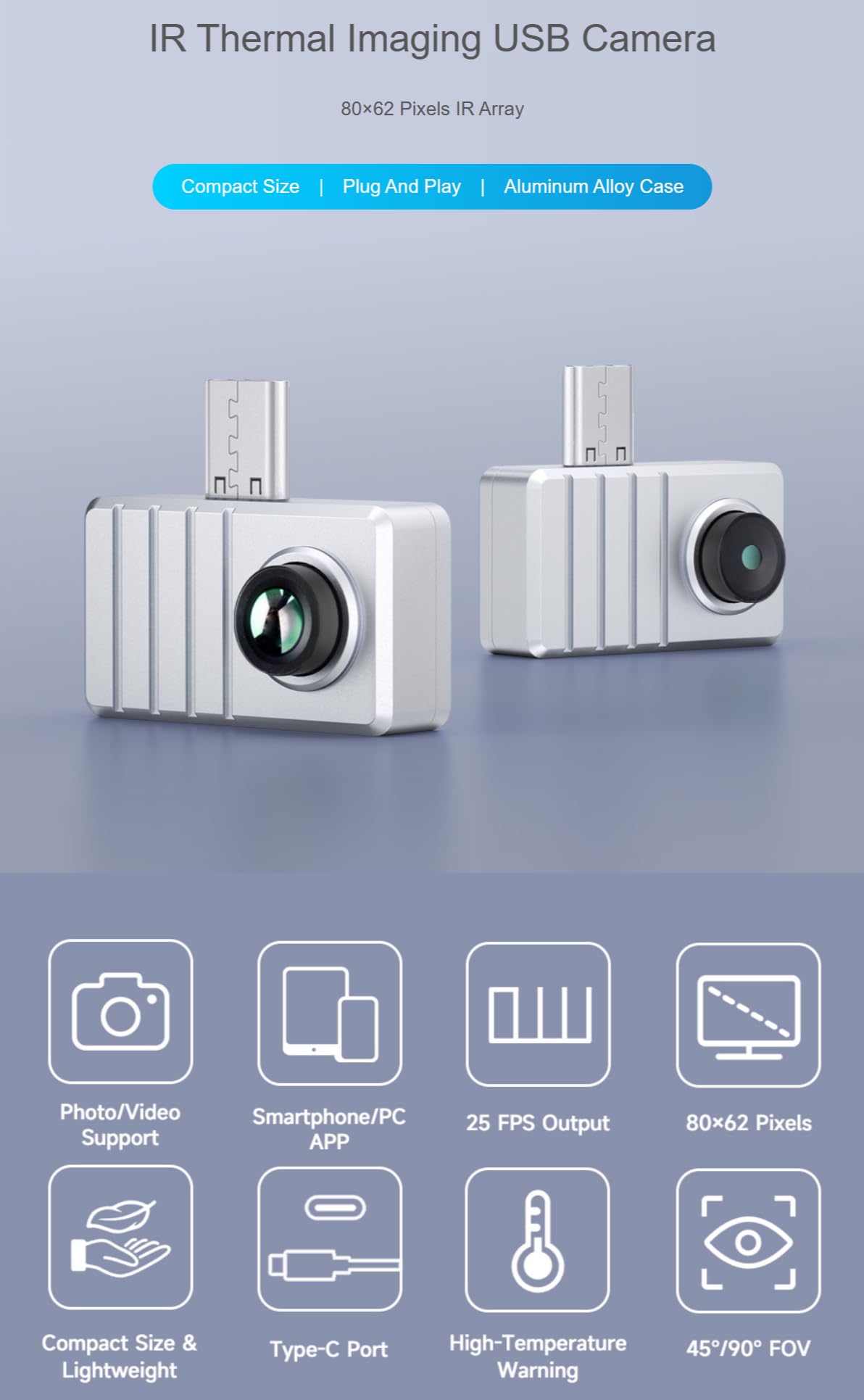

Overview

Introduction

This product is a far-infrared thermal imaging sensor that uses a hybrid technology of microbolometer and thermopile pixels. It has an 80 × 62 pixel focal array and can detect the infrared radiation energy distribution of objects in the lens field of view. After quantization processing, the surface temperature distribution of objects in this field of view can be obtained, and a thermal imaging map can be generated, which is convenient for integration into various industrial or intelligent control applications. Compared to Thermal Camera HAT, this product has optimized internal filter and image processing algorithm, reduced the lens size to 9mm × 9mm, and changed the connector wiring method to FPC wire. Both 45° and 90° field of view models are available for selection.

Feature

Adopt the hybrid technology of microbolometer and thermopile, 80(H)×62(V) array pixels

Continuous operation and thermal imaging video stream due to shutterless design

Noise Equivalent Temperature Difference (NETD) 125mK RMS@1Hz refresh rate, with good noise performance

Up to 25FPS (Max) frame rate thermal imaging video stream output

Online resources and manuals. (Python demo for Raspb Pi, Android/Windows host computer and user manual, etc.)

Parameter

Power Supply: 5V

Operating Current: 20mA@5V

Wavelength Range: 8~14μm

FOV:

56°(D) × 45°(H) × 34°(V) (Regular version)

122°(D) × 90°(H) × 67°(V) (Wide angle version)

Operation Temperature: -40℃～85℃

Target Temperature: -40℃～400℃

Measure Accuracy: ±2℃

Refresh Rate: 25 FPS(Max)

Dimensions:

Thermal Camera HAT (B): 65.0mm × 30.5mm

Thermal USB Camera: NC

Noise Equivalent Temperature Difference: 125mK

ProductSiteLaunchDate : 2024-10-20T13:52:14.677Z
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 43191600
