Specification
AgeRangeDescription : adult
Brand : Fafeicy
BulletPoint : Color: 10pcs
BulletPoint1 : [ Materials] Built with pcb material, the voltage conversion parts offer high density, assemblability, and testability for reliable performance.
BulletPoint2 : [Temperature Range] The thermistor to voltage module can accurately measure temperatures from -40 to +150℃, ensuring precise readings in diverse environments.
BulletPoint3 : [Wide Voltage Range] The converter voltage module has an input voltage range of 9v to 24v and an output voltage range of 0v to 5v or 0v to 10v, providing flexibility for different applications.
BulletPoint4 : [Portable and Convenient] This voltage conversion module is compact and lightweight, allowing for easy transportation in your pocket for on-the-go use.
BulletPoint5 : [Wide Range of Applications] The linear thermistor voltage converter module is suitable for remote data acquisition and control equipment, making it versatile for various settings.
Color : One Color
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : STEM, Robotics, Programming, Problem-Solving Skills
ExternallyAssignedProductIdentifier : 6114876444173
IsAssemblyRequired : 1

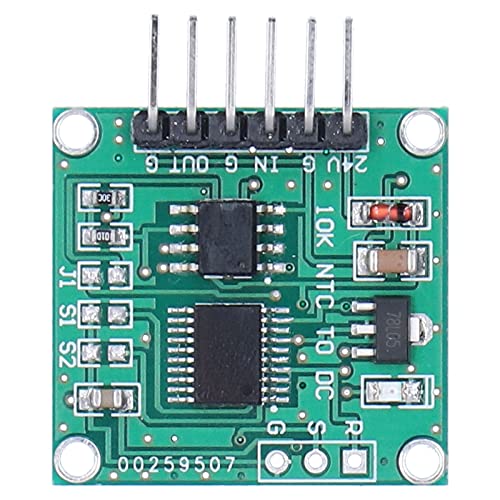

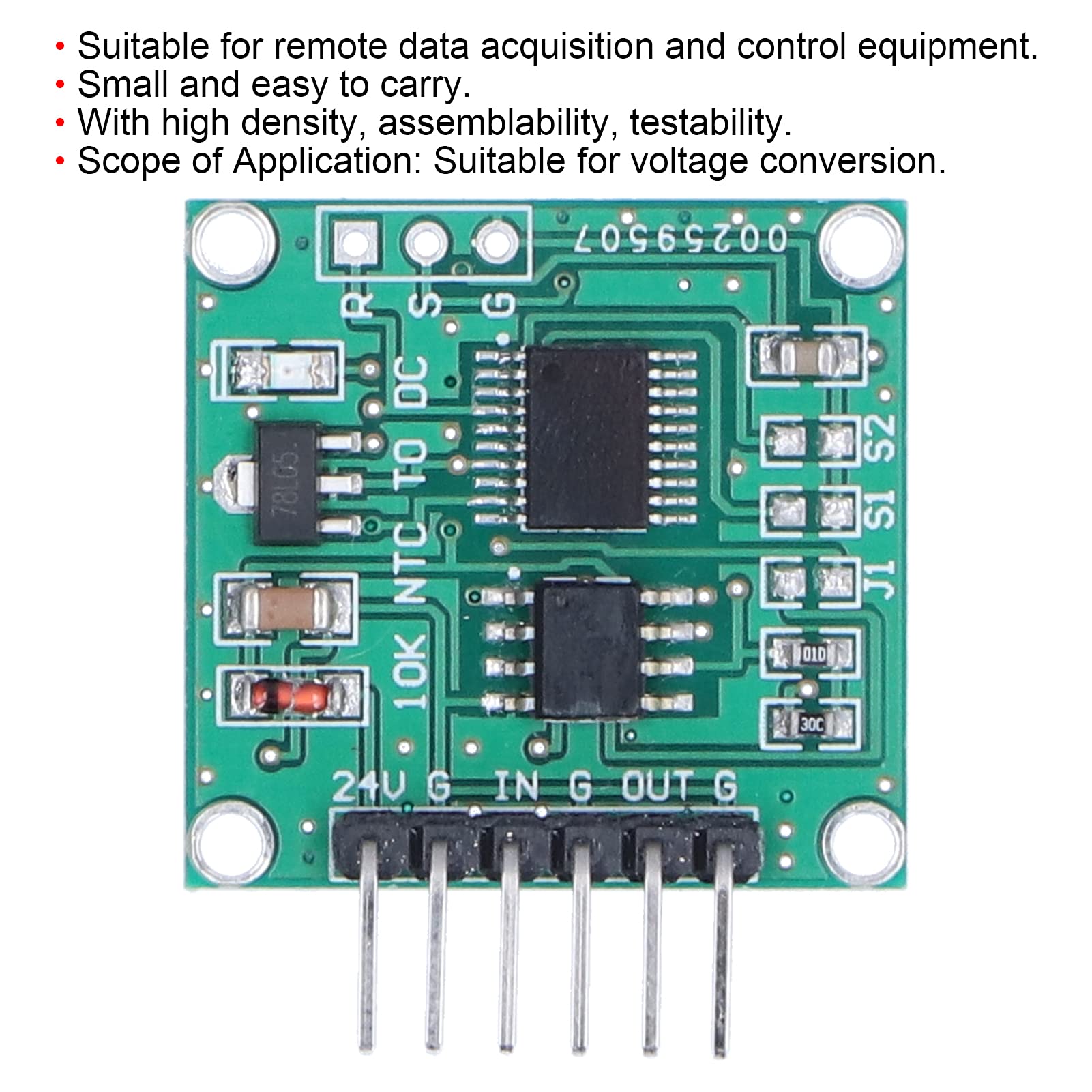

ItemName : Voltage Converter Module, Linear Conversion Thermistor to Voltage Module, Testing Range -40 to +150℃
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : thermistors
Manufacturer : Fafeicy
Material : Paper
ModelName : Fafeicyzxu8vm3dfa
ModelNumber : Fafeicyzxu8vm3dfa
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Fafeicyzxu8vm3dfa
ProductDescription : Spec:

Item Type: Voltage Converter Module
Material: PCB
Model: 10K
Module Parameters
Working Voltage: 9V ~ 24V
Input : 10K Thermal (b Value 3435k)
Output Voltage: 0.00V ～ 5.00V/0.00V ～ 10.00V
Output Mode: Pad on the Circuit Board: Open Circuit (output 0.00v ~ 5.00v); Short Circuit (output 0.00V~ 10.00V), the Default is Open Circuit.
Size: (length) 26mm x (width) 23mm x (height) 10mm
24v: Power Supply Positive Port (9V ~ 24V).
G: Power Ground Interface.
In: the Positive Interface of the Thermal .
G: the Negative Terminal of the Thermal .
Out: Output Interface (0.00V ~ 5.00V/0.00V ~ 10.00V).
G: Power Ground Interface.
Output (0.00V ～ 5.00V) Resolution: 0.0263157v/℃ (volt/celsius)
Output (0.00V ～ 10.00V) Resolution: 0.0526315v/℃ (volt/celsius)


Package List:
1 x Voltage Converter Module

Note:
Note: When the output is 0.00V ~ 10.00V, the power supply voltage must be 15V. Calculate the measured temperature equation: (output voltage (V)/resolution) ‑40℃ = measured temperature (℃).

ProductSiteLaunchDate : 2025-04-15T17:32:30.991Z
Size : 1 PCS
SupplierDeclaredDgHzRegulation : not_applicable
TargetGender : unisex
Theme : Robotics
UnitCount : 1
UnspscCode : 32101600
