Specification
Brand : Generic
BulletPoint1 : With iron‑based/non‑iron‑based automatic dual mode, two‑way rotating screen, self‑calibration function.
BulletPoint2 : Human‑oriented interface with backlight LCD display, user can set the parameters visually before using it. And easy to store, recall or delete the readings.
BulletPoint3 : The measurable coating layer includes the thickness of the non‑magnetic coating layer on the surface of the magnetic material and the thickness of the nonconductive coating layer on the non‑magnetic metal surface.
BulletPoint4 : This coating thickness meter is suitable for laboratory, workshop, paint shops, automobile, shipbuilding, aircraft industries, etc.
BulletPoint5 : The measuring range of this paint thickness gauge is 0~1700um, can store maximum 30 groups data.
Color : Hfg19
ExternallyAssignedProductIdentifier : 7642283014003
IncludedComponents : No

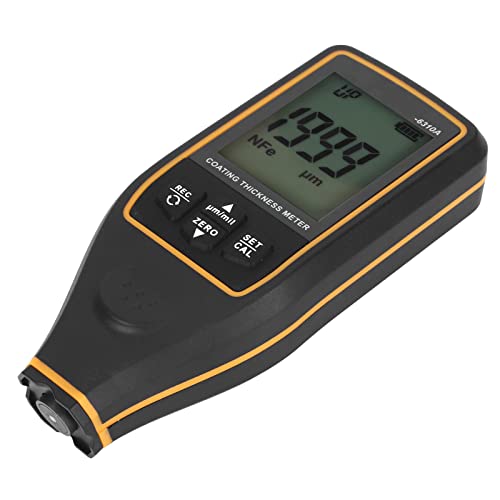

ItemName : Digital Thickness Tester, Backlight LCD Display Coating Thickness Gauge, for Paint Shops Workshop
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 21 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : thickness-gauges
Manufacturer : Generic
Material : ABS
MeasurementAccuracy : 0.1mm
ModelNumber : Genericvu6185gkbd
NumberOfItems : 1
PartNumber : Genericvu6185gkbd
ProductDescription : 1. The measuring range of this paint thickness gauge is 0~1700um, can store maximum 30 groups data.
2. Human‑oriented interface with backlight LCD display, user can set the parameters visually before using it. And easy to store, recall or delete the readings.
3. This coating thickness meter is suitable for laboratory, workshop, paint shops, automobile, shipbuilding, aircraft industries, etc.
4. With iron‑based/non‑iron‑based automatic dual mode, two‑way rotating screen, self‑calibration function.
5. The measurable coating layer includes the thickness of the non‑magnetic coating layer on the surface of the magnetic material and the thickness of the nonconductive coating layer on the non‑magnetic metal surface.

Specification:
Condition: 100% Brand New
Item Type: Coating Thickness Gauge
Material: Plastic + Electron
Color: As shown in the picture
Model: SW-6310A
Measuring Range: 0-1700 μm
Resolution: 0.1μm at (0-99.9um); 1μm at (100-1700um)
Indication Error:
±(2+2%xH)μm at (0-500um)
±(2.5%xH)μm at (500-1700um)
Minimum Measurement Area: 25x25mm / 1.0x1.0in
Minimum Curvature: Convex 5mm; concave 30mm
Minimum Substrate Thickness Degree: Magnetic 0.2mm; non-magnetic 0.05mm
Display: 2.0 inch segment codes screen
Data Storage: 30 records
Data Export: None
Live Voice Broadcast: None
Histogram Data Analysis: none

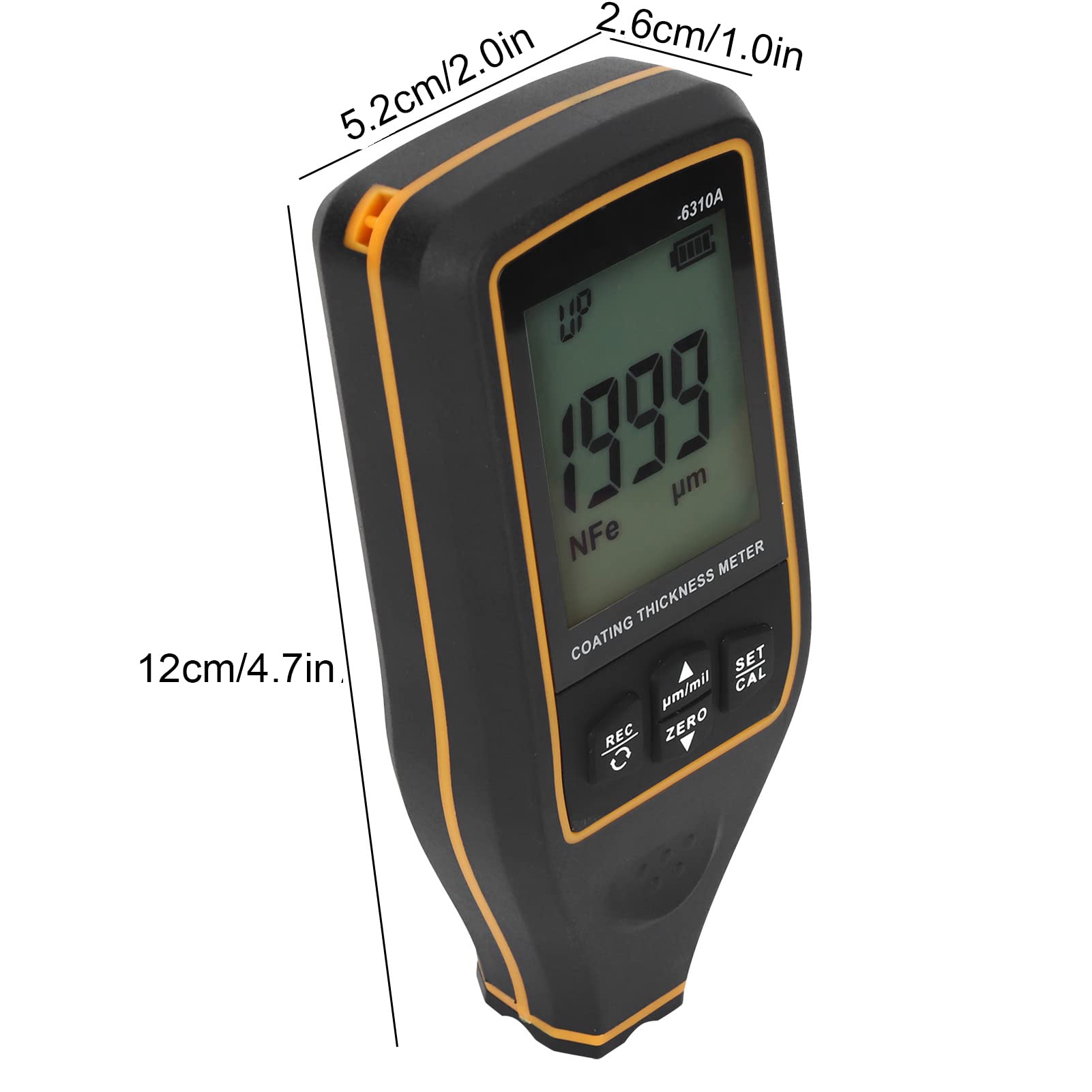

Size: Approx.12x2.6x5.2cm / 4.7x1.0x2.0in
Battery: 2 x AAA battery(Not included)
Weight: Approx.478g/16.9oz
Application: Testing the coating thickness of items in laboratories, home improvement tools, workshops, etc.

Package List:
1 x Coating Thickness Gauge(Battery Not Included)
1 x Lanyard
1 x Instruction Manual
3 x Calibration Sheet
1 x Tool Box

Notice:
1. Please allow 1‑2cm error due to manual measurement. Thanks for your understanding.
2.
ProductSiteLaunchDate : 2024-07-16T14:05:10.868Z
Size : EM2271A
UnitCount : 1
