Specification
Brand : GYZOUKA
BulletPoint1 : [ Shaped Cross Section] Made from high-strength, high-accuracy -shaped cross-section steel wire, these thread inserts are also known as threaded sheaths, stainless steel threaded sleeves, or wire sleeves. they represent a new type of female threaded fastener.
BulletPoint2 : [Improved Thread Strength] These thread inserts significantly enhance thread strength when applied to low-strength engineering materials such as aluminum alloy, zinc alloy, copper, plastic, and engineering plastics. ideal for demanding industrial environments.
BulletPoint3 : [Cost Effective Repair Solution] When thread errors or damaged female threaded holes occur, these thread inserts provide a cost-effective repair method. easily restore the functionality of your threaded holes without the need for expensive replacements.
BulletPoint4 : [Metric and Inch Thread Conversion] These thread inserts are versatile and can be used to convert between metric and inch thread holes. this feature makes them incredibly convenient and fast for various industrial applications.
BulletPoint5 : [High Strength Thread Inserts] These stainless steel thread inserts are designed to create high-strength, and high-accuracy standard female threads in aluminum alloy and other materials. for enhancing the durability and precision of your threaded connections.

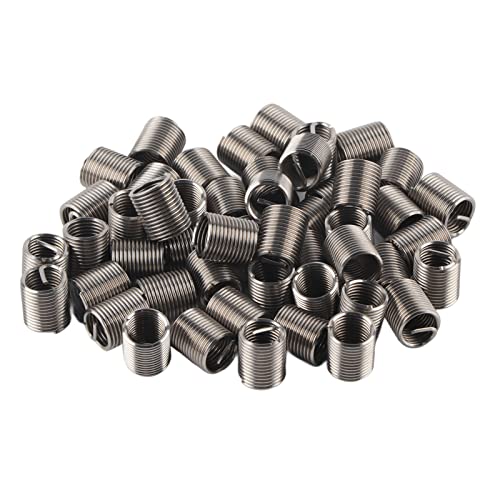

ItemName : 50Pcs Wire Inserts Screws Sleeve M10x1.25 Male Female Thread Inserts Stainless Steel Reducing Nut Repair Tool (2D)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemTypeKeyword : thread-locking-inserts
Manufacturer : GYZOUKA
ModelNumber : GYZOUKAm6k4bdw0uh-13
PartNumber : GYZOUKAm6k4bdw0uh-13
ProductDescription : Specification:
Item Type: Thread Inserts
Material: SUS304
Model: M10x1.25
Thread Specification: M10x1.25 (mm)
Turn Number: 13.3 turns
Outside Diameter Before Installation: Approx. 12 ~ 15.5mm / 0.5 ~ 0.6in
Diameter of Drilling Drill Bit for Installation: Approx. 10.3mm / 0.4in
1D/1.5D/2D/2.5D/3D:
Length After Installation: Approx. 10mm / 0.4in
15mm / 0.6in
20mm / 0.8in
25mm / 1in
30mm / 1.2in
Thread Protective Sleeve Model Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation.How to Use:
1. Drilling
Use the drill bit of the size listed in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drill hole must be blown out with compressed air. After drilling, the counterbore should not exceed the depth of 0.4 pitch. Too large counterbore is not conducive to the screwing of the wire thread insert.
2. Tapping
Use special taps for wire thread inserts to tap. The depth of the tapping must exceed the installation length of the thread inserts. After tapping, use a compressed air spray to blow out the debris. When the thread accuracy is high, check the tapped bottom hole with a special bottom hole plug for wire thread inserts.
.....

PackageList:
50 x Thread Inserts
ProductSiteLaunchDate : 2025-04-21T12:26:04.917Z
Size : 2D
UnspscCode : 31161500
