Specification
Brand : Culnflun
BulletPoint1 : [HIGH-STRENGTH THREAD INSERTS] These inserts create resistant female threads in aluminum and other materials for increased strength and wear drag
BulletPoint2 : [COST-EFFECTIVE REPAIR] Easily repair damaged or incorrect threaded holes with these thread inserts without expensive replacements
BulletPoint3 : [CONVENIENT THREAD CONVERSION] Convert between metric and inch thread holes quickly and efficiently with these versatile inserts
BulletPoint4 : [PREMIUM QUALITY MATERIAL] Made of high-strength diamond-shaped steel wire for precise and accurate threading, enhancing thread strength and wear drag
BulletPoint5 : [VERSATILE APPLICATION] Ideal for use on low-strength engineering materials like aluminum, zinc alloy, copper, and plastics to greatly improve thread durability
Color : Blue
DriveSystem : Slotted
ExteriorFinish : Silver
ExternallyAssignedProductIdentifier : 9182438288197
ExternallyAssignedProductIdentifier1 : 0788384122593
ExternallyAssignedProductIdentifier2 : 788384122593
FinishType : Stainless Steel
GpsrSafetyAttestation : 1
GradeRating : industrial

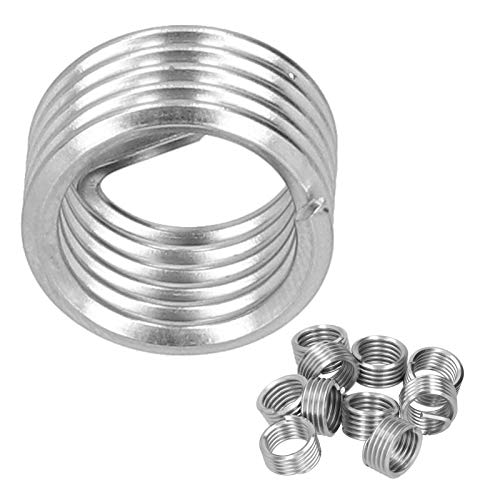

ItemName : Culnflun Thread Inserts, 10Pcs Male Female Repair Tool, Stainless Steel Wire Fastener M18x2.5 for Aluminum Alloy Engineering Materials (1D)
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 7 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : thread-locking-inserts
Manufacturer : Culnflun
Material : steel
MeasurementSystem1 : metric
MeasurementSystem2 : inch
MetalType : Stainless Steel
MetalType1 : Stainless Steel
MetalType2 : Copper
MetalType3 : Alloy Steel
ModelNumber : Culnflunygqf5wm6xr-11
NumberOfItems : 1
NumberOfPieces : 50
PartNumber : Culnflunygqf5wm6xr-11
PowerSourceType : ac
ProductDescription : Item Type: Thread Inserts
Material: SUS304
Model: M18x2.5
Thread Specification: M18x2.5 (mm)
Outside Diameter Before Installation: Approx. 21.4 ~ 22mm / 0.8 ~ 0.9in
Diameter of Drilling Drill Bit for Installation: Approx. 18.6mm / 0.7in1D/1.5D/2D/2.5D/3D:
Length After Installation: Approx. 18mm / 0.7in
27mm / 1.1in
36mm / 1.4in
45mm / 1.8in
54mm / 2.1in
Number of Turns Before Installation: 5.6/9/12.3/15.7/19
Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation.
How to Use：
1. Drilling
Use the drill bit of the size listed in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drill hole must be blown out with compressed air. After drilling, the counterbore should not exceed the depth of 0.4 pitch. Too large counterbore is not conducive to the screwing of the wire thread insert.
2. Tapping
Use special taps for wire thread inserts to tap. The depth of the tapping must exceed the installation length of the thread inserts. After tapping, use a compressed air spray gun to blow out the debris. When the thread accuracy is high, check the tapped bottom hole with a special bottom hole plug gauge for wire thread inserts.
3. Installation
Put the wire screw sleeve into the installation wrench (figure 5 on the right), insert the wire screw sleeve installation tail handle into the guide rod groove of the installation wrench, and turn the handle of the installation wrench to screw the wire screw sleeve into the screw hole.

Package List：
10 x Thread Inserts

ProductSiteLaunchDate : 2024-12-24T12:27:43.710Z
Size : 1D
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 31161700
