Specification
Brand : GOTOTOP
BulletPoint1 : [High-strength Female Threads] Form , wear-resistant female threads in aluminum and other materials with ease.
BulletPoint2 : [ Steel Construction] Made of high-strength -shaped -section steel wire for longevity and reliability.
BulletPoint3 : [Improved Thread Strength] Enhance thread strength and wear in low-strength engineering materials like aluminum and plastics.
BulletPoint4 : [Metric & Inch Compatible] Convert between metric and inch thread holes quickly and conveniently for various applications.
BulletPoint5 : [Cost-effective Repair] Easily repair damaged or incorrect female threads economically with threaded inserts.
Color : One Color
ExteriorFinish : Aluminum
ExternallyAssignedProductIdentifier : 9088955075688

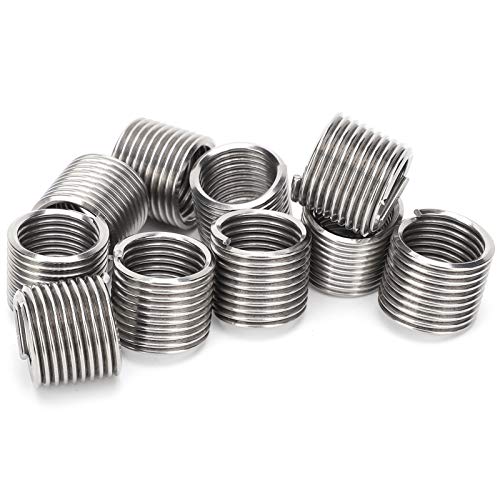

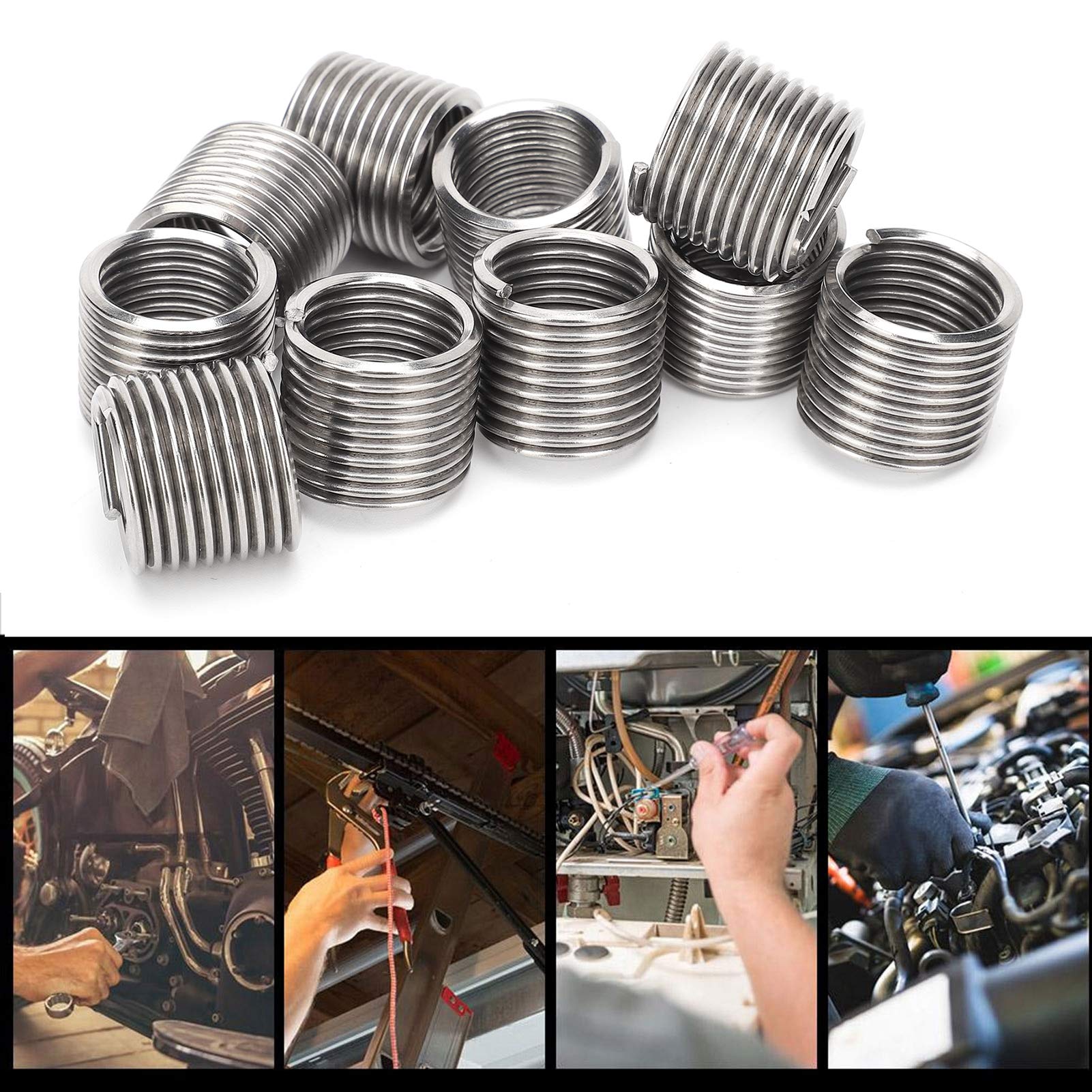

ItemName : High Strength Thread Inserts Repair Tool Fastener M16x2x1.5D SUS304 Stainless Steel for Metalworking
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 7 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : thread-locking-inserts
Manufacturer : GOTOTOP
Material : Stainless Steel
MetalType : Stainless Steel
MetalType1 : Stainless Steel
MetalType2 : Aluminum
MetalType3 : Alloy Steel
MetalType4 : Magnesium
ModelName : Gototop24nvitz8hy
ModelNumber : GOTOTOP24nvitz8hy
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : GOTOTOP24nvitz8hy
ProductDescription : Spec:

Item Type: Thread Inserts
Material: SUS304
Model: M16x2x1.5D
Thread Specification: M16x2 (mm)
Length After Installation: Approx. 24mm / 0.9in
Number of Turns Before Installation: 10
Outside Diameter Before Installation: Approx. 18.8 ~ 19.4mm / 0.7 ~ 0.8in
Diameter of Drilling Drill Bit for Installation: Approx. 16.5mm / 0.6in
Thread Protective Sleeve Model Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation.

How to Use:
1. Drilling
Use the drill bit of the size listed in the parameter table of the wire thread insert to drill the hole. Be careful not to drill the hole into a cone shape. The chips generated by the drill hole must be blown out with compressed air. After drilling, the counterbore should not exceed the depth of 0.4 pitch. Too large counterbore is not conducive to the screwing of the wire thread insert.
2. Tapping
Use special taps for wire thread inserts to tap. The depth of the tapping must exceed the installation length of the thread inserts. After tapping, use a compressed air spray to blow out the debris. When the thread accuracy is high, check the tapped bottom hole with a special bottom hole plug for wire thread inserts.

Note: During the installation and screwing process of the thread inserts, there should be no pressing in the vertical direction to prevent jumping teeth. The correct method is slowly screw in the direction of thread rotation.


Package List:

10 x Thread Inserts


ProductSiteLaunchDate : 2024-04-24T17:02:30.141Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 31161500
