Specification
AutomotiveFitType : universal_fit
Brand : Titan Attachments
BulletPoint1 : COMPATIBLE WITH JOHN DEERE: This Hay Frames Top Pin set fits D120, D160, D170, H120, H130, H140, 120R, 200X, 200CX, 220R, 300X, 300CX, 300E, 300R, 305, 320R, 400X, 400CX, 410, 419, 420, 440, 440R, and 460 series loaders. Bottom pin set fits 500, 510, 512, 520, 521, 540, 541, 542, and 553 series Ag loaders.
BulletPoint2 : REMOVABLE PALLET FORK BLADES AND SPEARS: For your convenience, the hay spears are removable, allowing you to add Class II Pallet Fork Blades to the carriage bars that are already installed on the frame. This will enable you to use the spears, forks, or both at the same time when desired.
BulletPoint3 : IDEAL FOR LIGHTWEIGHT TOWING: Convert your skid steer or tractor into a towing machine with this handy receiver mount. It features a standard 2-inch trailer hitch that lets you tow trailers and other tractor implements without taxing your machines power or lift capacity.
BulletPoint4 : DURABLE CONSTRUCTION: This heavy-duty structural steel frame is powder-coated green. It holds a weight capacity of up to 4,000-pounds, allowing you to tackle even the most demanding jobs while providing rust resistance to the steel from weathering elements.
BulletPoint5 : DIMENSIONS: This 50-inch-long Hay Frame stands 19-inches tall, provides an adjustable fork width from 6 to 48-inches, and features a 2-inch trailer receiver hitch, one main spear sleeve for Conus 2 spears along with a pair of stabilizer spear sleeves welded into the frame. The implement weighs 110-pounds and comes with one 39-inch Conus 2 Hay Bale Spear and two stabilizer spears.
Color : Black
CompatibleWithVehicleType1 : Trailer
CompatibleWithVehicleType2 : Tractor
ExternallyAssignedProductIdentifier1 : 0840009226663
ExternallyAssignedProductIdentifier2 : 840009226663
FinishType : Powder Coated
GpsrSafetyAttestation : 1
IncludedComponents : quick hitch adapter bracket*1，pin*1，bold sleeve*1，O-spring pin*1
ItemName : Titan Attachments Hay Frame Attachment, 39" Hay Bale Spear and Stabilizers, Rated 4,000 LB, Receiver Hitch, Fits John Deere Loaders
ItemPackageDimensions_Height : 30.5054 centimeters
ItemPackageDimensions_Length : 9.906 centimeters
ItemPackageDimensions_Width : 13.3096 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : 3-point-accessories
Manufacturer : Titan Attachments
Material : Alloy Steel
ModelName : 93139A
ModelNumber : 93139A
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPieces : 8
PackageLevel : unit
PartNumber : JDFRLDRECWS-S39C2OEM-(2)S17B
PowerSourceType : hand_powered

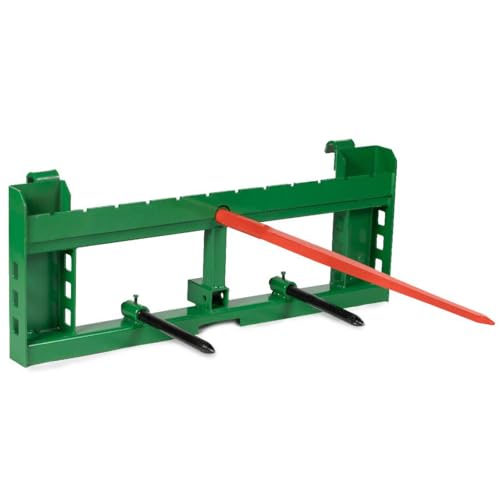

ProductDescription : This Hay Frame Attachment is designed to fit 200, 300, 400, and 500 series John Deere loaders and will handle most lifting and lightweight towing tasks without taxing your machine's power or lift capacity. This durable frame is rated at a 4,000-pound capacity and is crafted with no back guard, providing maximum visibility for optimal fork and spear placement. The frame features a 2-inch receiver hitch, a slotted carriage bar for mounting class 2 pallet fork blades, and Conus 2 sleeves for installing hay bale spears. Whether you are moving something large or small, this sturdy hay frame attachment will do the job.

NOTE: When you order this product, we will need your phone number for the trucking company to schedule delivery. Without your number, there could be a delay.

FEATURES:
- Carriage Bars and Hay Spear Sleeves are already installed
- Accepts Class II Pallet Fork Blades (sold separate)
- Included: One 39-inch Conus 2 Hay Bale Spear
- Included: Pair of 17.5-inch Stabilizer Spears
- Top pin set fits D120, D160, D170, H120, H130, H140, 120R, 200X, 200CX, 220R, 300X, 300CX, 300E, 300R, 305, 320R, 400X, 400CX, 410, 419, 420, 440, 440R, and 460 series loaders
- Bottom pin set fits 500, 510, 512, 520, 521, 540, 541, 542, and 553 series Ag loaders
- Does not fit loaders equipped with the Global/Euro style or universal Skid Steer style mount

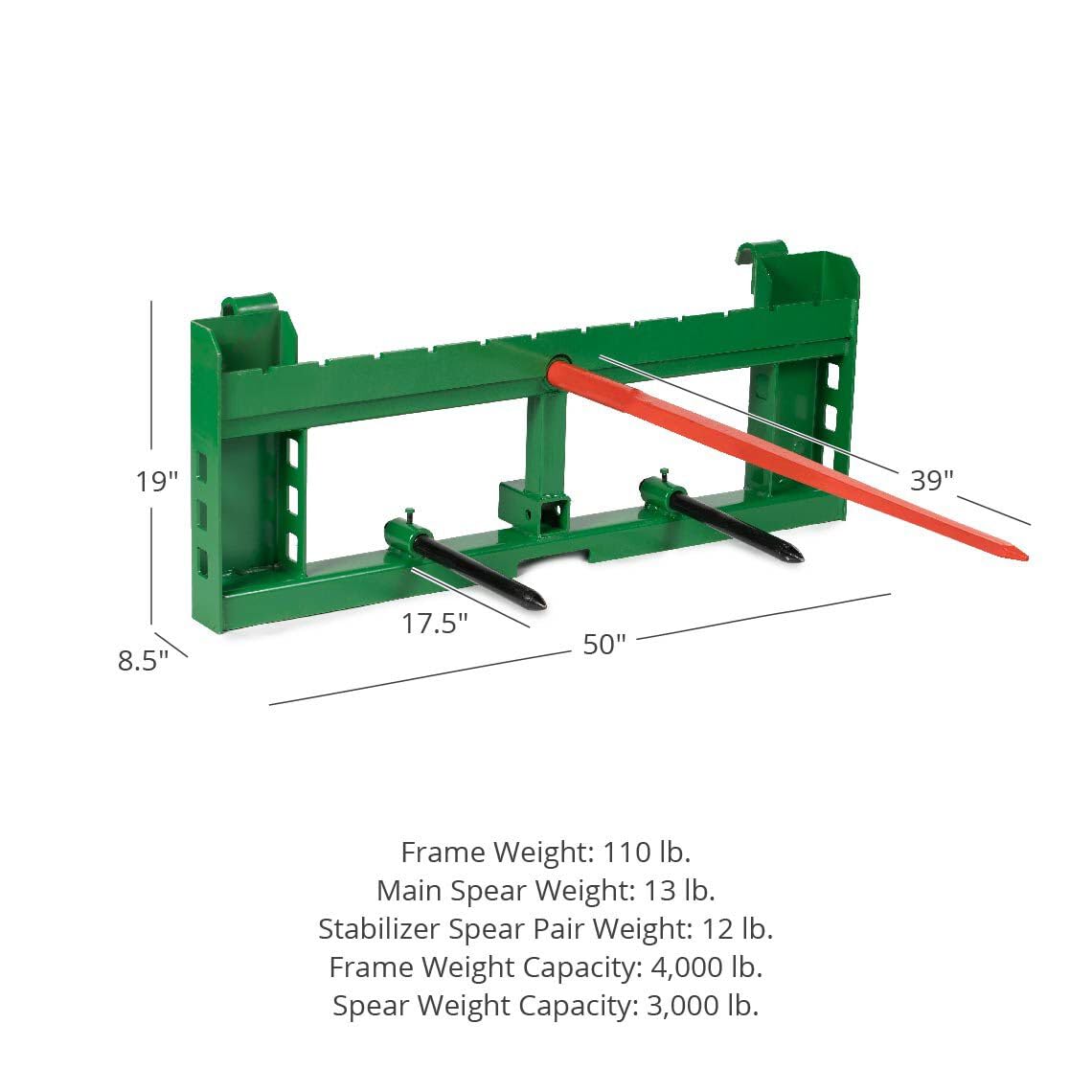

SPECIFICATIONS:
- Overall Height: 19-in.
- Overall Length: 50-in.
- Overall Depth: 8.5-in.
- Main Spear Overall Length: 39-in.
- Main Spear Diameter: 1.75-in. tapered
- Stabilizer Spear Length: 17.5-in.
- Stabilizer Spear Diameter: 1.25-in.
- Fork Width Adjusts: 6-in to 48-in.
- Main Spear Finish: Powder-Coated Red
- Stabilizer Spear Finish: Powder-Coated Black
- Finish: Powder-Coated Green
- Material: Steel
- Frame Weight Capacity: 4,000 lb.
- Spear Weight Capacity: 3,000 lb.
- Frame Weight: 110 lb.
ProductSiteLaunchDate : 2024-06-25T02:02:33.278Z
Size : 49" Hay Spear + Pallet Fork Frame
Style : 1/8 x 3- 1/8 x 1-1/5 inch 8pcs
SupplierDeclaredDgHzRegulation : not_applicable
TowingCapacityMaximum : 4000 pounds
UnitCount : 1
UnspscCode : 24101600
WarrantyDescription : 2 Years Warranty
