Specification
Brand : AOTROY
BulletPoint : Price For: Each Item: Temperature probe Temp. Range (F): 0 Degrees to 392 Degrees Country of Origin (subject to change): United States
BulletPoint1 : Tilt switch sensor measuring range ±15°/±45°/±60°/±180°, maximum absolute accuracy 0.008°, wide voltage input DC 9-36V.
BulletPoint2 : The incline sensor is a small size single-axis/biaxial tilt sensor that uses CAN 2.0A/CAN 2.0B serial communication interface for industrial field control applications.
BulletPoint3 : Angle tilt sensor has a built-in high-precision 24 bit A/D differential converter, which can measure the tilt and pitch angle of the sensor output relative to the horizontal plane through a 5-order filtering algorithm.
BulletPoint4 : The tilt sensor integrates a MEMS tilt unit with a maximum measurement range of ±180° and full scale accuracy of 0.01°, allowing easy measurement of both dual and uniaxial tilt angles.
BulletPoint5 : Industrial tilt sensor, stable and reliable performance, good scalability.
Color : Black
ConnectorType : RF Connector
ExternallyAssignedProductIdentifier1 : 0094705067758
ExternallyAssignedProductIdentifier2 : 094705067758
IncludedComponents : Inclinometer Sensor
ItemDisplayDimensions_Height : 6 inches
ItemDisplayDimensions_Length : 9 inches
ItemDisplayDimensions_Width : 8 inches

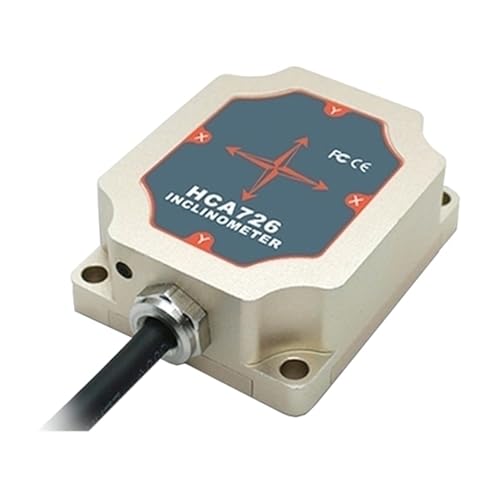

ItemName : Tilt Detection Sensor, ±45° Output Canopen Digital Signal-Axis Inclinometer Railway Locomotive Monitoring Tipping Sensor
ItemPackageDimensions_Height : 0.4 inches
ItemPackageDimensions_Length : 3.54 inches
ItemPackageDimensions_Width : 4.72 inches
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-tilt-sensors
Manufacturer : AOTROY
Material : Copper
MeasurementAccuracy : 0.05°
MeasuringRange : -90° to 90°
ModelNumber : SCA126M-MB
MountingType : Flange Mount
NumberOfItems : 1
OutputType : Digital
PackageLevel : unit
PartNumber : HCA716--2
PowerSourceType : Battery Powered
ProductDescription : Model : HCA716/HCA726 Measuring Axis : X/XY (single/Biaxial) Measuring Range* ：±15°/±45°/±60°/±180° Resolution ：0.001°/0.001°/0.003°/0.005° Absolute Accuracy :±0.008°/RMS±0.01°/RMS±0.01°/RMS±0.01°RMS,@25℃ Long Term Stability :＜0.02°/＜0.02°/＜0.02°＜/0.02° Zero Temperature Coefficient :±0.0005°/℃±0.0005°/℃±0.0005°/℃±0.0005°/℃,-40~85℃ Sensitivity Temperature Coefficient :≤0.01%/℃/≤0.01%/℃/≤0.01%/℃/≤0.01%/℃,-40~85℃ Power On Time : 0.5s Response Time :0.02s Response Frequency :＞20Hz Output Signal : CAN 2.0A/ CAN 2.0B/ RS485 Electromagnetic Compatibility ：According to EN61000 and GBT17626 MTBF ：≥50000 hours/times Insulation Resistance ：≥100MΩ Shockproof ：100g@11ms, 3 Times/Axis (half sinusoid)) Anti-Vibration ：10grms, 10～1000Hz Protection Grade ：IP67 High Seismic Performance ：＞100g Cables ：Standard 1m length, wearproof, grease proofing, wide temperature, shielded cables 4*0.4mm2 Dimension ：56*46*20.5mm Weight ：90g (without cable)
ProductSiteLaunchDate : 2024-05-11T06:52:10.600Z
ResponseTime : 0.2 seconds
Size : Single Axis,±45°
SpecificUsesForProduct : Industrial
Style : Output Signal:CAN 2.0A
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 46171600
UpperTemperatureRating : 85 degrees_celsius
